ROQ OVAL RUN

SIMPLE & EFFICIENT

Technical Specs

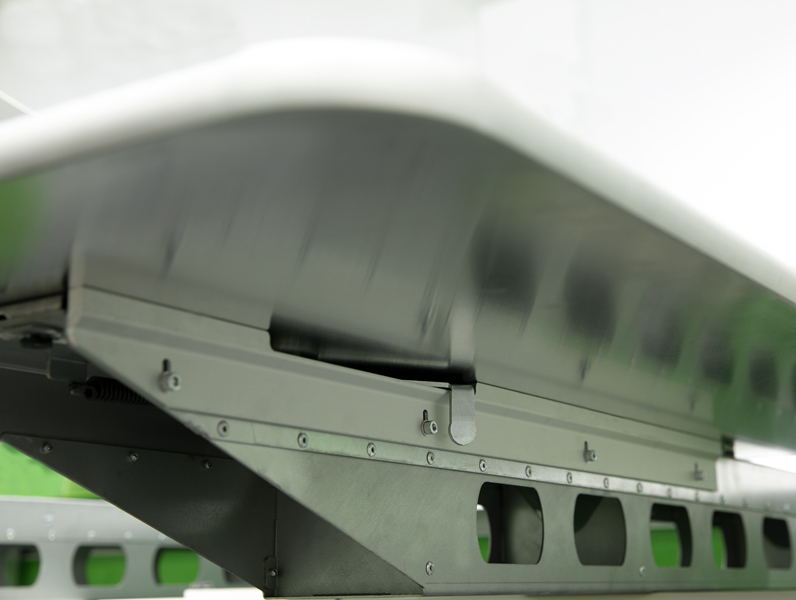

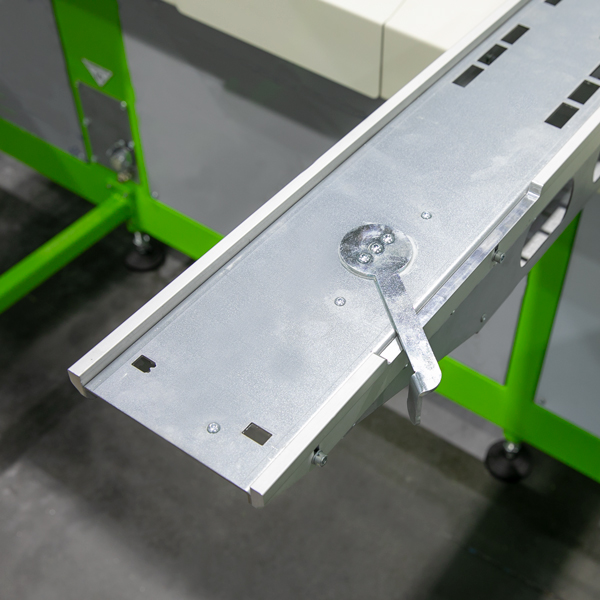

Aluminum honeycomb pallets;
Squeegees with electric movement with AC variator;

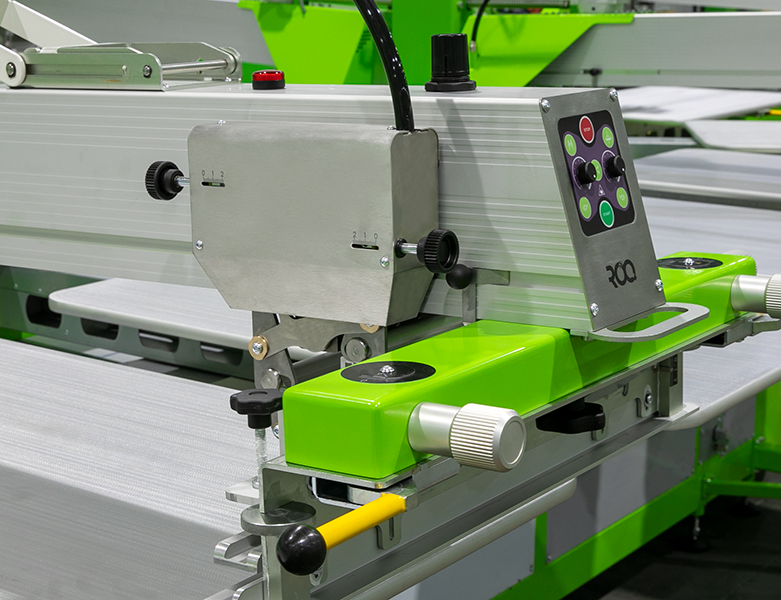

Independent control panel on all print heads;
Choice of pneumatic screen holder: ”U” clamp or pin system;
Print heads independent elevation;
AC servo-motor rotation system;
Print heads with high-lift position for quick and easy screen cleaning;

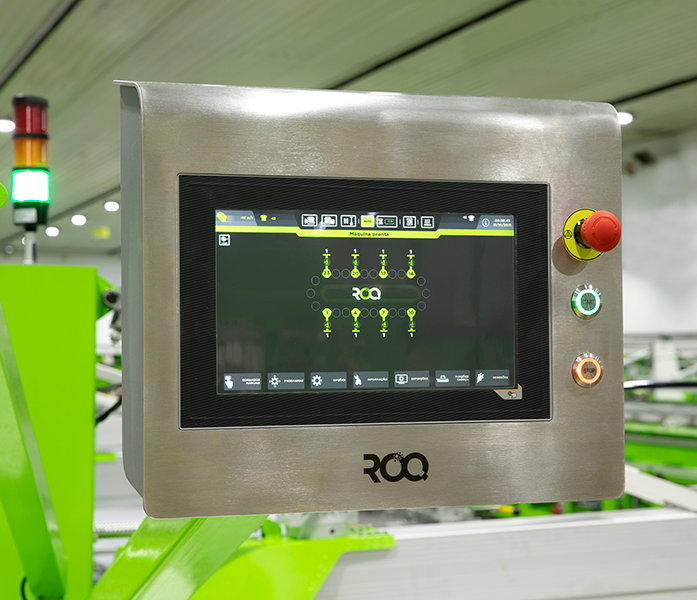

Central control panel with polychromatic LCD touch screen (10 inches);
Micro registration screen system with vernier scale;
Individual controls for managing print and flood speed, height, angle of the squeegees and stroke length;
Placement of the Flash Cure units under the print head.
Description

ROQ's portfolio of oval screen-printing machines is solid, with it's two platforms, the Oval Pro and the Oval Evolution. Each of these is a leader in its market segment, but a new one is now available. There is a need for an industrial oval screen-printing machine that is budget-friendly and at the same time  possesses  the traditional print quality that ROQ has always been known for. This came as a challenge for ROQ's engineering department.

There are 35 years of engineering combined into this oval machine. From this amass of experience, the ROQ Run was created.

To create a professional automatic oval screen-printing machine, capable of creating perfect prints, with a friendly budget the philosophy of construction needed to be different. The methods of construction are the same, the materials are the same, the functions are the same. There is the main difference. The other models allow for any print head configuration. This is not possible on the ROQ Oval Run. The configuration is fixed. After each print head, there are 2 open spaces that can be used for drying, foil, or flock. This trait of the ROQ Oval RUN allows for the price to be extremely competitive without compromising the quality of the machine or the work. The legendary registration from ROQ is present in the Oval Run.

In the year 2000 ROQ was able to reinvent the automatic oval screen-printing machine. The ROQprint Oval RUN outputs 750 pieces per hour and is available for any part of the world.

Ask for more information.

ROQ OVAL RUN

P20 XL+

P26 XL+

P32 XL+

P38 XL+

P44 XL+

P50 XL+

P56 XL+

P62 XL+

number of colors (max.)

6

8

10

12

14

16

18

20

number of pallets

20

26

32

38

44

50

56

62

number of flash cure connection units (optional)

6

8

10

12

14

16

18

20

maximum production (pieces/h) *

750

compr. air consumption (l/min. 7 bar) **

75 l/min - 2.6 cfm + number of each printhead

maximum consumption (kVA) ***



4.5

5.5

6

7

10

10.5

11

12

total length (mm/feet)

XL

9048 / 29.7’

11526 / 97.8’

14005 / 45.9’

16489 / 54.1’

18961 / 62.2’

21440 / 70.9’

23918 / 78.5’

26396 / 86.6’

XL+

9258 / 30.7’

11736/ 38.5’

14215 / 46.6’

16693 / 54.8’

19171 / 62.9’

21650 / 71’

24128 / 79.2’

26606 / 87.3’

total height (mm/feet)

XL 2050 / 6.7’

XL+

2050 / 6.7’

total width (mm/feet)

XL

3700 / 12.1’

XL+

3900 / 12.8’

machine weight (kg/pounds)



XL

2651 / 5844

3272 / 7213

3906 / 8611

4581 / 9989

5220 / 11508

5844 / 12883

6479 / 1423

7103 / 15659

XL+

2651 / 5844

3306 / 7288

4004 / 8825

4636 / 10218

5277 / 11634

5911 / 13029

6551 / 14442

7240 / 15959

* One squeegee with flooding.
** Consumption of each printhead: 40l/min - 1,4 cfm in 750/60 =12,5.
*** These values exclude the consumption with flash-curing, they should be calculated separately taking into account the number and model of the flash cure employed on the machine. See flash cure page.
- Power supply: 3x230V, 3x400V+N in 50Hz or 60Hz.
