ROQ LABEL A

The ROQ Label A automatically applies the labels to the garments.
Technical Specs

Automatically apply labels to garments
Labels up to 80 mm wide
Works in conjunction with the ROQFOLD

Description

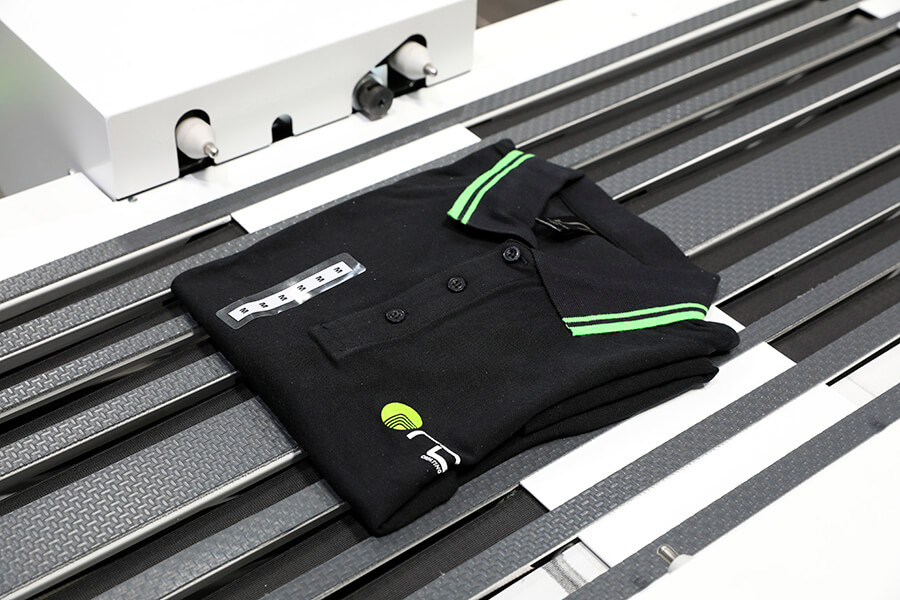

The ROQ Label A directly and automatically applies labels in garments. This machine is designed to work in conjunction with the ROQ Fold, and no operator is needed. Both machines are connected and synchronize speeds so that they work at the same pace.

Positioned in the middle of the ROQ Fold, the ROQ Label A simplifies setup, label loading and positioning. Control of this setup is made in the ROQ Fold control panel.

The ROQ Label A is the perfect solution to apply size labels to garments.

The ROQ Label A uses labels up to 80 mm wide and rolls up to 300 mm outside diameter and 76 mm coil roll diameter.

This module, adds value to the automatic packing process.

ROQ LABEL A

Length – mm (in)

928 (36.5”)

Height – mm (in)

870 (34.3”)

Width – mm (in)

870 (34.3”)

Machine weight – kg (lb)

120 (264.5)

Maximum label width – mm (in)

up to 80 (3.2”) and infinite lenght

Maximum roll and coil roll diameter – mm (in)

roll up to outside 300 (11.8”) and coil roll 76 (3”)

Maximum production – (pieces/h)

the same as ROQFOLD
