ROQ FOLD

ROQ’s folding machine, the ROQ Fold, is a player of quality in the market for automatic textile folding.
Technical Specs

Folds any kind and/or shape such as: T-shirts (with or without sleeves), sweat shirts, polos (long or short sleeve), trousers, skirts, dresses, etc.
Quick, accurate, easy to use, economic, safe and efficient.
Ready to be coupled with ROQ’s automatic packaging line.
Processing speed of 800 pieces/hour.
Only one operator needed in the loading station.

Description

It folds any kind and shape of clothing such as t-shirts, sweatshirts, polos – short or long sleeves – trousers, skirts, dresses, and even flags! It is capable of a production of around 800 pieces/hour.

It needs only one operator to load the pieces. For the rest of the process, it just needs the initial configuration of the lengths of the folds, the type of folds (depending on the dimensions and type of the pieces) and then after this, it becomes an automated process. The machine can run automatically, or the operator can activate the machine by using a pedal. The speed of the machine is defined by the loader so that the work is done properly. The ROQ Fold is fast, extremely accurate, super easy to use, very economical, efficient, and, with very low maintenance, it is extremely durable.

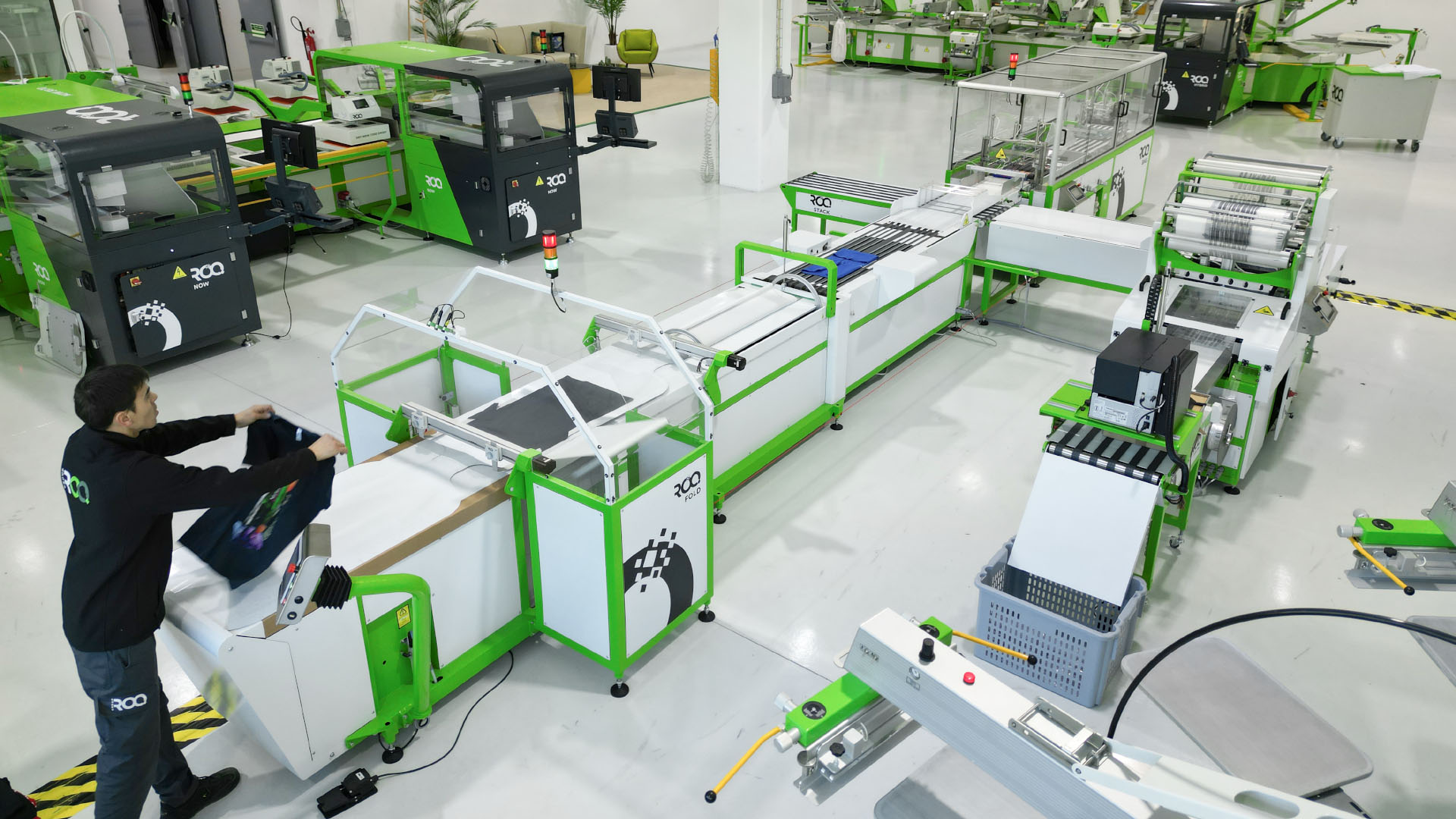

The ROQ Fold is prepared to be coupled to any machine of the ROQ automatic packaging line, which can integrate the ROQ Bag or the ROQ Pack machines. Once the packaging line is complete, just one operator can run the line from the finalized clothing piece until it is properly stacked and sacked.

The ROQ Fold is the perfect solution for 90% of the clothing producers around the world. It does not lose performance, it will save your company a lot of labor hours. By reducing costs, it will make your business a lot more profitable.

ROQ FOLD

F60

Length - mm (in)

6120 (241”)

Height - mm (in)

1970 (77.6”)

Width - mm (in)

1805 (71”)

Machine weight - kg (lb)

910 (2002)

Dimension of the piece for folding

length - mm (in)

400 - 1200 (15.7” - 47.2”)

width - mm (in)

300 - 635 (11.8” - 25”)

Dimension of the folded piece - mm (in)

length - mm (in)

150 - 450 (5.9” - 17.7”)

width - mm (in)

150 - 400 (5.9” - 15.7”)

Maximum consumption - (kVA)

1.5

Compr. air consumption - l/min (cfm)

700*

Maximum production - (pieces/h)

140 (4.94)

* size of a DIN A4 sheet.
- power supply: 220V, 3x220V, 3x400V a 50Hz ou 60Hz.

ROQ FOLD in action
