ROQ Bag — The Bagging Machine

Technical Specs

Garment bagging;
Automatic cover strip removal;
Flap fold over;
Fully automatic
Uses pre-made bags
600 garments per hour

Description

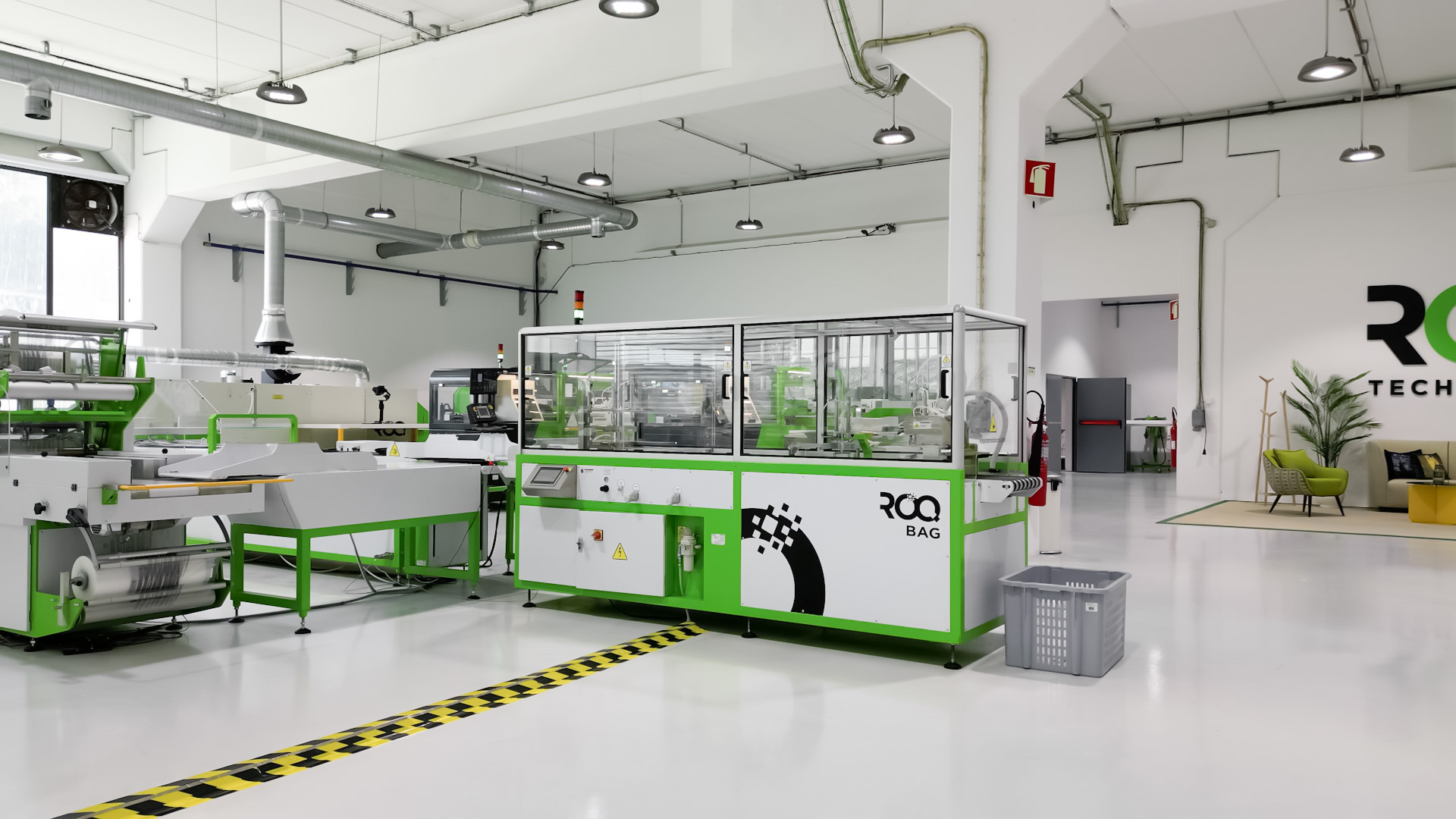

The ROQ Bag is a machine designed to automatically bag all types of woven fabric. This bagging machine uses bags with an auto-sticking flap, or it can tape the flap of the bags.

During the packing process, there is no need for a dedicated operator when working in conjunction with the ROQ Fold. Both machines connect and synchronize speeds so that they work at the same pace. If not, the machine just needs to be supplied.

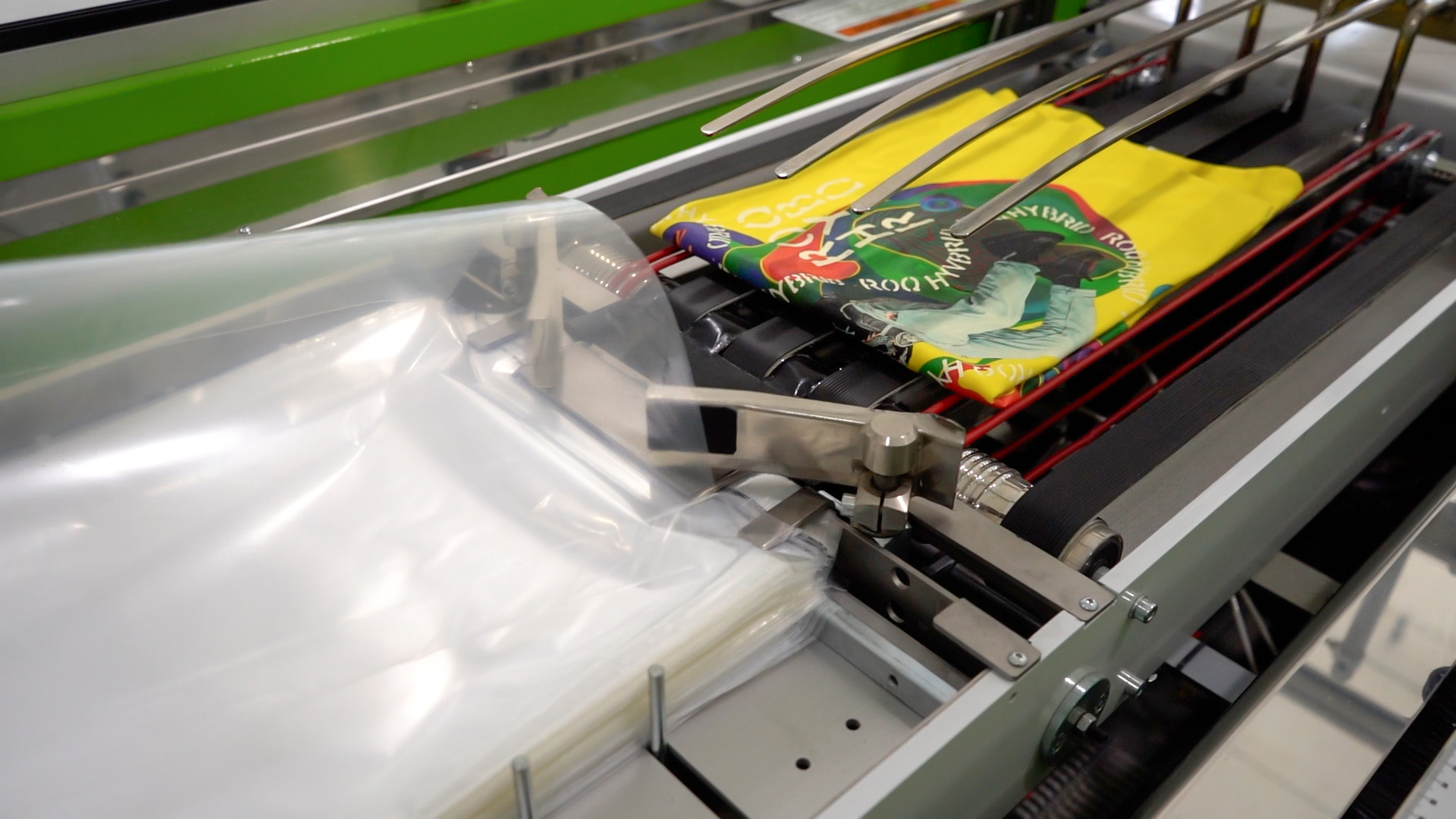

In the case of using bags with an auto-sticking flap, the ROQ Bag removes the protecting tape and automatically folds the flap, giving the final product a consistent look.

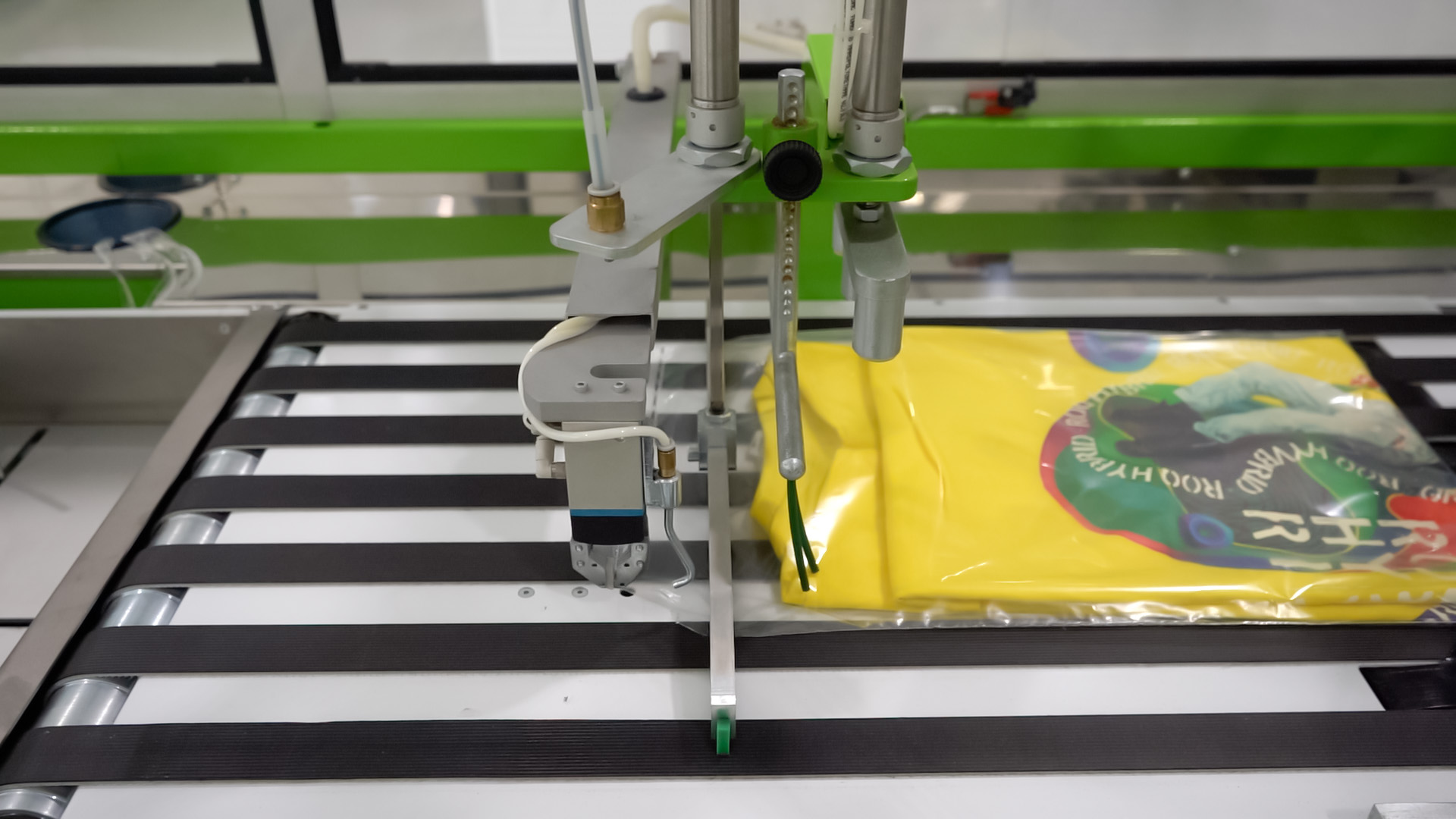

In the case of bags with normal flaps, the ROQ Bag applies one or two tape points that close the bag securely.

The folded piece to be bagged is limited by the following dimensions: 600 by 400 mm and 80 mm height. This is currently the biggest size the machine accepts.

The digital control panel is user-friendly, as the software was developed to be used by anyone.

The ROQ Bag is one of the fastest bagging machines in the market, with a maximum production of 600 garments/hour.

ROQ BAG

B2240

Length - mm (in)

3350 (132”)

Height - mm (in)

1900 (75”)

Width - mm (in)

1150 (45”)

Pieces dimensions - mm (in)

Max.: height x width x length

80(3”) x 370(15”)* x 500(20”)

Minimum width

220 (9”)

Bag dimensions - mm (in)

Max.: width x length

400(16”) x 600(24”)

Minimum width x lenght

220(9”) x 250(10”)

Maximum production (pieces/h)

600**

Power supply ( VAC)

3X400 N+PE

Maximum consumption (kVA)

1.5

Compressed air (bar)

7

Compressed air consumption - l/min (cfm)

250(8.83”)

* With height of 30mm spoons.
** Size of a DIN A4 sheet.

- Power supply: 220V, 3x220V, 3x400V a 50Hz ou 60Hz.
