ROQ PACK

Automatic Packaging Machine

Technical Specs

Designed to pack batches of different types and formats at the same time.
The packaging length is unlimited.
The package is done through a plastic welding system.
Ready to be coupled with ROQ’s automatic packaging line.
- Maximum processing speed of 1200 pieces per hour. When coupled with ROQFOLD it makes an average of 700 pieces per hour.

Description

The ROQ Pack was developed to pack different kinds and sizes of garments.

This automatic packaging machine, conceived by ROQ, works with two large plastic reels (easy to replace). These reels spread the top and bottom of the bag that is welded on the sides and closed using the same welding process. A flap closes the bag, the length is unlimited.

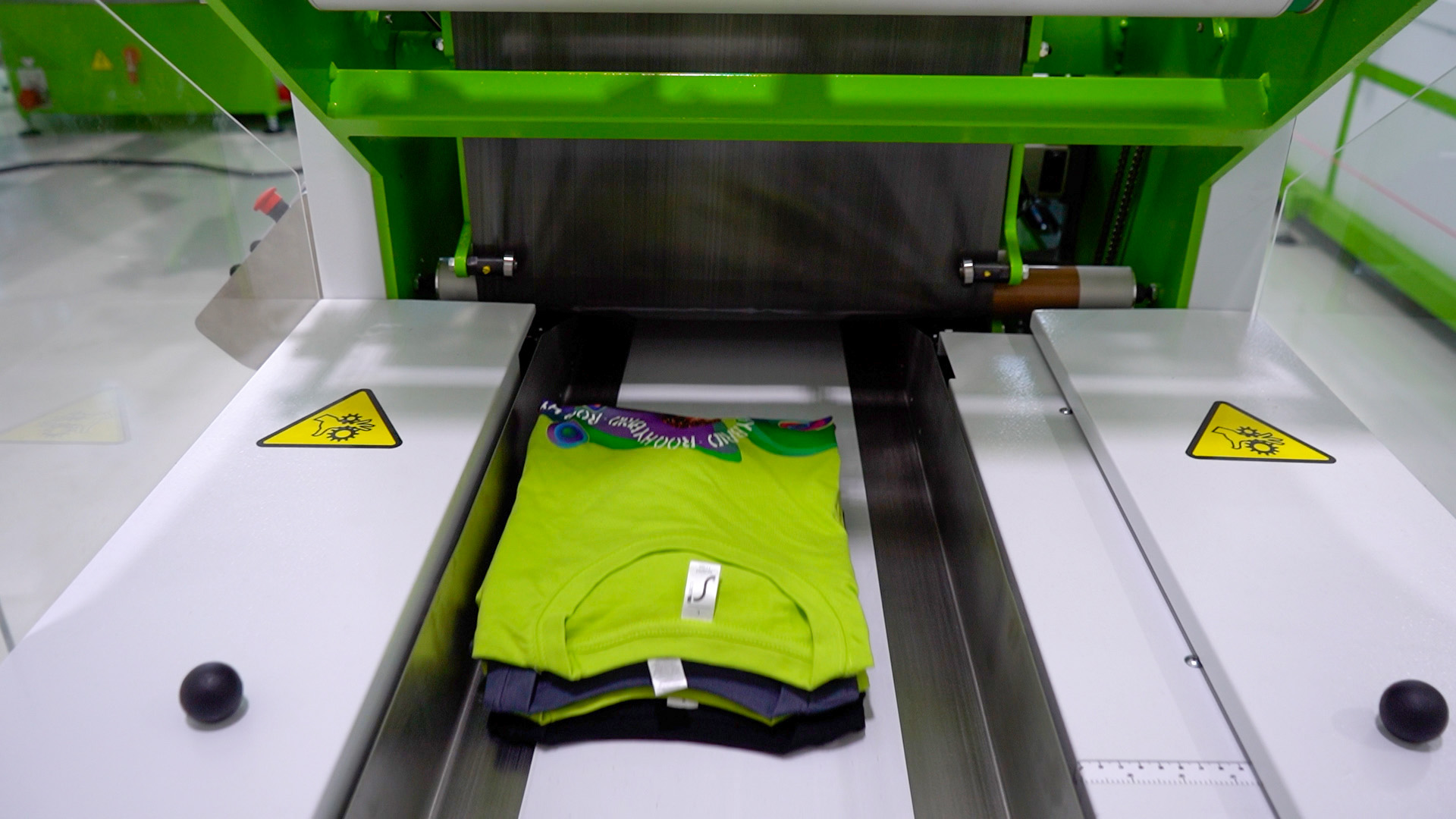

It is designed to pack batches of several pieces of any type or format: t-shirts, sweat-shirts, polos, shirts, trousers, skirts, towels, etc. The pieces need to be loaded into the machine already folded. This part can be optimized by adding a ROQ Fold to your setup.

The ROQ Pack comes equipped with a plastic waste retrieval system and can achieve speeds of around 1200 pieces/hour.

It can be combined with a ROQ Fold in order to create a fully automatic and synchronized packaging and folding line that can easily be controlled through a central console.

ROQ PACK

27-45

Length – mm (in)

2700 (106.3”)

Height – mm (in)

1650 (65”)

Width – mm (in)

1000 (39.4”)

Machine weight – kg (lb)

570 (1254)

Dimension of the piece for packing – mm (in)

270 – 450 (10.6” – 17.7”)

Maximum diameter of the roll – mm (in)

280 (11”)

Maximum consumption – (kVA)

3

Compressed air consumption – L/min (cfm)

80 (2.83)

Maximum production – (packs/h)

1200*

* DIN A4 size

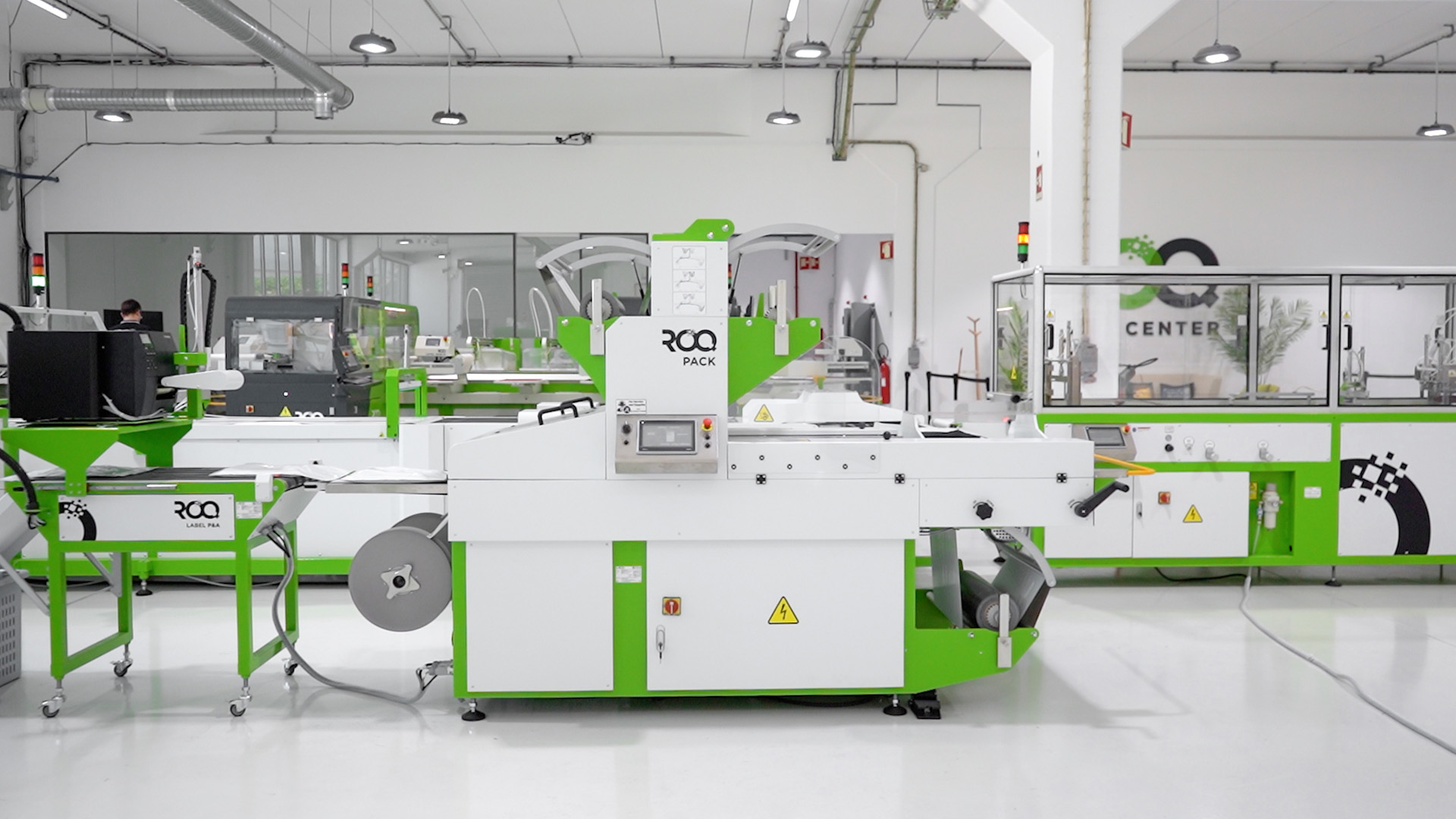

ROQ PACK in action
