ROQ FIT

The ROQ Fit, may be your first auto or the ultimate companion for a bigger press, built to fit, built to print, built to last and built to blast you to the next level in your business. If you’re in a garage, it fits, but it turns your garage into a high end cutting edge t-shirt printing machine. If it's next to your bigger auto, it fits, and it prints so fast it keeps up with the sleeves, tags, and simple prints you don’t want your main press to.

Technical Specs

Easy to use
Uses ROQ Pallets
Versatile

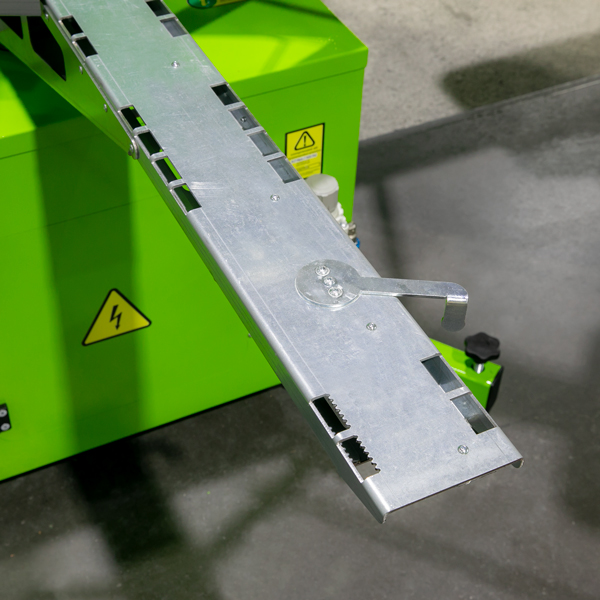

Thinner pallet arms
Compatible with the standard brackets
Allows to print sleeves easily

Description

The ROQ Fit, may be your first auto or the ultimate companion for a bigger press, built to fit, built to print, built to last and built to blast you to the next level in your business. If you’re in a garage, it fits, but it turns your garage into a high end cutting edge t-shirt printing machine. If it's next to your bigger auto, it fits, and it prints so fast it keeps up with the sleeves, tags, and simple prints you don’t want your main press to.

ROQ FIT

P08

Number of colors (max.)

4

Number of pallets

8

Maximum pre-drying connections (optional)

4

Maximum print size (mm/inch)

420 x 440 / 16,5" x 17"

Maximum pallet size (mm/pol)

450 x 700 / 17,7" x 27,6"

Maximum frame profile size (mm/pol)

50 x 50 / 2" x 2"

Maximum production (pieces/h)*

1000

Air compressed consumtion (l/min. 7 bar)

250l/min - 8,9 cfm + number of printhead

Maximum consumption (kVA)

2

Machine diameter (mm/ft)

3430 / 11,3'

Total height

2316 / 7,72'

Minimum width of the base (mm/feet)

780 / 2,67'
