ROQ YOU

A screen-printing machine must be robust, fast, reliable, and precise.
The ROQ You is all of that and more. It is a performer.

Technical Specs

Aluminum honeycomb pallets;

Squeegees with electric movement with ac variator;

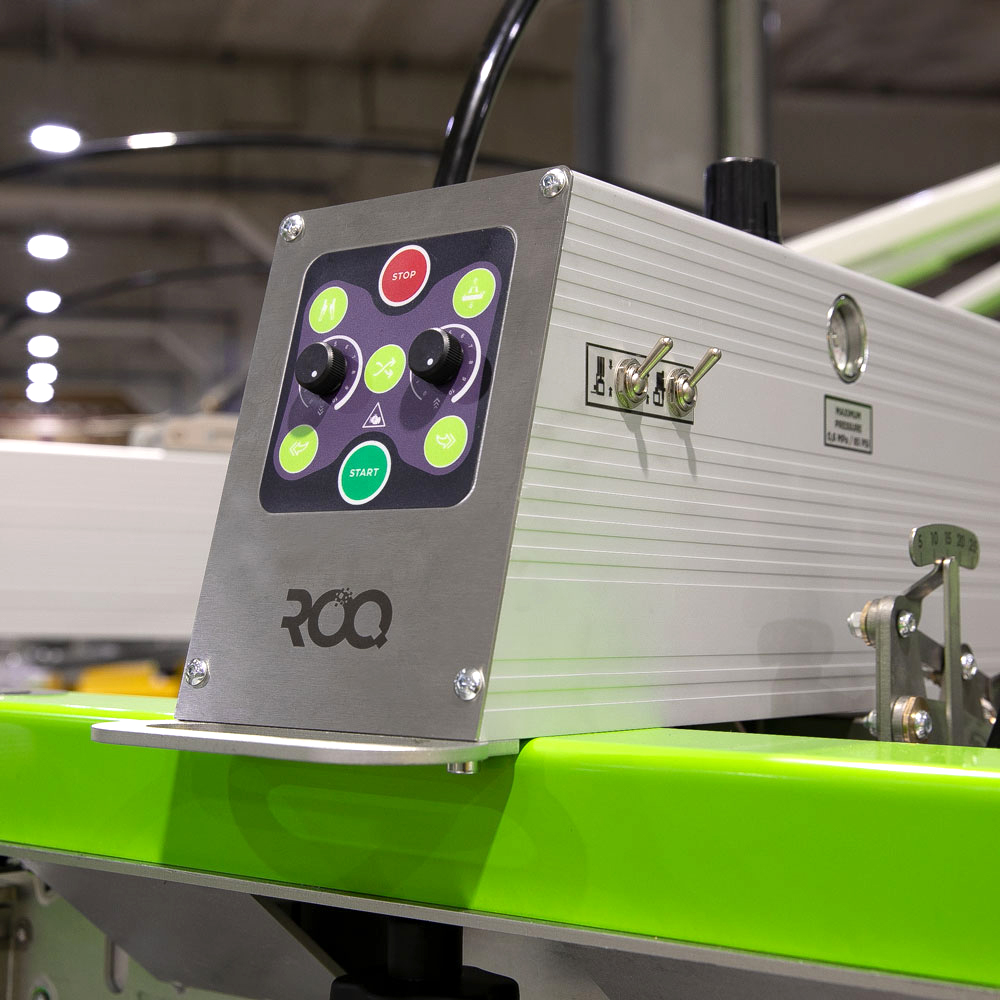

Independent control panel on all print heads;

Choice of pneumatic screen holder: ”U” clamp or pin system;

Print head central elevation;

Frequency drive rotation system for a quick and smooth index;

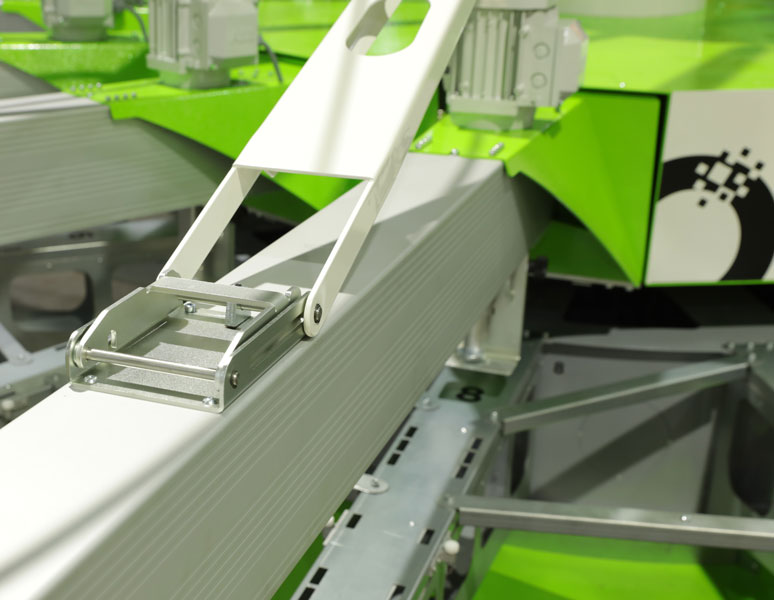

Print heads with high-lift position for quick and easy screen cleaning;

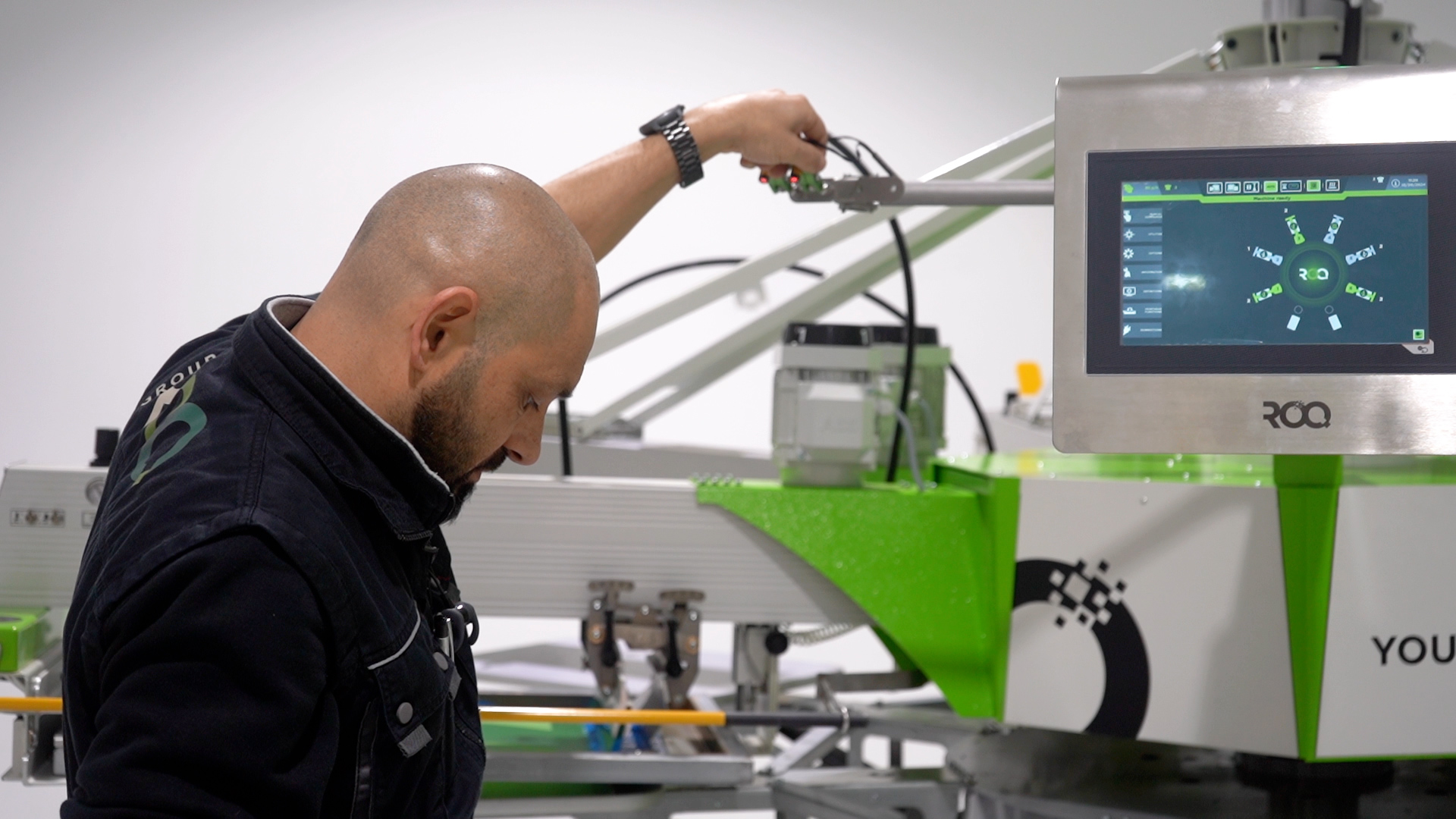

Central control panel with polycromatic LCD touch screen;

Micro registration screen system with vernier scale;

Individual controls for managing print and flood speed, height and angle of the squeegees and stroke length.

Description

Elegant, the ROQ You draws its strengths from the clever engineering applied to it by ROQ. Innovating processes and techniques, ROQ has improved the quality of its screen printing machines for over 30 years now. Today, the aim is the same as it was in the beginning, to create, produce, and deliver top-quality machines that last for decades with low maintenance.

With a maximum production of 1050 pieces per hour, this screen printing machine shows its versatility within the number of configurations in which it can be produced.

From a minimum of 8 pallets up to 22 pallets and from 1 color (printhead) up to a maximum of 20 colors (printheads). From 400mm x 500mm up to 700mm x 1000mm the ROQ You answer most of the printer's demands.

The ROQ You was not only built to last for ages and to be precise. It is also an extremely user-friendly screen-printing machine. It uses proprietary software created with the collaboration of several of our partners. It’s a system built by printers for printers. Every print head has its own control panel, but the whole machine can be controlled from the central console, including any acessory that might be connected to it. This allows for very intuitive control of the machine allowing for faster setup times, or adjustments on the spot. As an addition, using the PRU (Positive Registration Unit), or the ROQ CTS, the setup times will be even smaller making the whole operation more efficient.

To sum up, if you print and need more, the screen-printing machine ROQ You is the answer for you. Fast, reliable, precise, and durable. The ROQ You adapts to your screen-printing needs and increases the value of your finished product.

ROQ YOU

P08 M

P10 M

P10XL

P12XL

P14XL

P16XL

P18XL

P20XL

P22XL

Number of colors (max.)

7 9

9

10 12 14 16 18 20

Number of pallets

8 10 10 12 14 16 18 20 22

Number of flash cure connection units (optional)

3 4 4 5 6 7 8 9 10

Maximum production
(pieces/h) *

1050

1000

Compr. air consumption
(l/min. 7 bar) **

220l/min - 7,5cfm + consumption of each printhead

340 l/min - 12 cfm consumption of each printhead

Maximum consumption
(kVA) ***

3.5

4

4

5.5

6

7

7.5

8

9

Machine diameter
(mm/feet)

3600 / 11.8’

3900 / 12.8’

4600 / 15.1’

5200 / 17.1’

5450 / 17.9’

5900 / 19.4’

6325 / 20.8’

6950 / 22.8’

7250 / 23.8’

Total height
(mm/feet)

2322 / 7.6’

2400 / 7.9’

2400 / 7.9’

2423/ 7.9’

2463 / 8.1’

2485 / 8,2'

2652 / 8.7’

2698 / 8.9’

2698 / 8.9’

Minimum width of
the base (mm/feet)

1022 / 3.4’

1346 / 4.4’

1346 / 4.4’

1550 / 5.1’

1800 / 5.9’

2014 / 6.6’

2280 / 7.5’

2230 / 7.3’

2230 / 7.3’

Machine weight
(kg/pounds)

1150 / 2535

1200 / 2646

1280 / 2822

1900 / 4190

2200 / 4850

2650 / 5842

3150 / 6945

3650 / 8047

3900 / 8598

* One squeegee with flooding for a A4 print.
** Consumption of each electric printhead: 15l/min | 0.5cfm in 15 pieces/min.

*** These values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.

- Power supply: 230V+N, 2x230V, 3x230V, 3x400V+N  - 50Hz or 60Hz. See flash cure page.
