ROQ OVAL EVOLUTION

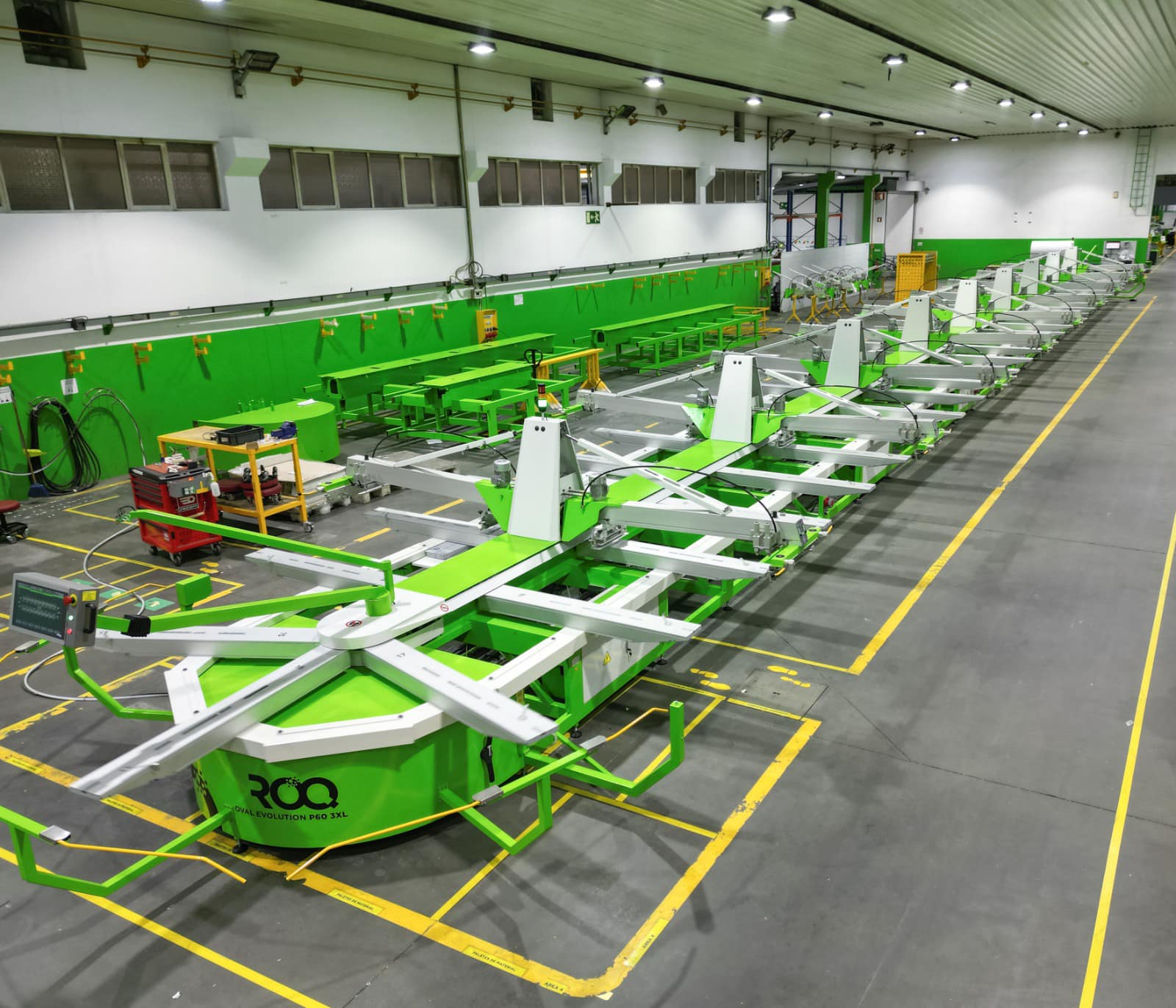

ROQ Oval Evolution – Oval screen printing machine
The oval screen printing machine Oval Evolution is the flagship press of ROQ.
It has impeccable performance at every level. As it is super versatile it answers any need a printer might have.
The Oval Evolution is a model of an oval screen printing machine that allows for larger printing areas. From 500mm * 700mm up to a maximum of 950 mm * 1250mm.
Technical Specs

• Aluminum honeycomb pallets
• Squeegees with electric movement with AC inverter

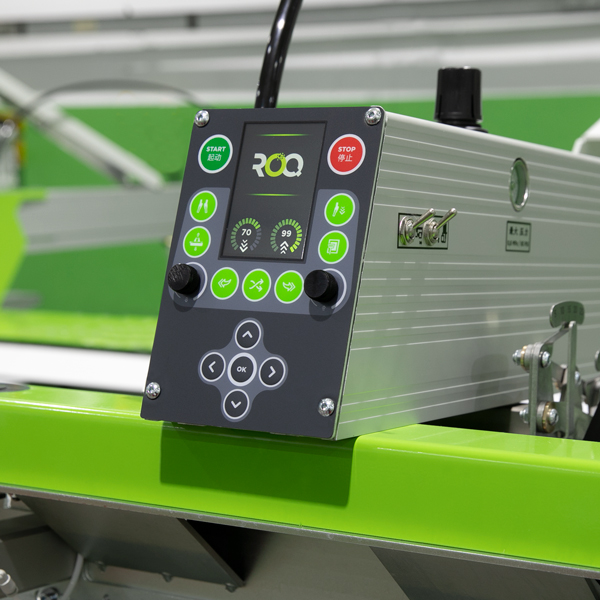

• Independent control panel on all print heads
• Choice of pneumatic screen holder: ”U” clamp or pin system
• Print heads independent elevation
• AC servo-motor rotation system

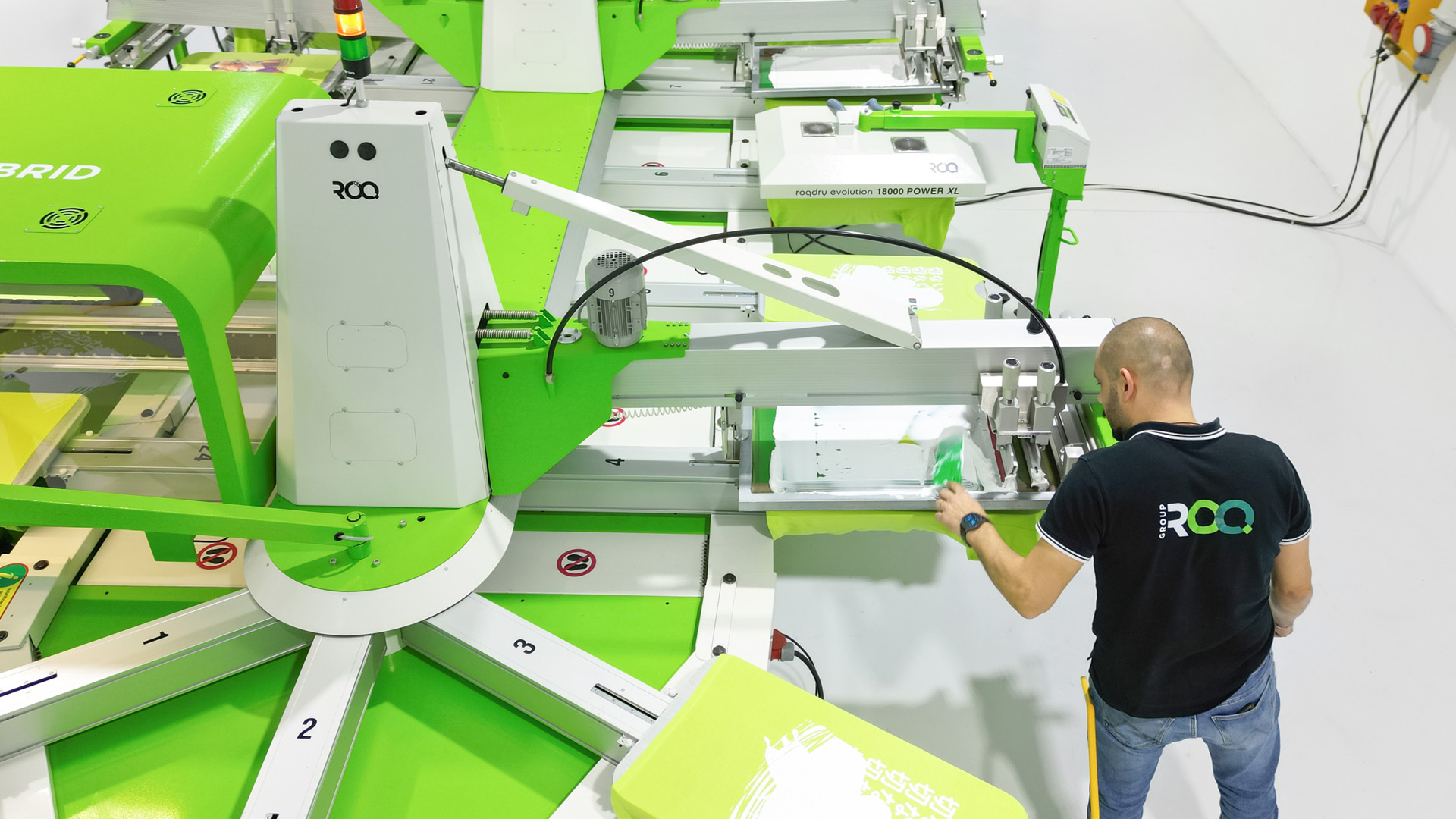

• Print heads with automatic high-lift position for quick and easy screen cleaning

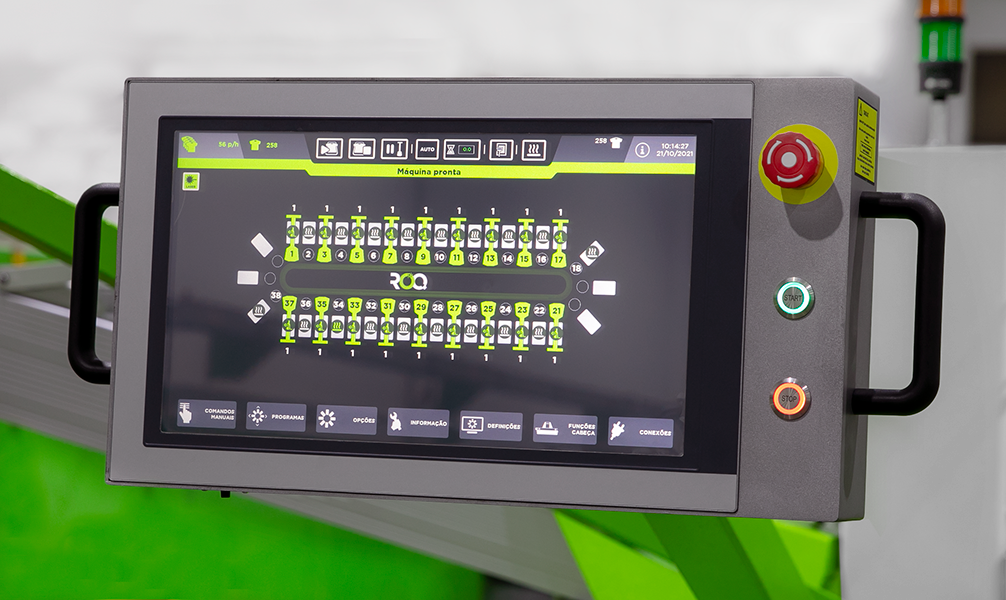

• Central control panel with polychromatic LCD touch screen (15”)
• Micro registration screen system with vernier scale

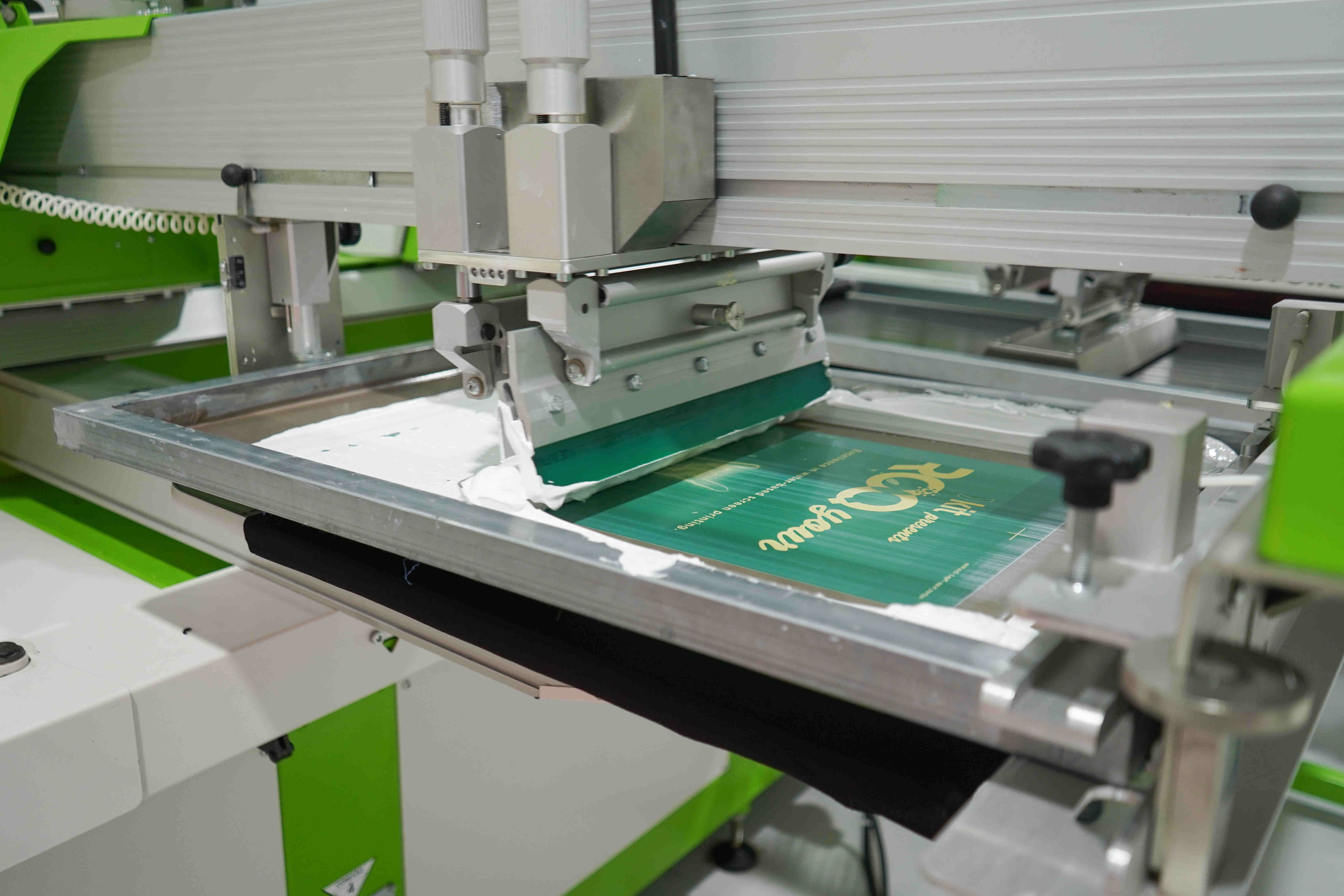

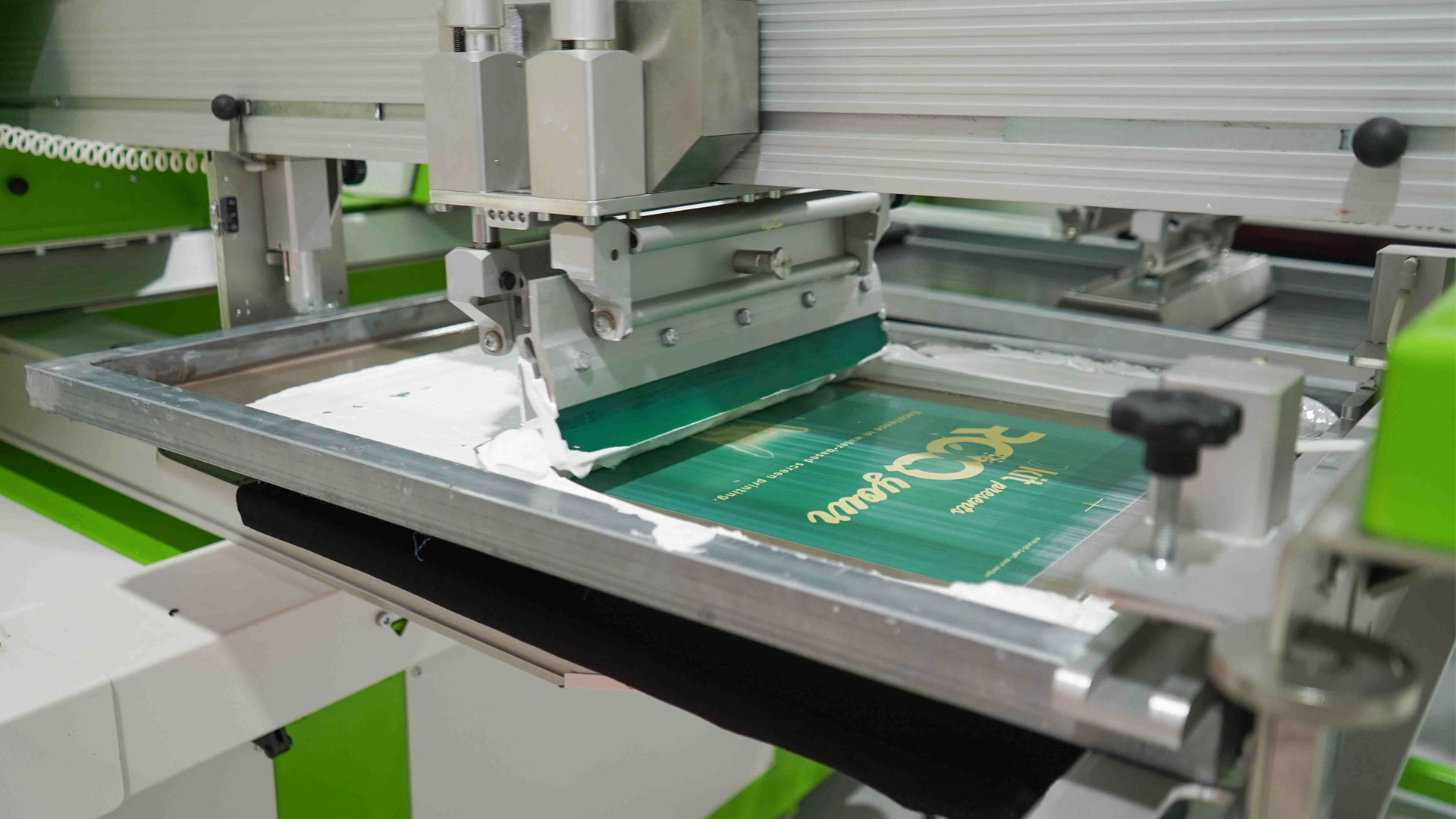

• Individual controls for managing print and flood speed, height, angle of the squeegees and stroke length

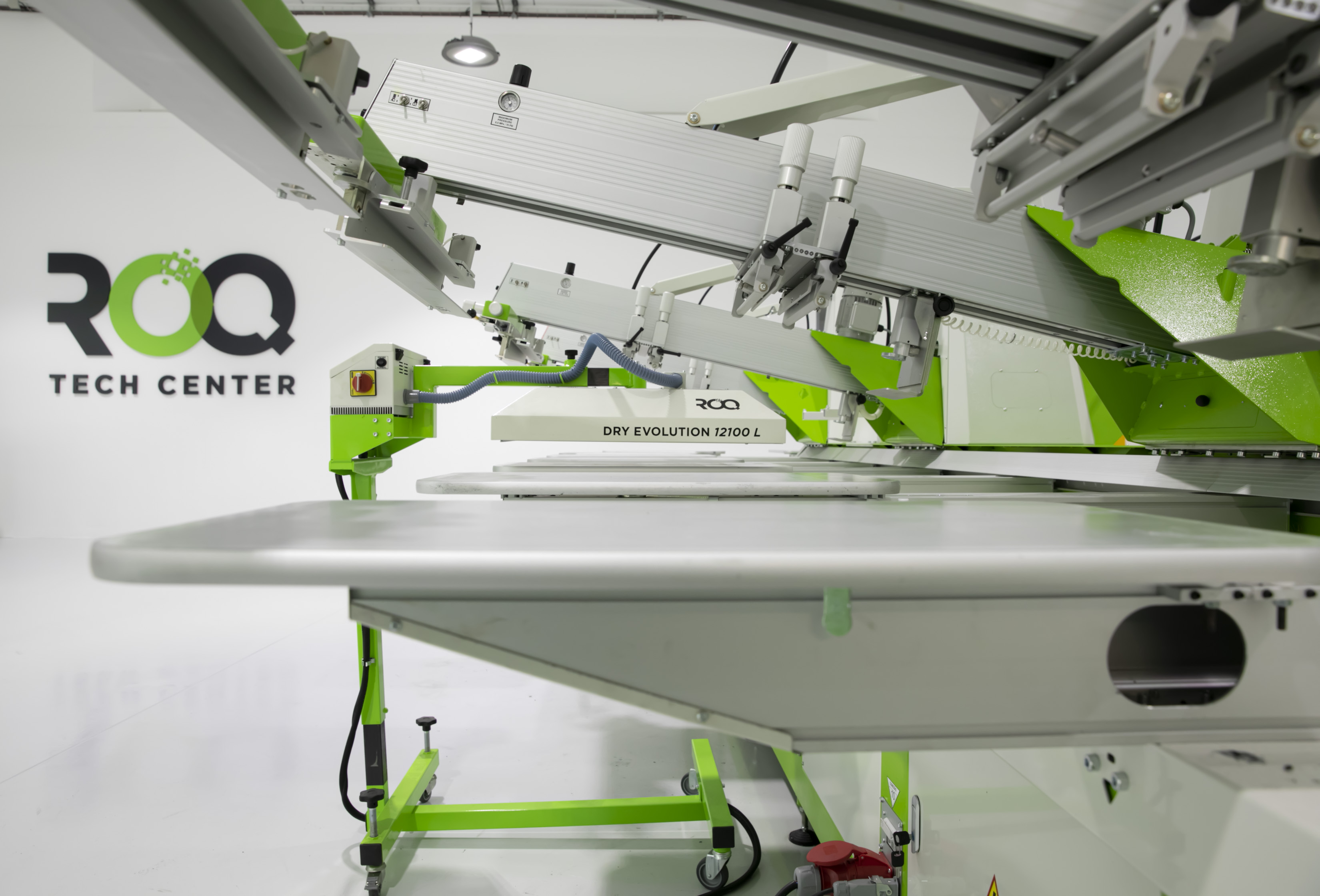

• Placement of the Flash Cure units under the print head

Description

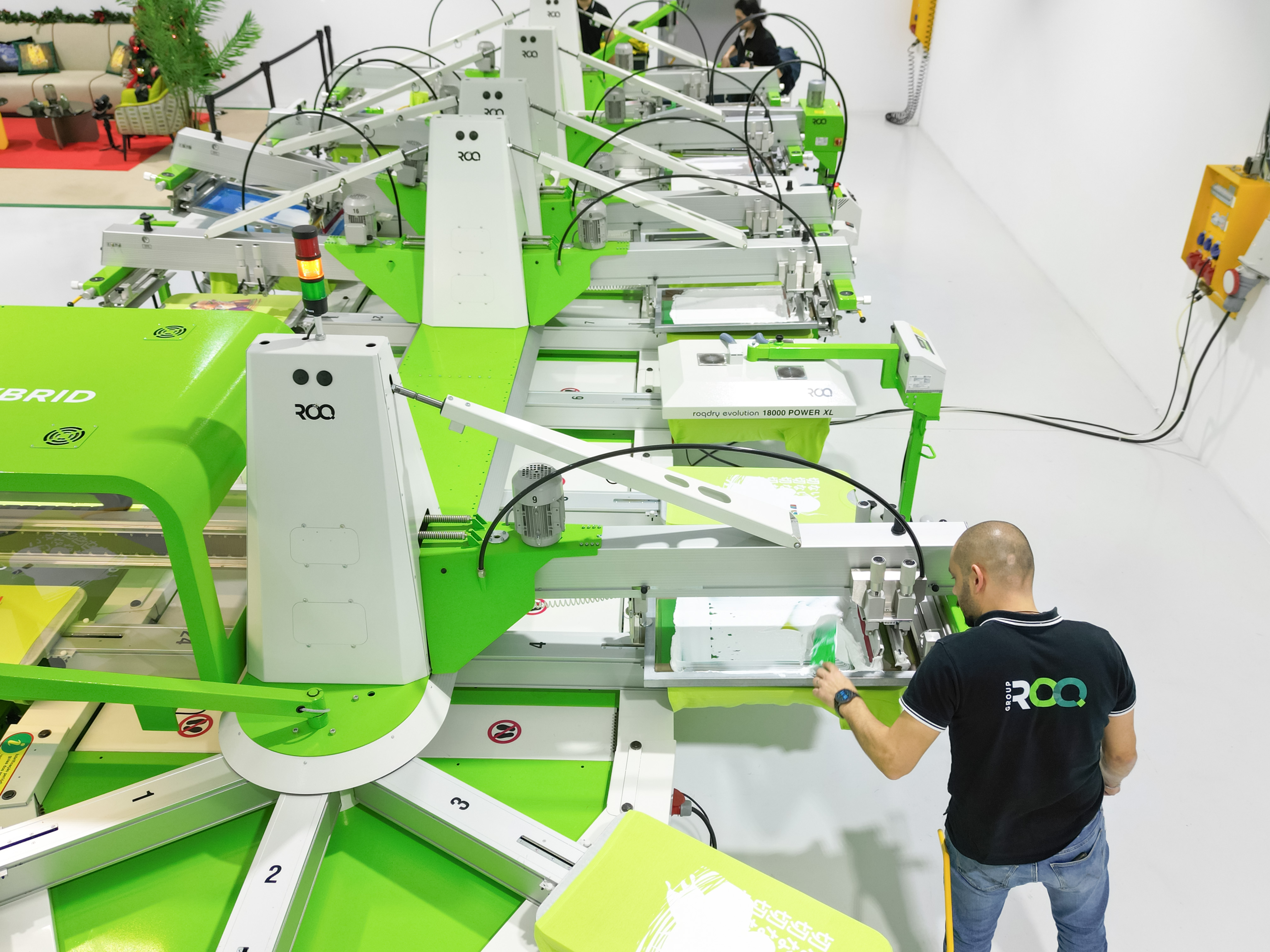

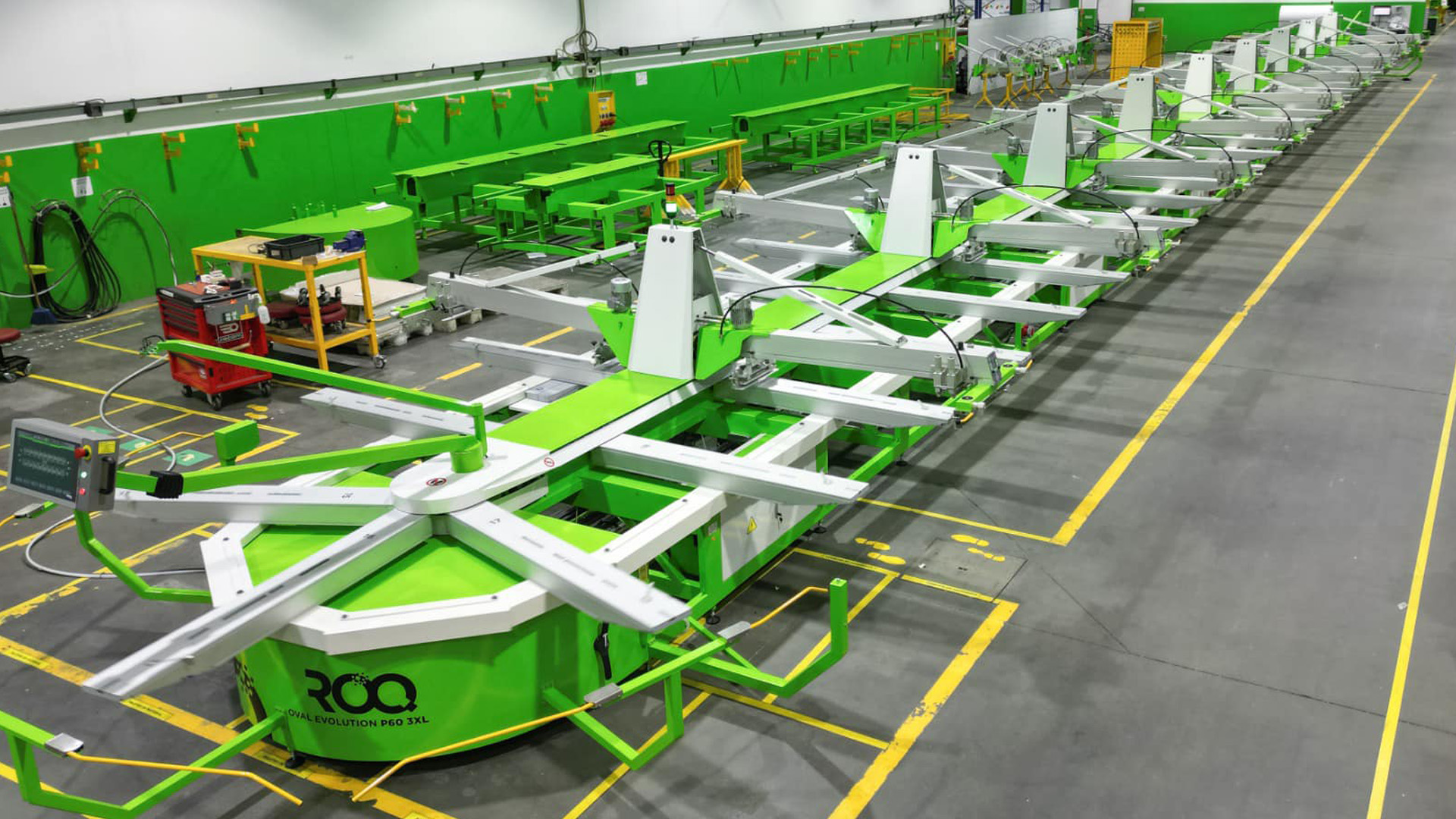

This model has independent elevation making the Oval Evolution a very versatile oval screen printing machine. This feature gives the printer the freedom to set up the job or jobs in the most efficient way. That is why it is not unusual to find owners of OVAL EVOLUTION running 2, 3, or even 4 jobs at the same time. With the independent print head lift you can setup the other modules in the positions that you need. Either it is a flash or the ROQ Flock, the ROQ Foil, or any other module that adds value to the print. This allows the printer to do from the most complex job to the simplest job. The printer can run several jobs with minimal teams. These teams also love the automatic high-lift position for screen cleaning.

The main feature of this oval screen printing machine is its capacity to maintain the registry. ROQ’s rotation system is very different from the traditional oval system. This is why ROQ extends a lifetime warranty on the registration to any of its Oval screen-printing machines.

This is then translated into reduced maintenance due to its robustness and reliability. A direct result of the innovative engineering and quality materials used in it.

Used in conjunction with our CTS or PRU (Positive Registration Unit) the user will have faster setup times allowing for the time the oval screen printing machine is running to be used to actually printing and not setting up or spent with maintenance.



ROQPRINT OVAL EVOLUTION

P16

P20

P24

P32

P36

P40

P44

P50

P56

Number of colors (max.)

10

14

18

26

30

34

38

44

50

Number of pallets

16

20

24

32

36

40

44

50

56

Number of flash cure connection units (optional)

10

14

18

26

30

34

38

44

50

Maximum production (pieces/h) *

XL+: 950  |  2XL: 900  |  3XL: 850  |  4XL: 800

Compr. air consumption (l/min. 7 bar) **

120 l/min - 4.3 cfm +consumption of each printhead

Maximum consumption (kVA) ***



XL+ e 2XL



6.5

8

9.5

14.5

16

17.5

19

21.5

25.5

3XLe 4 XL

6.5

8

11.5

14.5

16

XL+

Total length (mm/feet)

Short

7763/25.5’

9415/30.9’

11067/36.3’

14371/47.1’

16024/52.6’

17676/58’

19328/63.4’

21806/71.5’

24285/79.7’

Long

8807/28.9’

10713/35.1’

12619/41.4’

16432/53.9’

18338/60.2’

20244/66.4’

22150/72.7’

25010/82.1’

27869/91.4’

Total height (mm/feet)

2235/7.3’

Total width (mm/feet)

4050/13.3’

Machine weight (kg/pounds)

Short

2824/6226

3592/7919

4327/9539

5745/12666

6481/14288

7244/15970

7954/17536

9045/19941

10107/22282

Long

2958/6521

3730/8223

4495/9910

6026/13285

6791/14972

7529/16599

8266/18223

9590/21142

10506/23162

2XL

Total length (mm/feet)

Short

9053/29.7’

10969/36’

12875/42.2’

16687/54.7’

18594/61’

20500/67.3’

22406/73.5’

25265/82.9’

28124/92.3’

Long

10713/35.1’

13153/43.2’

15594/51.2’

20474/67.2’

22914/75.2’

25354/83.2’

27795/91.2’

31455/103.2’

35115/115.2

Total height (mm/feet)

Short - 2235/7.3'  -  Long - 2310/7.6'

Total width (mm/feet)

4350/14.28'

Machine weight (kg/pounds)

Short

3061/6748

3859/8508

4649/10249

6229/13733

7019/15474

7782/17156

8545/18838

9717/21422 10860/23942

Long

3592/7919

4540/10009

5483/12088

7406/16327

8349/18406

9245/20382

10151/22379

11551/25466 12942/28532

3XL

Total length (mm/feet)

10923/35.8’

13364/43.8’

15804/51.9’

20684/67.8’

23124/75.9’

25565/83.9’

28005/91.9’

31665/103.9’

35325/115.9’

Total height (mm/feet)

2310/7.6’

Total width (mm/feet)

4350/14.3’

Machine weight (kg/pounds)

3688/8131

4667/10289

5640/12434

7625/16810

8553/18856

9526/21001

10463/230667

11910/26257

13412/29568

4XL

Total length (mm/feet)

12513/41.1’

15309/50.2’

18105/59.4’

23697/77.7’

26494/86.9’

29290/96.1’

32086/105.3’

36280/119’

40475/132.8’

Total height (mm/feet)

2350/7.71’

Total width (mm/feet)

4850/15.9’

Machine weight (kg/pounds)

3923/8649

4951/10915

6015/13261

8037/17719

9064/19983

10058/22174

11086/24440

12616/27814

14171/31242

* One squeegee with flooding for a A4 print.
** Consumption of each electric printhead: 50l/min - 1.8 cfm in 15 pieces/min.
*** These values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.
- Power supply: 3x230V, 3x400V+N - 50Hz or 60Hz. See flash cure page.

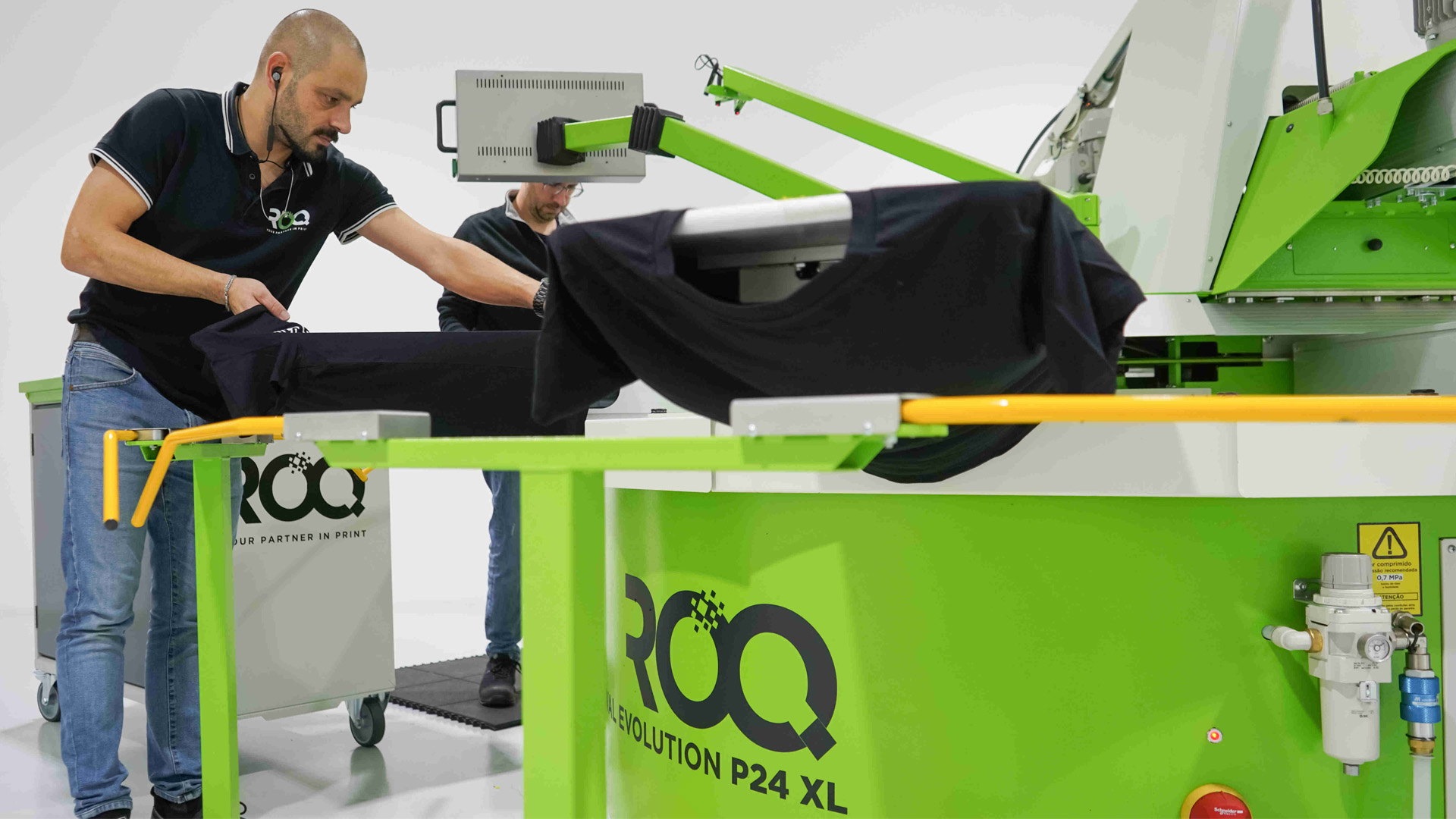

ROQ OVAL EVOLUTION in action
