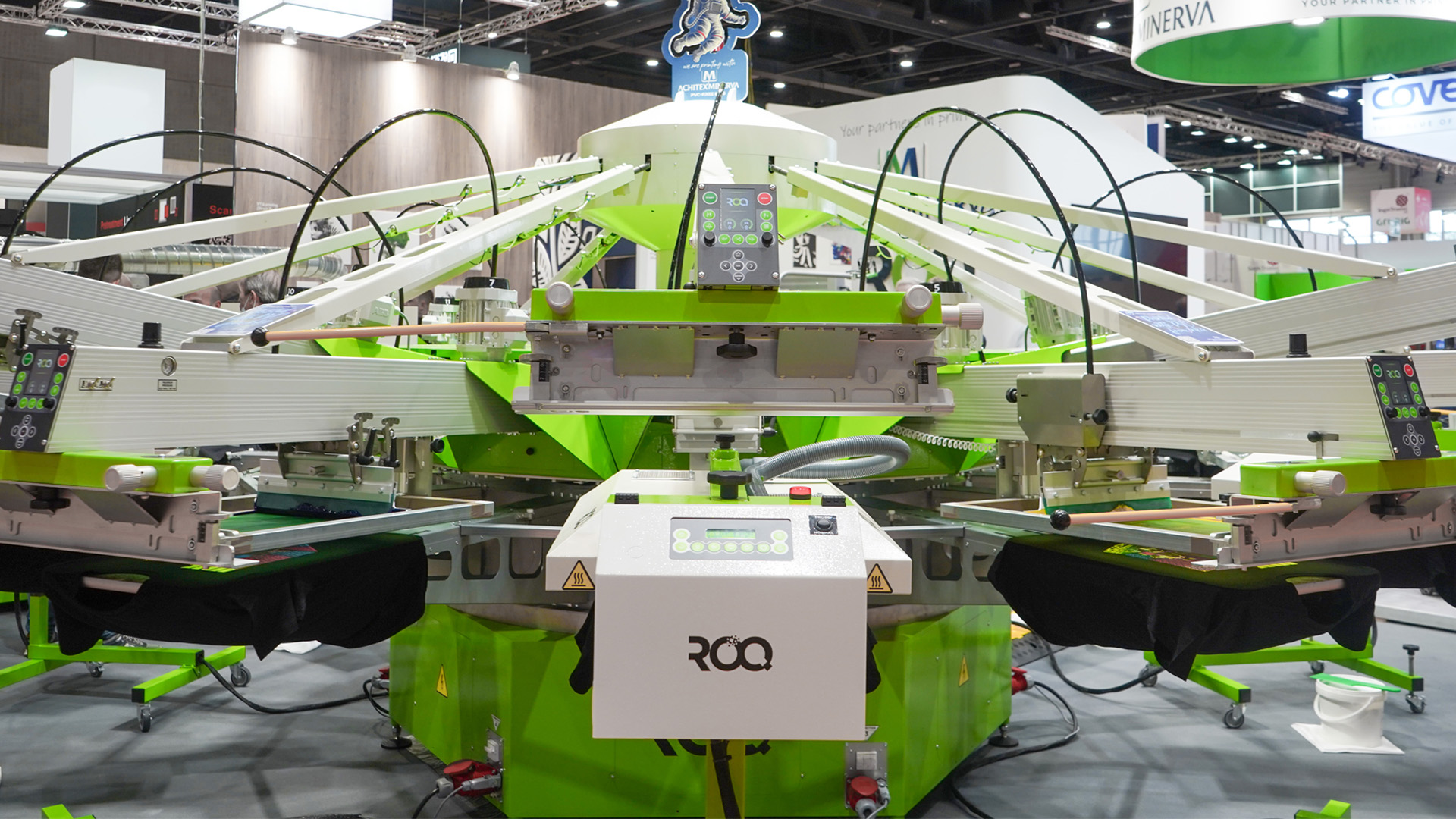

ROQ ECO

The ROQ Eco incorporates ROQ’s latest technological innovations.
Technical Specs
Aluminum honeycomb pallets;

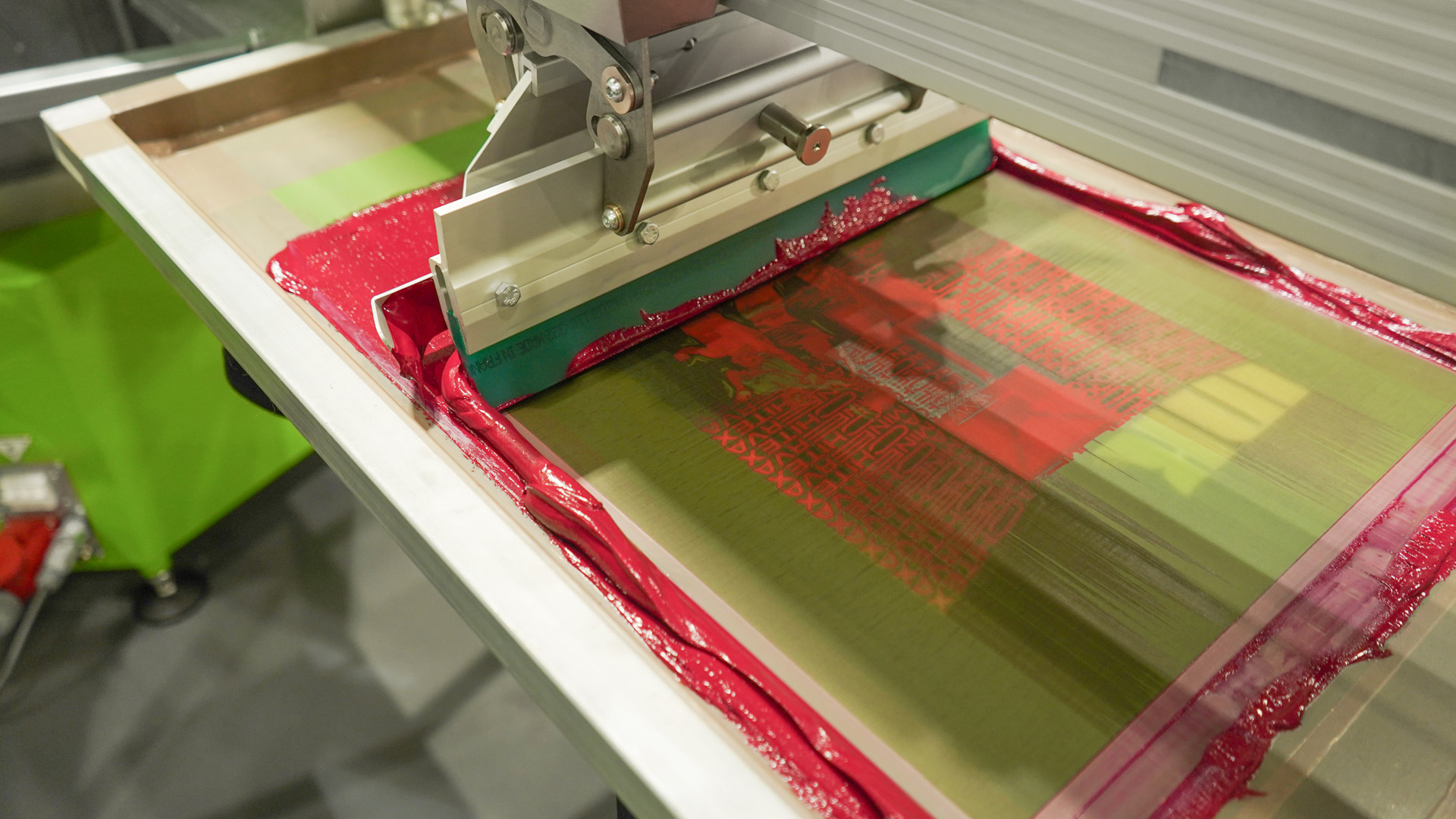

Squeegees with electric movement with ac variator;

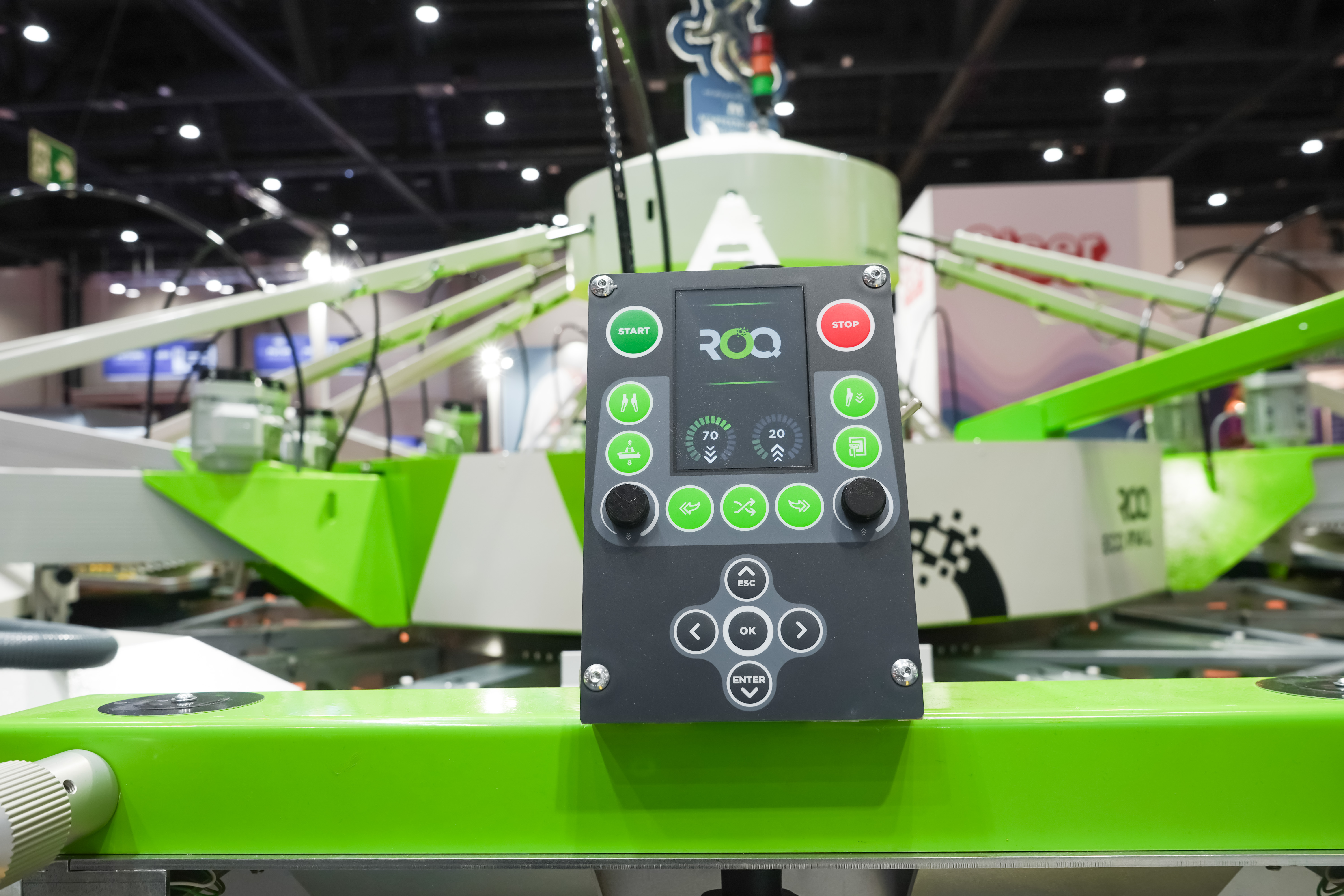

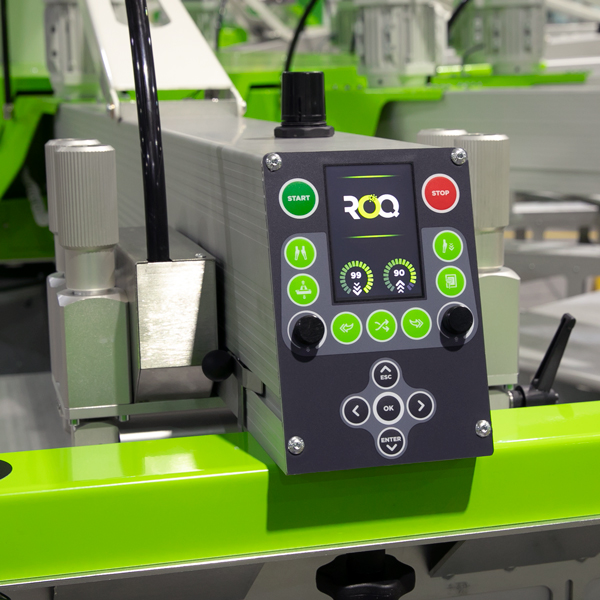

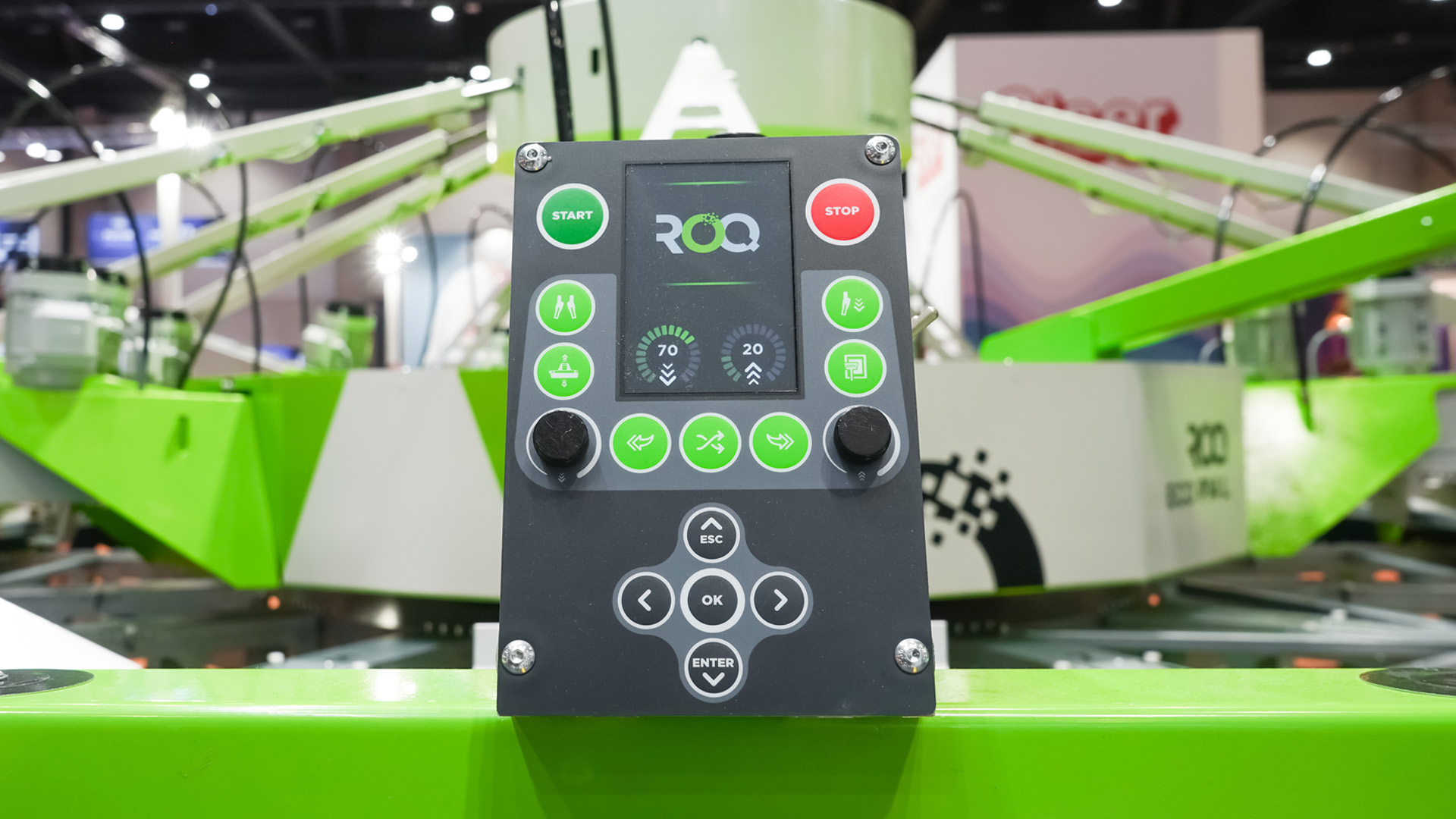

Independent control panel on all print heads;

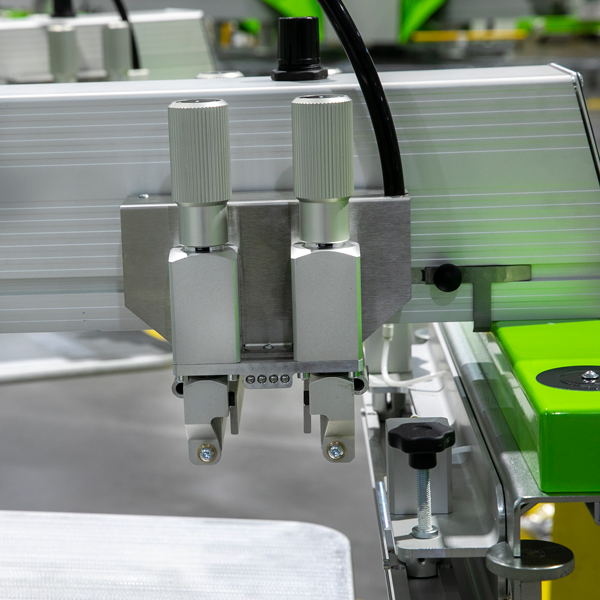

Choice of pneumatic screen holder: ”U” clamp or pin system;

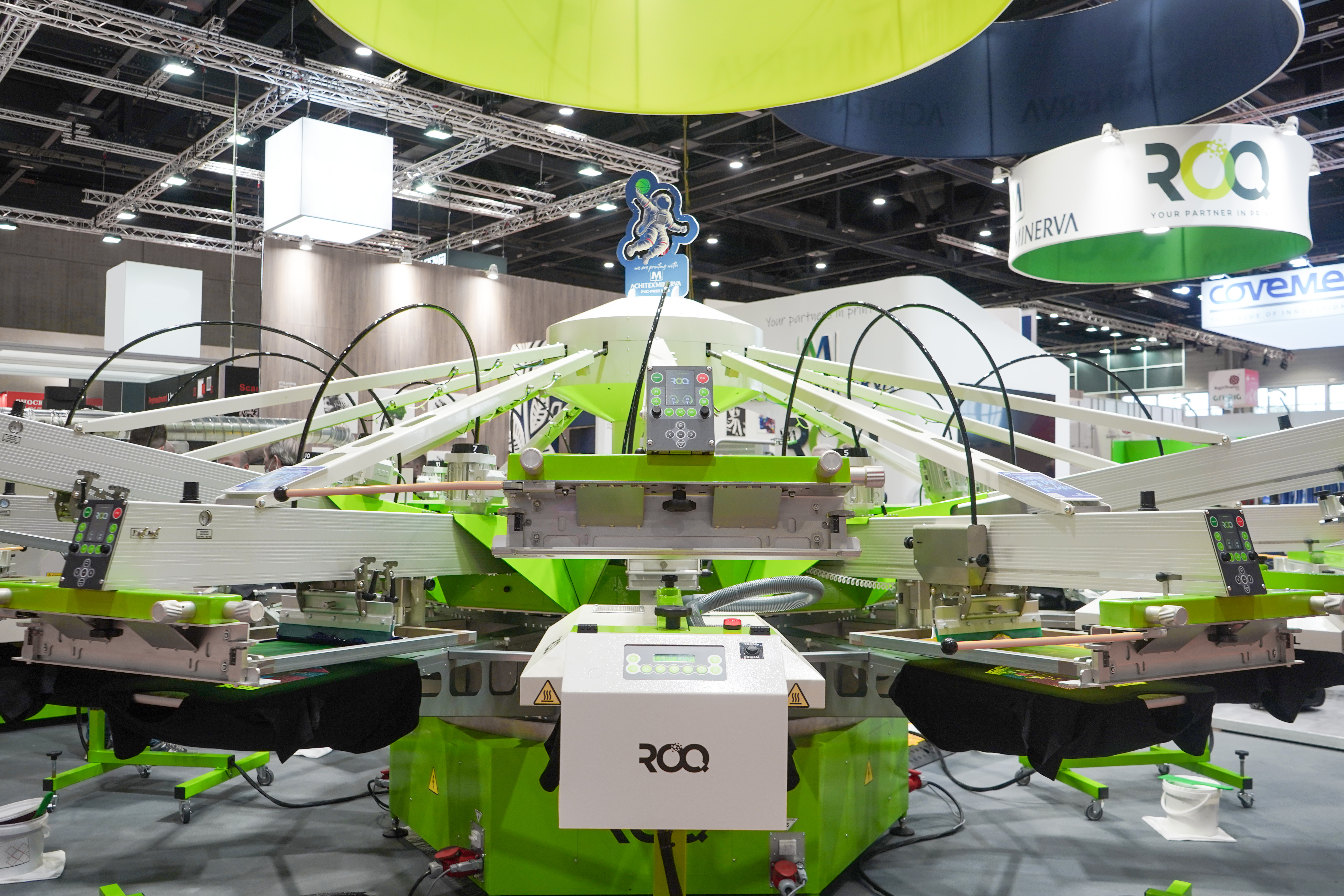

Print head central elevation;

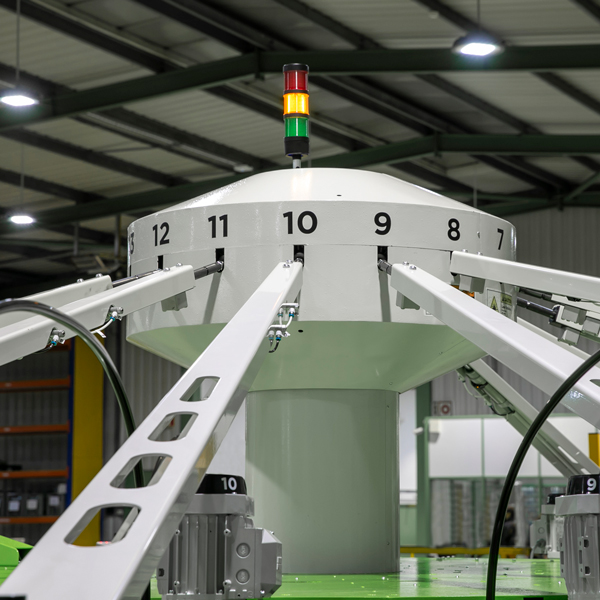

AC servo-motor rotation system;
Print heads with high-lift position for quick and easy screen cleaning;

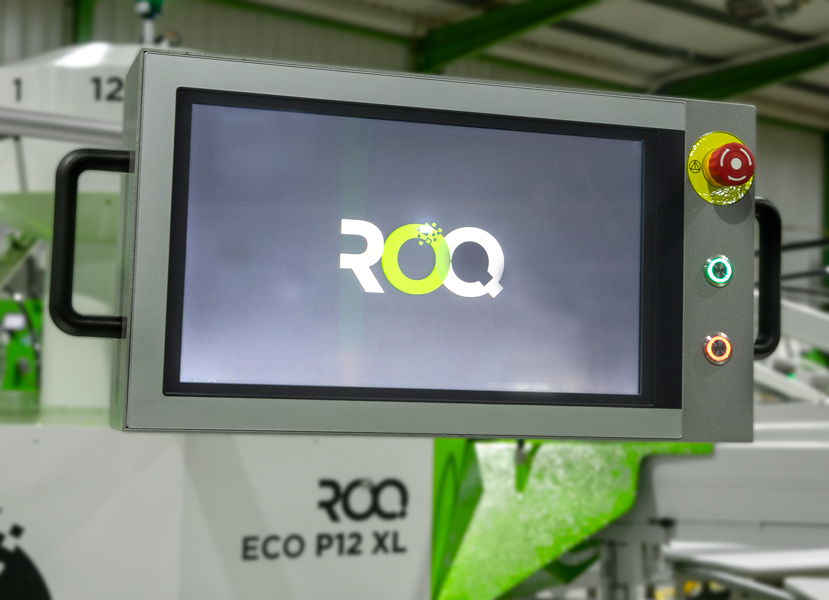

Central control panel with Polychromatic LCD touch screen (10”);
Micro registration screen system with vernier scale;
Individual controls for managing print and flood speed, height, angle of the squeegees and stroke length;
Placement of the Flash Cure units under the print head.
Description

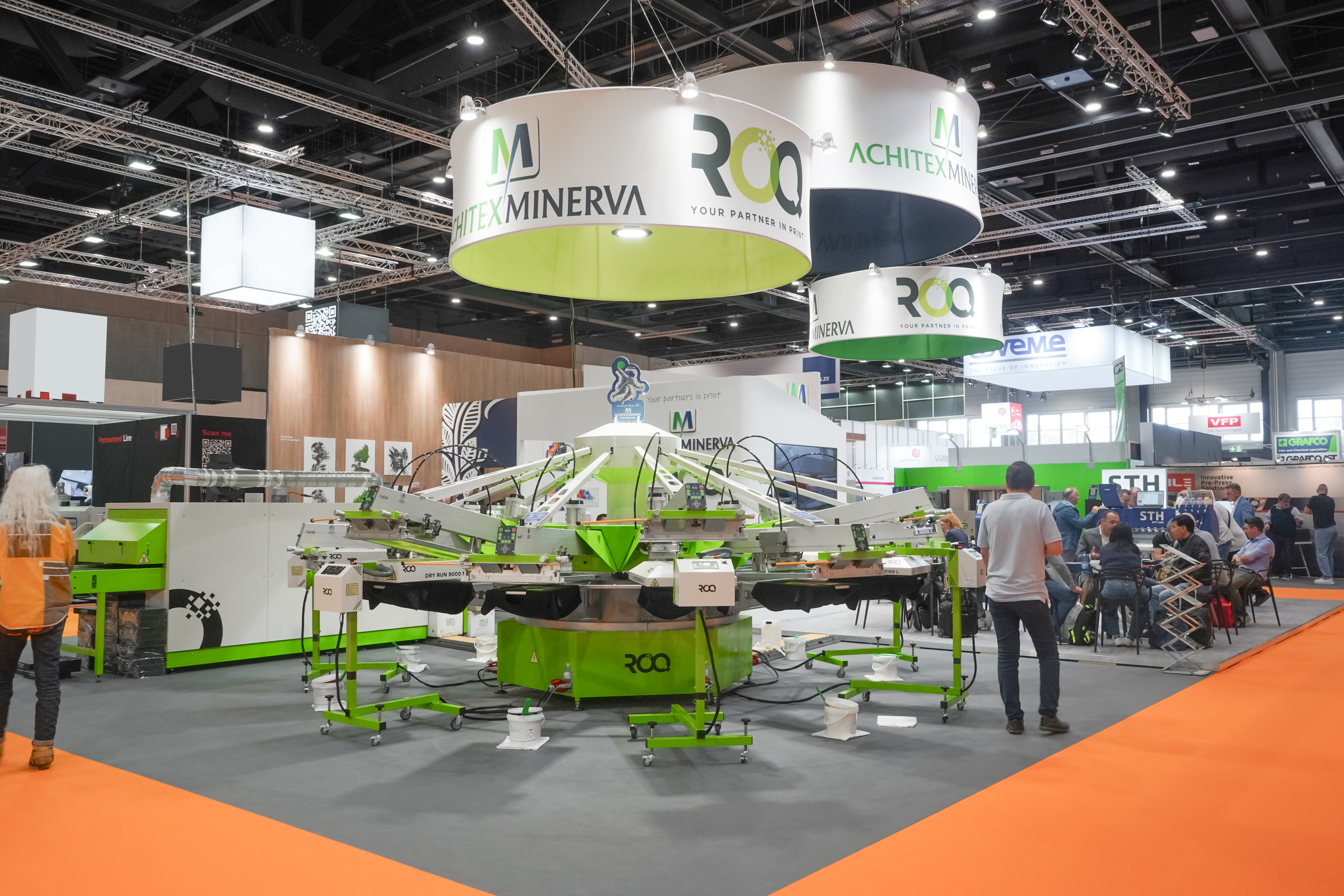

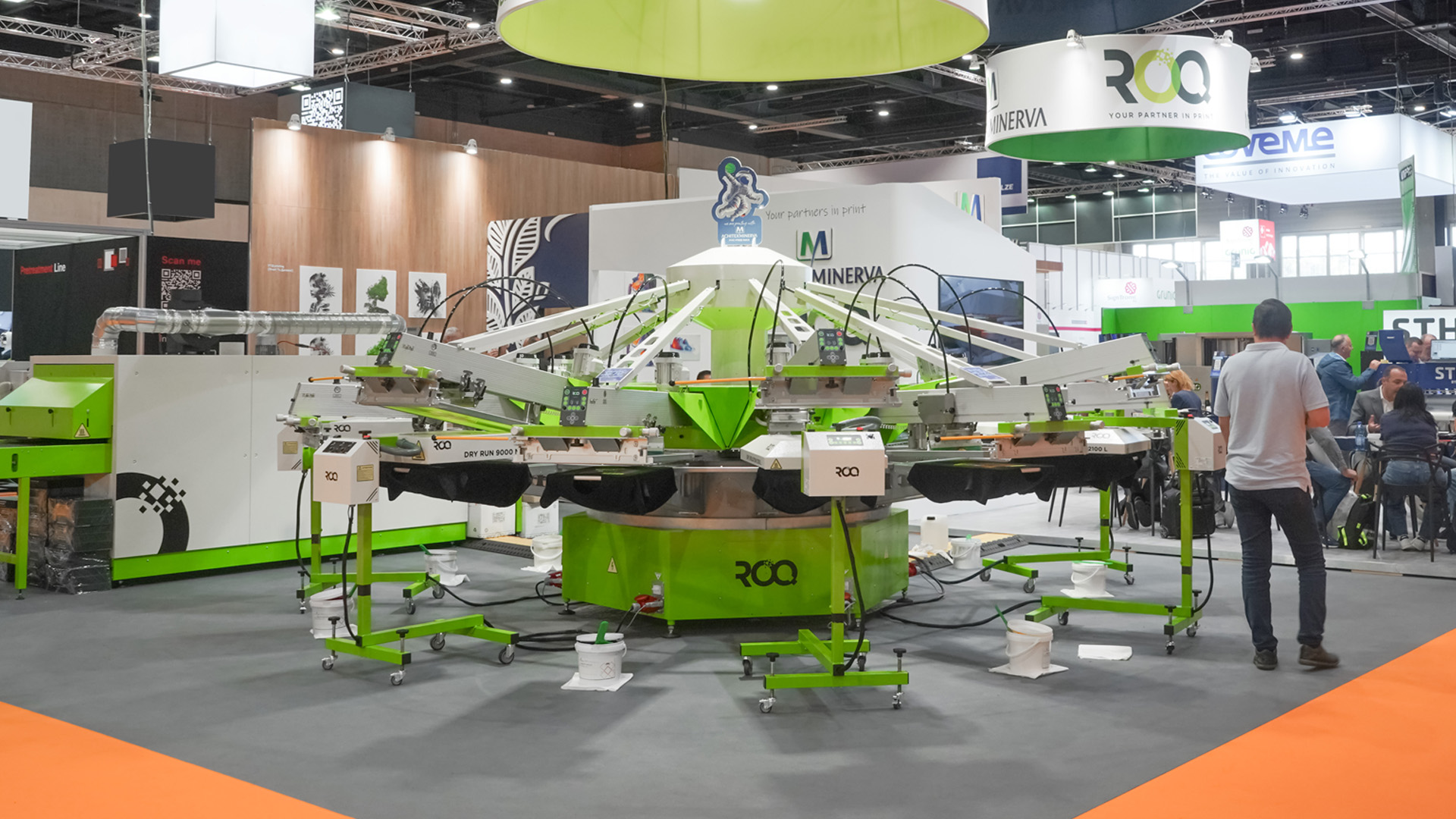

The screen-printing machine ROQ Eco is the ideal choice for the most demanding printer for its efficient response to every task. Capable of outputting a maximum of 1200 pieces per hour, this screen printing machine is a powerhouse.

This platform makes the best use of the ROQ Flock and ROQ Foil modules due to its independent print head elevation feature. This elevation system makes this screen printing machine especially efficient in printing with water-based inks, as the printer can manage the time that the screens are in contact with the hot pallets. Less time, in contact, means less evaporation of the inks, leading to fewer stops during the job.

The ROQ Eco is built with quality materials. ROQ’s biggest focus is to create and deliver a top-quality machine that requires minimum maintenance. ROQ believes that the printer must spend the least amount of time setting up jobs, cleaning  screens, or dealing with  maintenance. Considering this, every part of the Eco is designed for durability and precision, while always pushing for innovation and quality.

ROQ understands that having the best screen printing machine is not enough. When a printer makes the smart decision to acquire a ROQ Eco, the printer will also be acquiring a worldwide assistance network with a company committed to helping and fixing any situation that might arise.

ROQ ECO

P10

P12

P14

P16

P18

P20

P10

P14

number of colors (max.)

8

10

12

14

16

18

8

12

number of pallets

10

12

14

16

18

20

10

14

number of flash cure connection units (optional)

4

5

6

7

8

10

4

6

maximum consumption (kVA) ***

5.5

6

7

7.5

8.5

9

5.5

7

compr. air consumption (l/min. 7 bar) **

7l/min - 0.2 cfm + consumption of each printhead

L

maximum production (pieces/h) *

1400

1100

2XL

machine diameter (mm/feet)

4500 / 14.8’

5050 / 16.6’

5400 / 17.7’

5750 / 18.9’

6250 / 20.5’

6700 / 20.5’

6050 / 19.5

7200 / 23.6’

total height (mm/feet)

2350 / 7.7’

2370 / 7.8’

2440 / 8’

2510 / 8.2’

2540 / 8.3’

2540 / 8.3’

2435 / 8’

2495 / 8.2’

minimum width of the base (mm/feet)

1670 / 5.5’

1780/5.10’

2080/7’

2050/6.9’

2300/7.5’

2350/7.9’

2000/6.6’

2350/7.9’

machine weight (kg/pounds)

1750 / 3858

2000 / 4409

2500 / 5512

2900 / 6363

3400 / 7496

3950 / 8708

2200 / 4850

4000 / 8818

XL+

maximum production (pieces/h) *

1300

1000

3XL

machine diameter (mm/feet)

5650 / 18.5’

6000 / 19.7’

6350 / 20.8’

6850 / 22.5’

7250 / 23.8’

6500 / 21.3’

7600 / 24.9’

total height (mm/feet)

2370 / 7.8’

2440 / 8’

2510 / 8.2’

2540 / 8.3’

2540 / 8.3’

2435 / 8’

2490 / 8.2

minimum width of the base (mm/feet)

1780/5.10’

2080/7’

2050/6.9’

2300/  7.5’

2350/7.9

2000/6.6’

2350/7.9’

machine weight (kg/pounds)

2050 / 4519

2600 / 5732

3000 / 6614

3550 / 7826

4050 / 8929

2400 / 5291

4300 / 9480

* One squeegee with flooding for a A4 print.
** Consumption of each electric printhead: 50 l/min - 1,8 cfm in 15 pieces/min.

*** These values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure on the machine.
- Power supply: 3x230V, 3x400V+N - 50Hz or 60Hz. See flash cure page.
