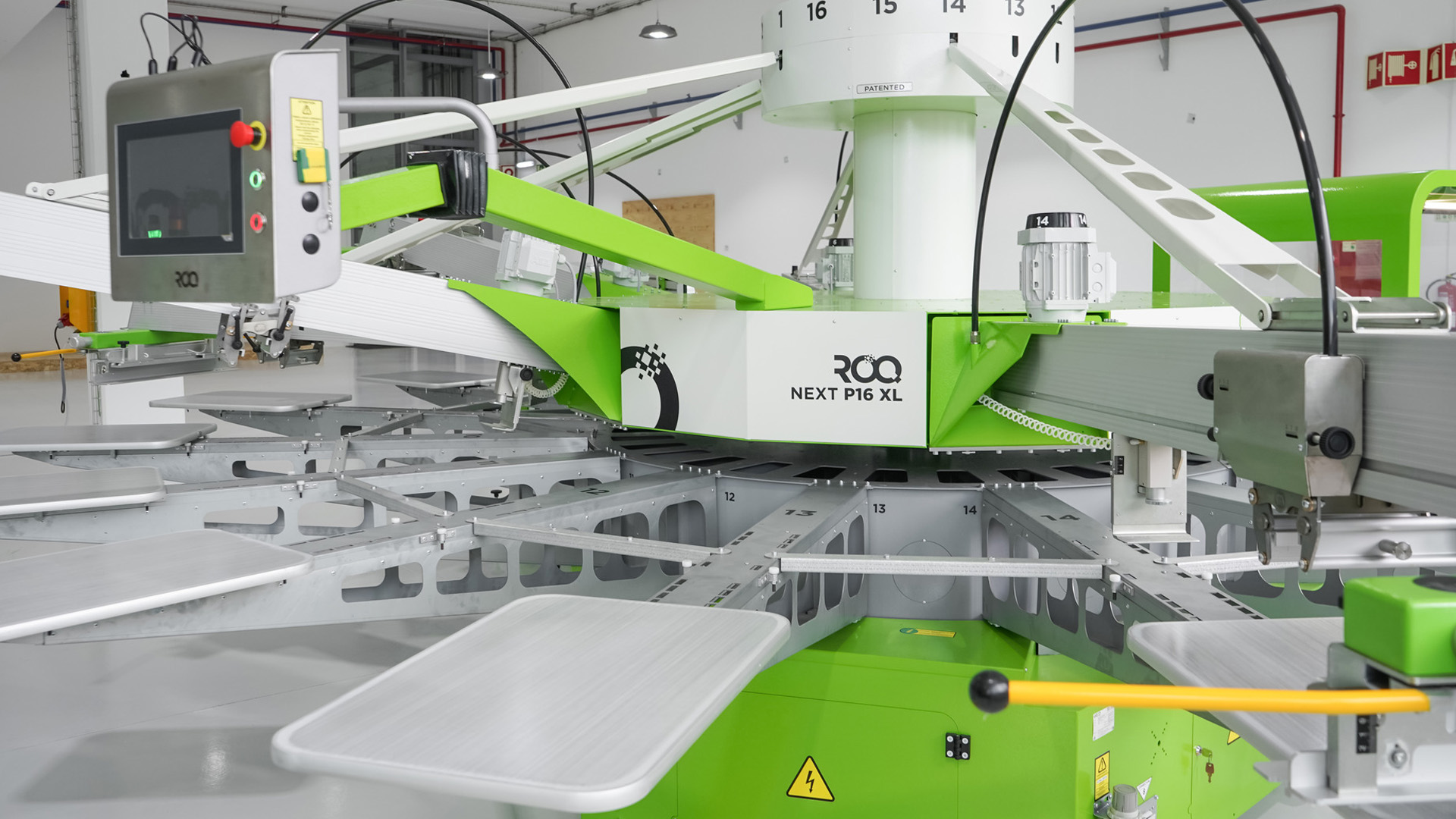

ROQ NEXT

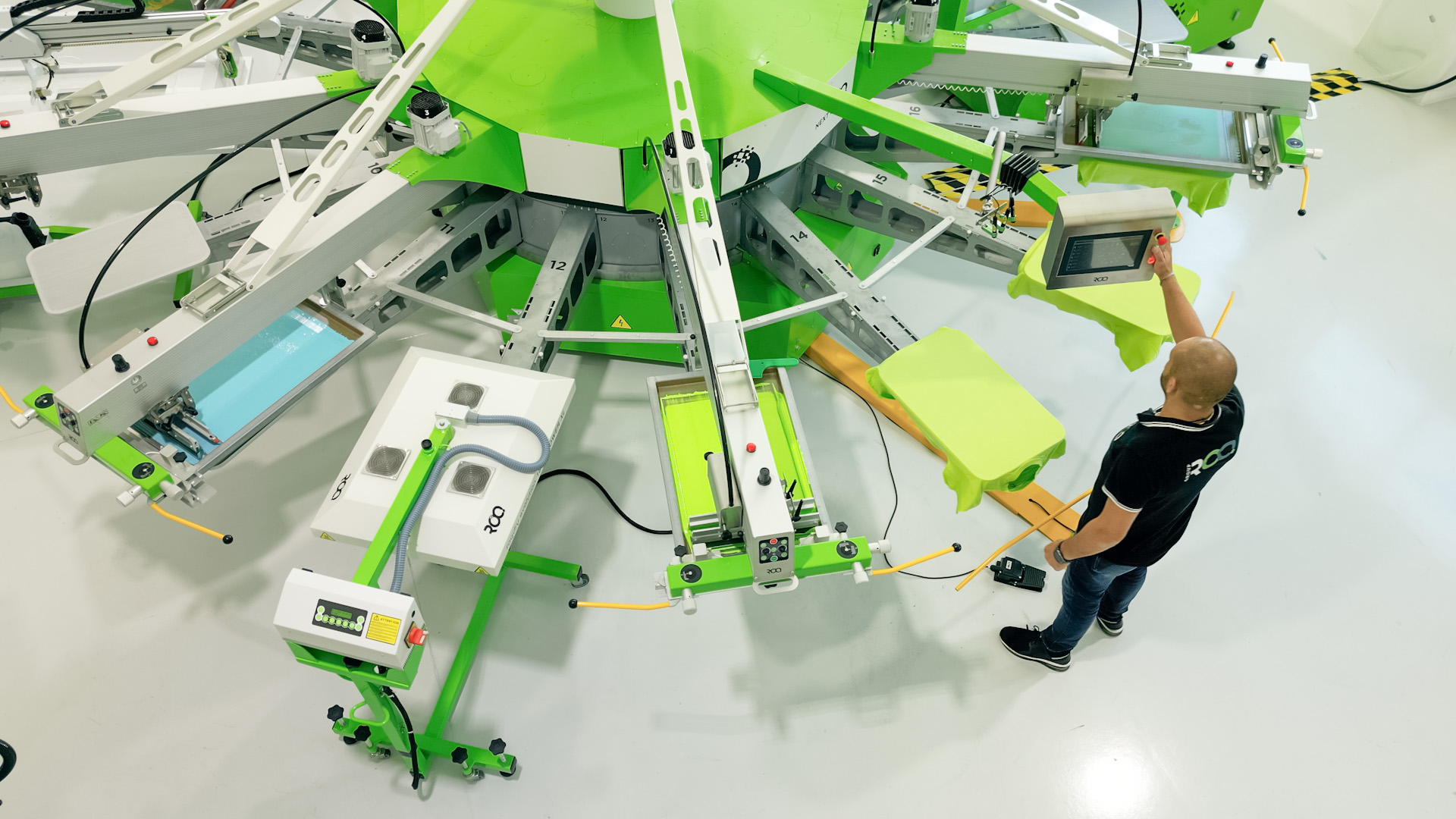

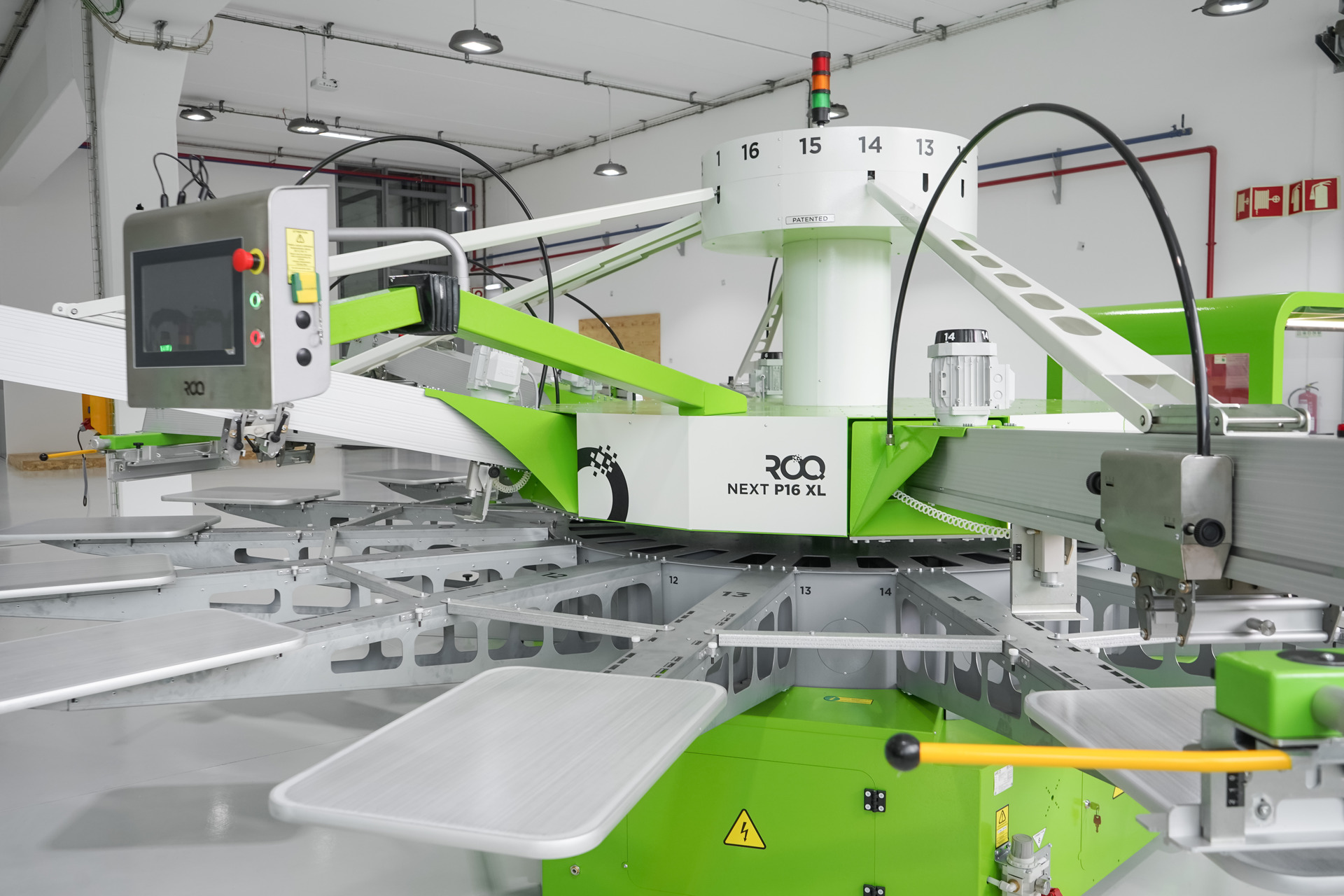

From our work worldwide with different partners, we understood that there was a demand for a machine we did not have yet created. The ROQ Next is the newest carousel machine from ROQ and it was designed after extensive research.
Technical Specs

Aluminum honeycomb pallets;

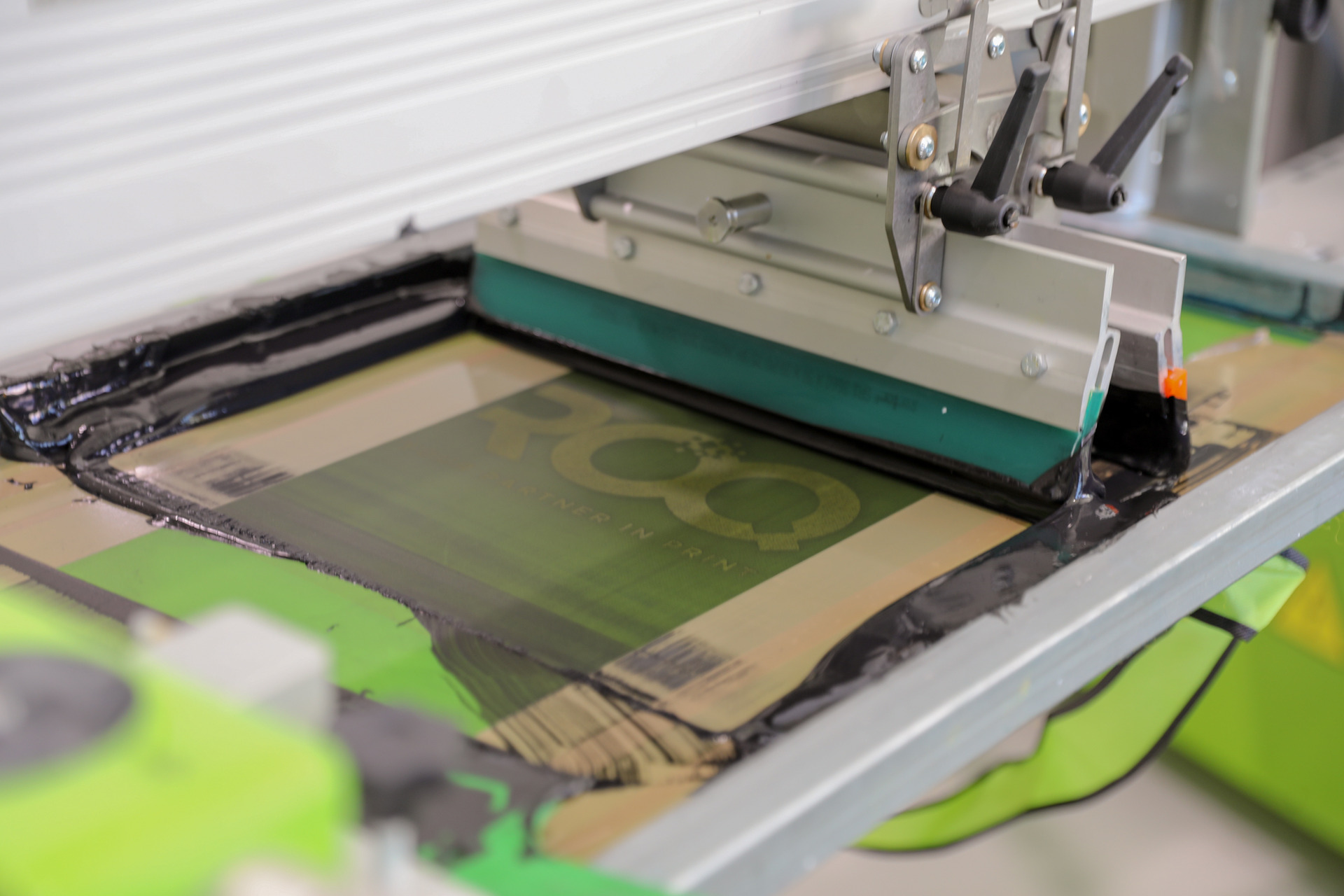

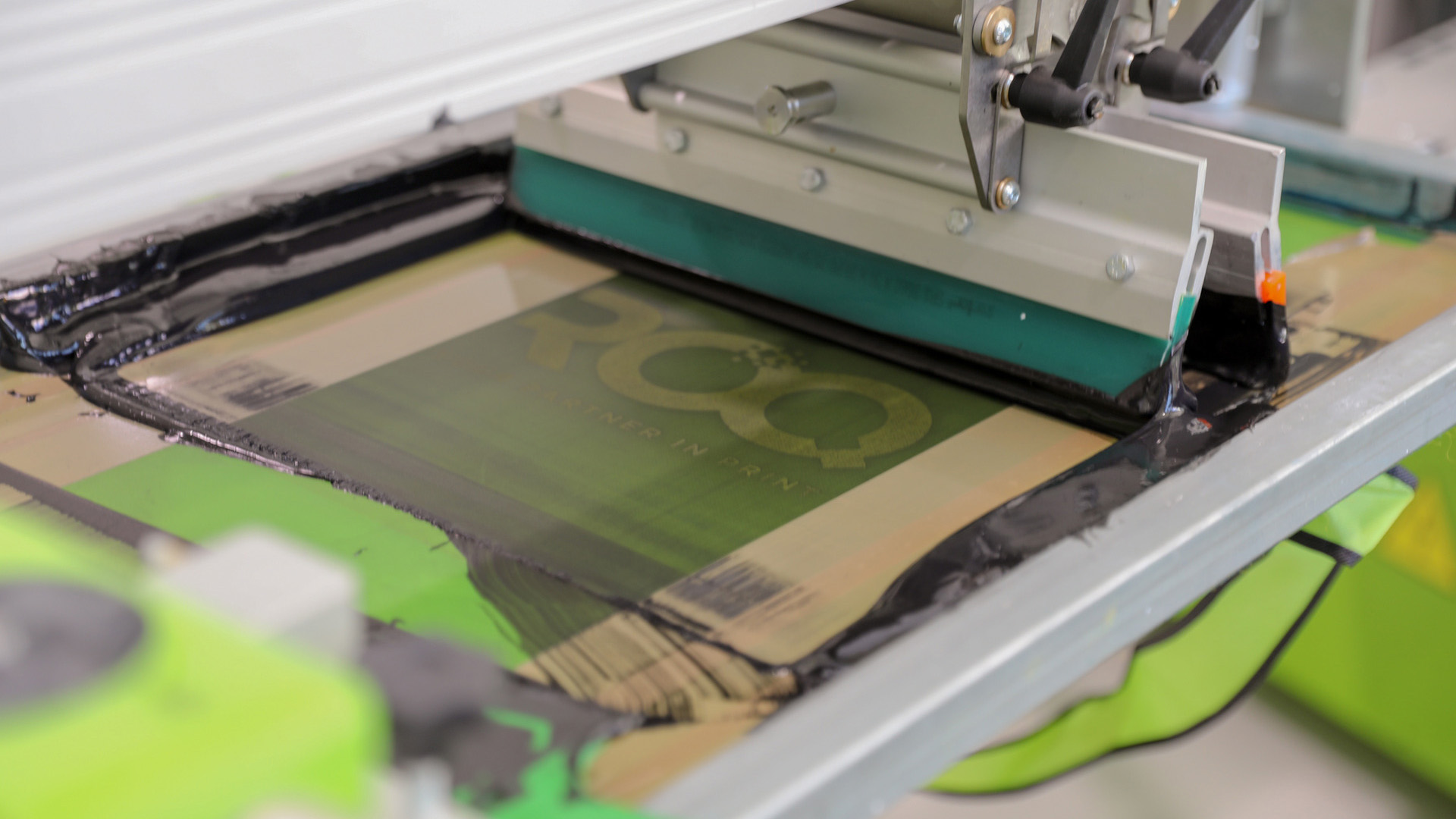

Squeegees with electric movement with ac variator;
Independent control panel on all print heads;
Choice of pneumatic screen holder: ”U” clamp or pin system;
Print head independent elevation;
AC servo-motor rotation system;

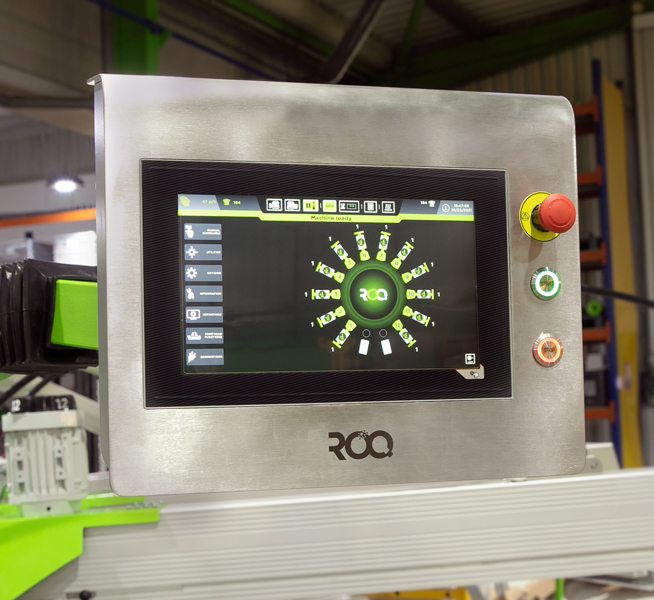

Central control panel with Polychromatic LCD touch screen (10”);
Micro registration screen system with vernier scale;
Individual controls for managing print and flood speed, height and angle of the squeegee, and stroke length.

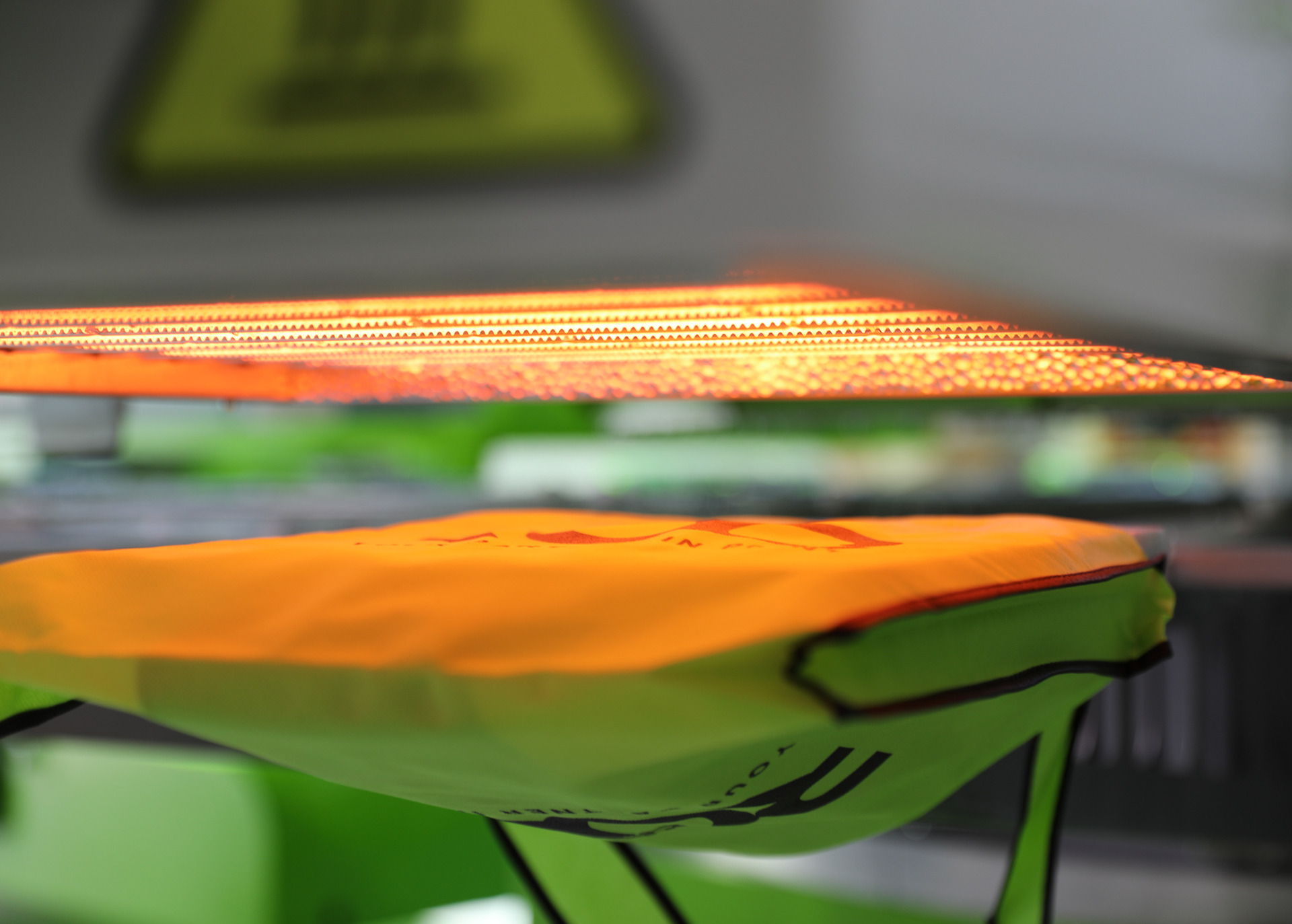

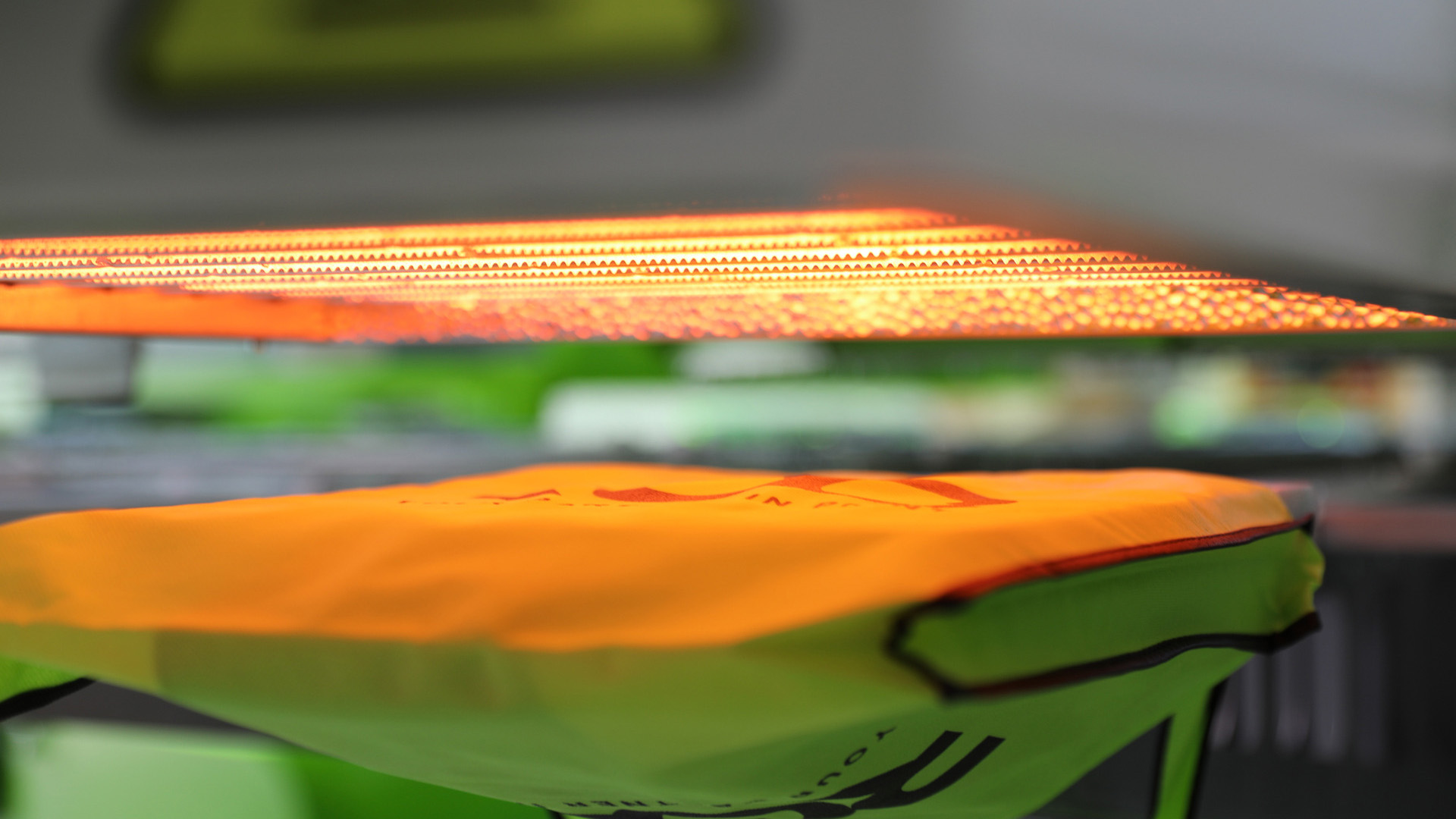

Placement of the Flash Cure units under the print head.

Description
We went made sure to keep the normal traits of any ROQ screen-printing machine. The ROQ Next is a new machine with a lot of proven technology so the registration capabilities of the Next are the same as per the You and the ECO. The ROQ Next has a maximum speed of 1200 pieces per hour. It presents an independent printhead lift, this boosts its speed and work quality, especially when working with water-based inks.  The print heads have a high lift position for cleaning this improves the life of every printer.
Low and easy maintenance and we also worked to have as many universal parts as possible because we understand the value of a fast procurement of parts. Independent controls in each print head for all the normal functions such as print and flood speed, height, angle of the squeegee, and stroke length. With a maximum of 20 pallets and 18 colors, the ROQ Next is a machine that you can count on to solve any screen-printing challenge. It's fast, accurate, and it comes with the technology you want!

ROQ NEXT

P08 XL

P10 XL

P12 XL

P14 XL

P16 XL

P18 XL

P20 XL

number of colors (max.)

6

8

10

12

14

16

18

number of pallets

8

10

12

14

16

18

20

number of flash cure connection units (optional)

3 4

5

6 7 8 9

maximum production (pieces/h) *

1200

compr. air consumption (l/min. 7 bar) **

7 l/min - 0,2 cfm

maximum consumption (kVA) ***

4

4,5

5,5

6

7

7,5

8

machine diameter (mm/feet)

4325/14.2’

4650/15.3’

5200/17.1’

5450/17.11’

5900/19.4’

6350/20.10’

7000/22.12’

total height (mm/feet)

2179/7.2’

2311/7.7’

2339/7.8’

2354/7.7’

2452/8.1’

2483/8.2’

2483/8.2’

minimum width of the base (mm/feet)

1145/3.9’

1632/5.4’

1632/5.4’

1950/6.5’

2050/6.9’

2300/7.7’

2300/7.7’

machine weight (kg/pounds)

1050/3.5’

1650/3638

1880/4145

2400/5291

2600/5732

3150/6945

3650/8047

* One squeegee with flooding for a A4 print.
** Consumption of each printhead: 65l/min 2,3 cfm in 20 pieces/min.
*** These values exclude the consumption with flash-curing, they should be calculated separately, taking into account the number and model of the flash cure employed on the machine. See flash cure page.
- Power supply: 230V+N, 2x230V, 3x230V, 3x400V+N in 50Hz or 60Hz.
