A 100% digital printing machine,
optimized for web-to-print.
A 100% digital printing machine, optimized for web-to-print.
|Pallets||16 of 400 x 490 / 15,74'' x 19,29''|
|Productivity (pieces per hour)||up to 200|
|Pallets type||Special pallets with fabric hold down system|
|RIP software||RoqStudio and RoqServer Special Edition|
|Jobs management software||RoqNowSW|
|Operating conditions||20ºC - 25ºC/68ºF - 77ºF, humidity 50-70% non-condensing|
|Eletrical requirements||3x400V AC 50 Hz, 55 kVA, 3ph + N + PE|
|Compressed air pressure||0.7 Mpa 120L/min., 17.6 cfm|
|Ink type||Aquaris (by Dupont Artistri) - water based pigment|
|WHITE & CMYK+2 DIGITAL STATION||H12C04 H18W/ H18C06 H18W|
|Maximum print area (mm/inch)||380 x 450/ 14.6'' x 17.2''|
|Carriage width (mm/inch)||380/ 14.6''|
|Number of printheads||12 or 18 per station|
|Printhead technology||Piezoeletric/Fujifilm Dimatix|
|Advisable printing gap range (mm/inch)||3 - 4**/ 0.11'' - 0.16''|
|Printing height range (mm/inch)||3 - 20/ 0.12'' - 0.78''|
|Range of resolutions (dpi)||
508x200 dpi; 508x400 dpi; 508x600 dpi; 508x800 dpi; 508x1200 dpi; 508x1600 dpi; 508x2000 dpi; 508x2400 dpi
635x200 dpi; 635x400 dpi; 635x600 dpi; 635x800 dpi; 635x1200 dpi; 635x1600 dpi; 635x2000 dpi; 635x2400 dpi
|Carriage swath (mm/inch)||240/ 9.45''||380/ 15''|
|Method of deposition/ number of nozzles||sprinkler/ 2 or 8 nozzles|
|Tank size (L)||5|
|Pre-treatment lay down||10 - 50g|
|Control method||Speed Control + uni and bidirectional|
|Number of heating lamps||6 x 1200W|
* productivity for the web to print (all jobs different), for resolution of 508x1200 dpi (6 pass) in the colour station, in the bidirectional mode at normal speed.
** the greater the distance between the surface to be printed and the printhead, the lower the definition.
•DTG printing inline process
•Maximum production up to 200 pieces/hour (depending on print size and number of passes)
•Fully automated workflow from order until print is finished
•Ready for the Web-to-Print markets
•Only one operator needed
•Industrial printheads with piezoelectric technology and built-in ink recirculation
•CMYK+2 station with water based pigmented ink and Digital white station
•Maximum resolution 635 x 2400 DPI
•Print height range of 3 to 20 mm
•Z-axis adjustable to the height of the fabric to be printed
•Tailored RIP software – ROQ Studio powered by Neostampa
•RIP with function to decrease the white layer relative to the color layer in order to maintain perfect registration between both layers

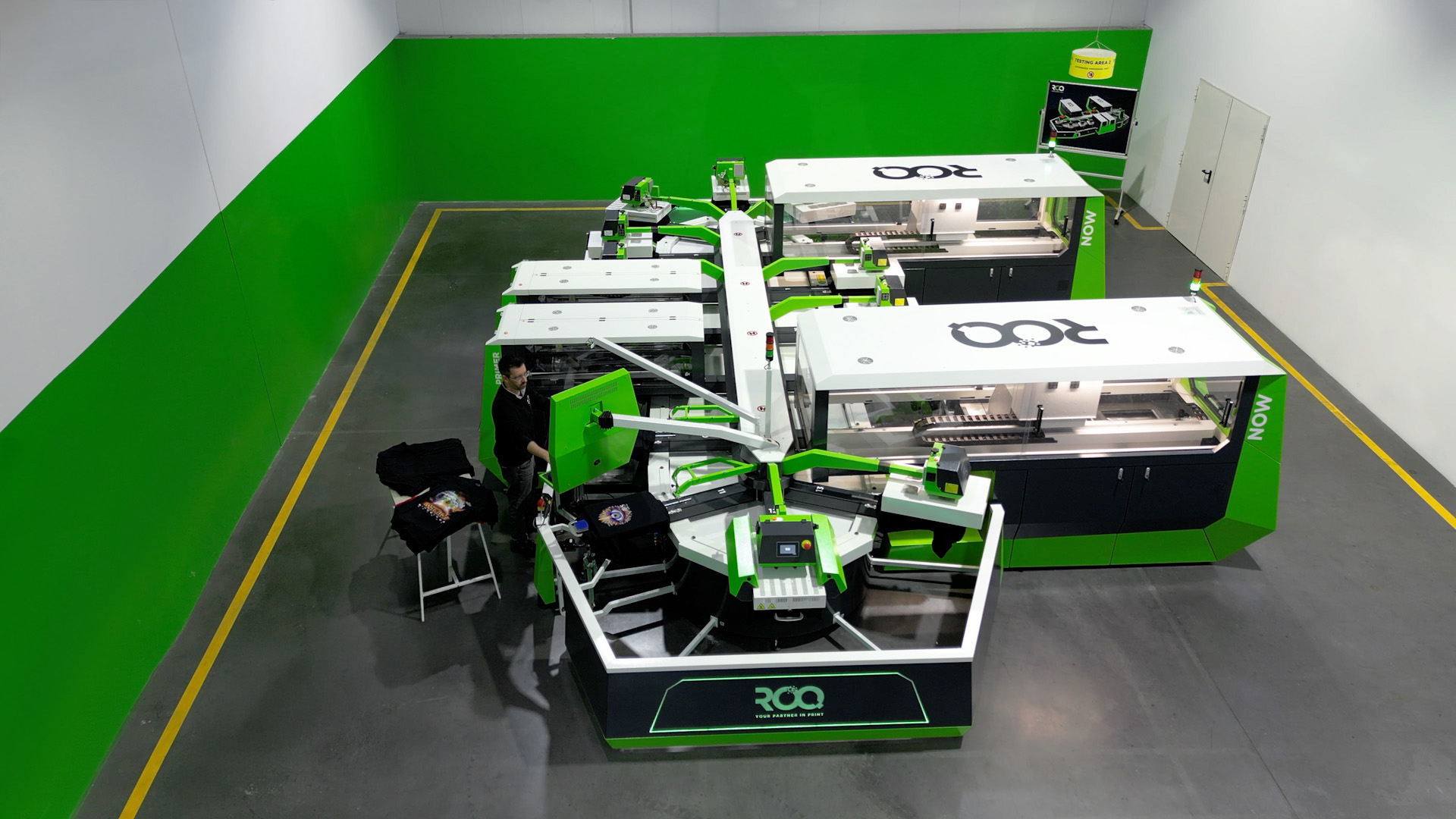

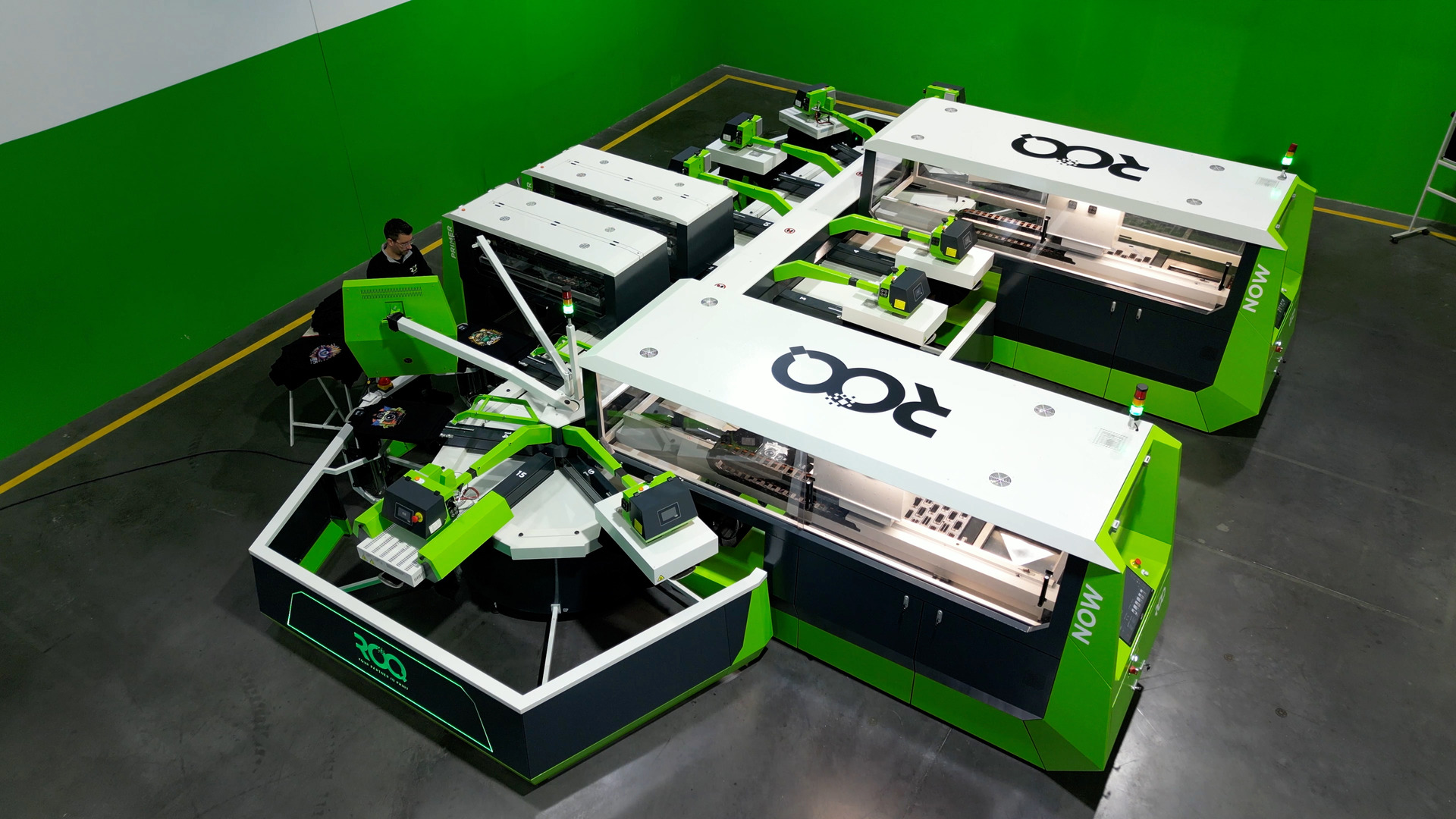

With the web-to-print market in view, ROQ NOW is the 100% machine, capable of meeting the most demanding orders requiring only one operator.
Our own software allows it to combine with the ERP software that manages your production, improving order management exponentially. Because of this automated workflow you will be able to take on a wider range of jobs, regardless of order size, confidently meeting any demands you may have in the process.
