Fusion between screen-printing
and digital printing.
Fusion between screen-printing and digital printing.
|Printhead techonology||Piezoeletric/FujiFilm Dimatix|
|Number of printheads||4 to 12 per station||12 to 18 per station|
|Advisable printing gap range (mm/inch)||3 - 4* / 0.11'' - 0.16''|
|Printing height range (mm/inch)||3 - 20 / 0.12'' - 0.78''*|
|Max.printing area (mm/inch)||400x700 /15.7''x27.6''||500x700 /19.7''x27.6''|
|Max. productivity (pieces/h)||130**||320**||320 in 380x300 mm|
|Range of resolution (dpi)||
508x200 dpi; 508x400 dpi; 508x600 dpi; 508x800 dpi; 508x1200 dpi; 508x1600 dpi; 508x2000 dpi; 508x2400 dpi
635x200 dpi; 635x400 dpi; 635x600 dpi; 635x800 dpi; 635x1200 dpi; 635x1600 dpi; 635x2000 dpi; 635x2400 dpi
|Carriage Swath (mm/inch)||120 /4.72''||240 /9.45''||380 /15''|
|RIP Software||ROQ Studio powered by Neostampa|
|Operating conditions||20º - 25ºC /68-77ºF, humidity 50-70% non-condesing|
|Power supply||AC 100-240V, 50Hz, 60Hz, 3300W***|
* the greater the distance between the surface to be printed and the printhead, the lower the definition.
** productivity for a job with A4 size, printed at a resolution of 508x800 dpi (4 pass), bidireccional at normal speed in a ECO circular machine.
*** the advertised power is only for the digital station without any other equipment.
•Max. Productivity 320 pieces/hour (depending on print size and number of passes)
•Perfect synchronization with an automatic screen printing machine;
•Intuitive to use
•Industrial printheads with piezoelectric technology and built-in ink recirculation
•CMYK or CMYKGR
•Maximum resolution 635X2400 DPI
•XL print area
•Z Axis movement range: 20 mm
•Z-axis adjustable to the height of the fabric to be printed
•Uses water based pigmented ink with Eco Passport certification
•Tailored RIP software – ROQ Studio powered by Neostampa

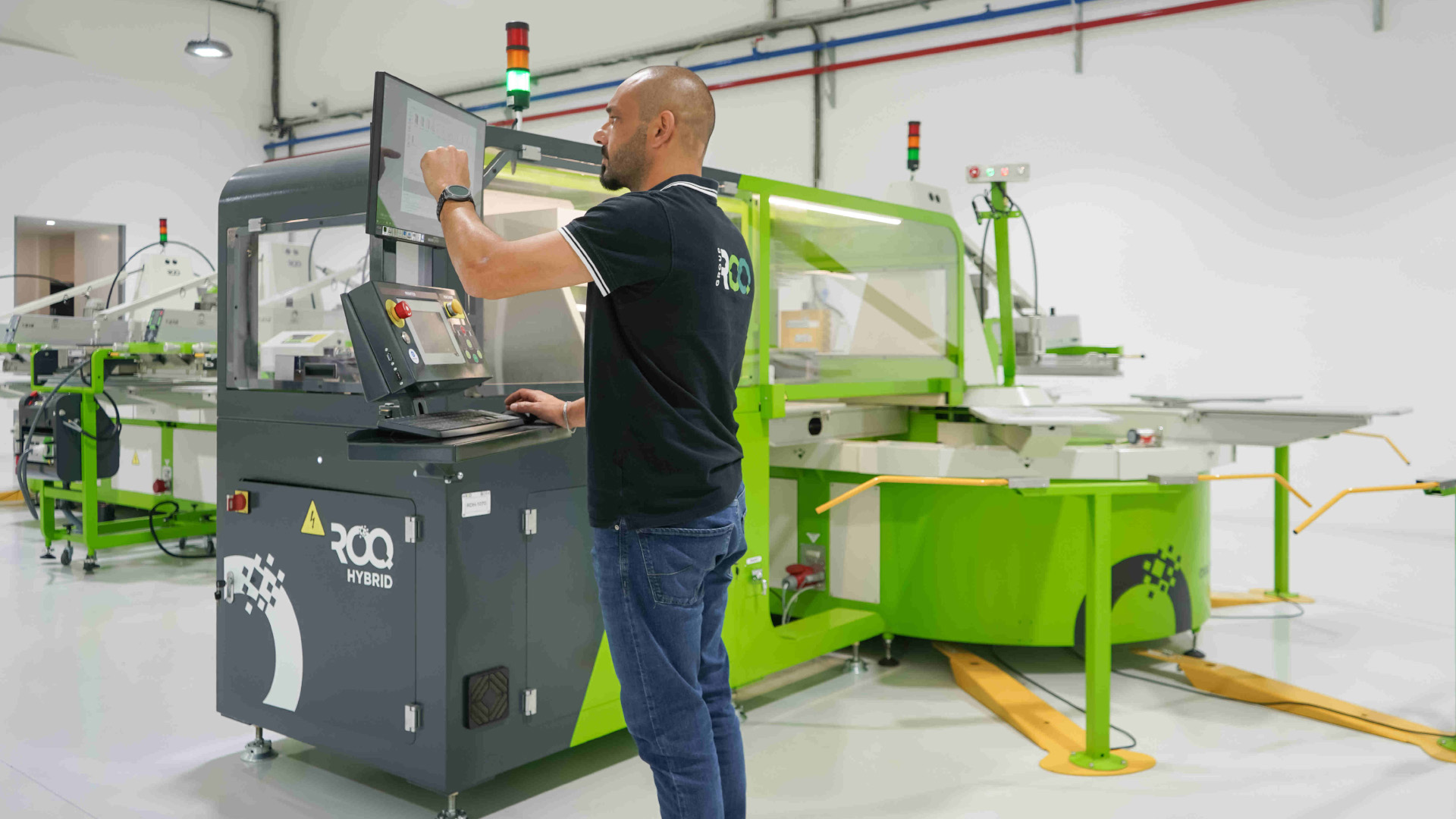

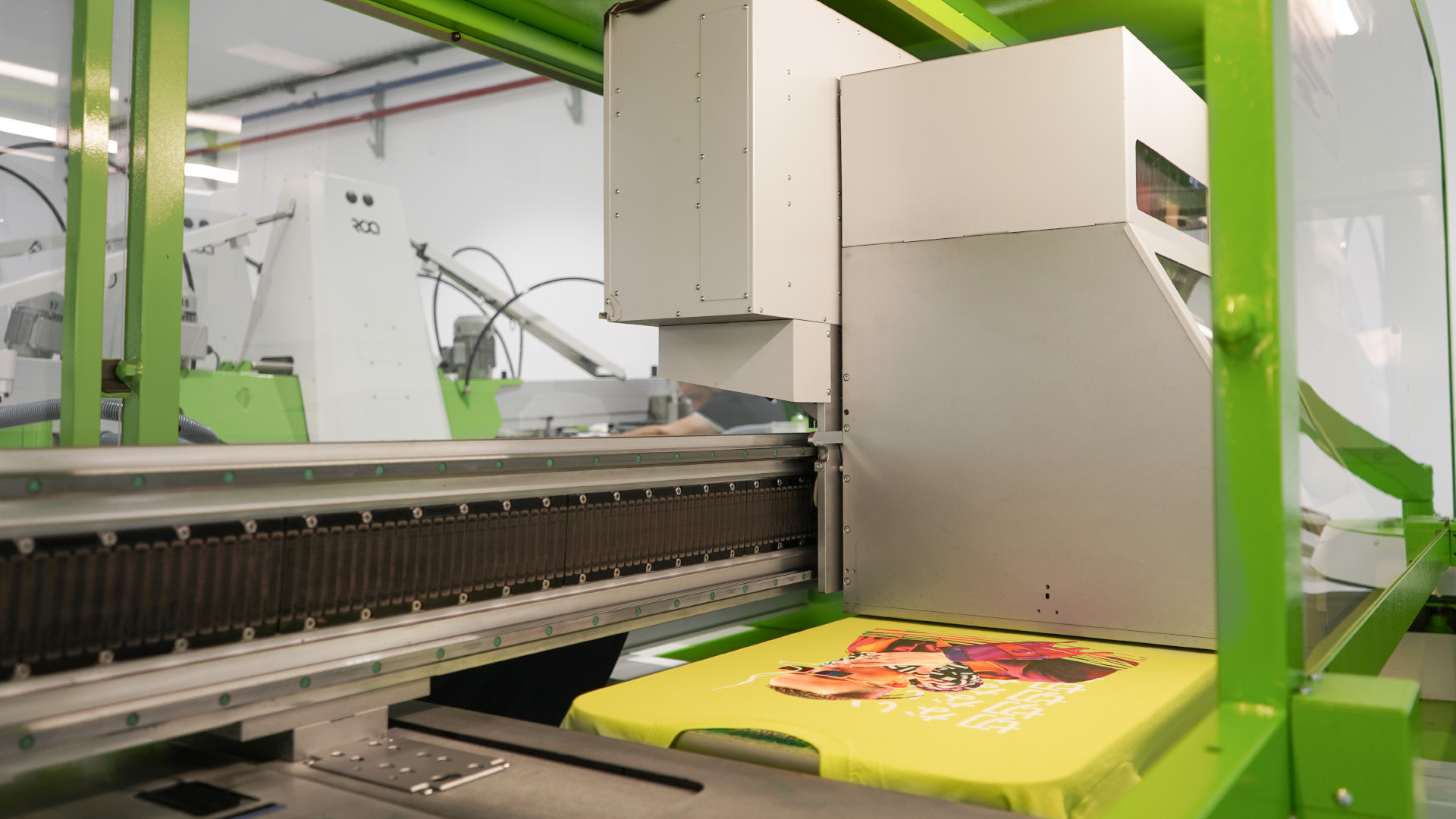

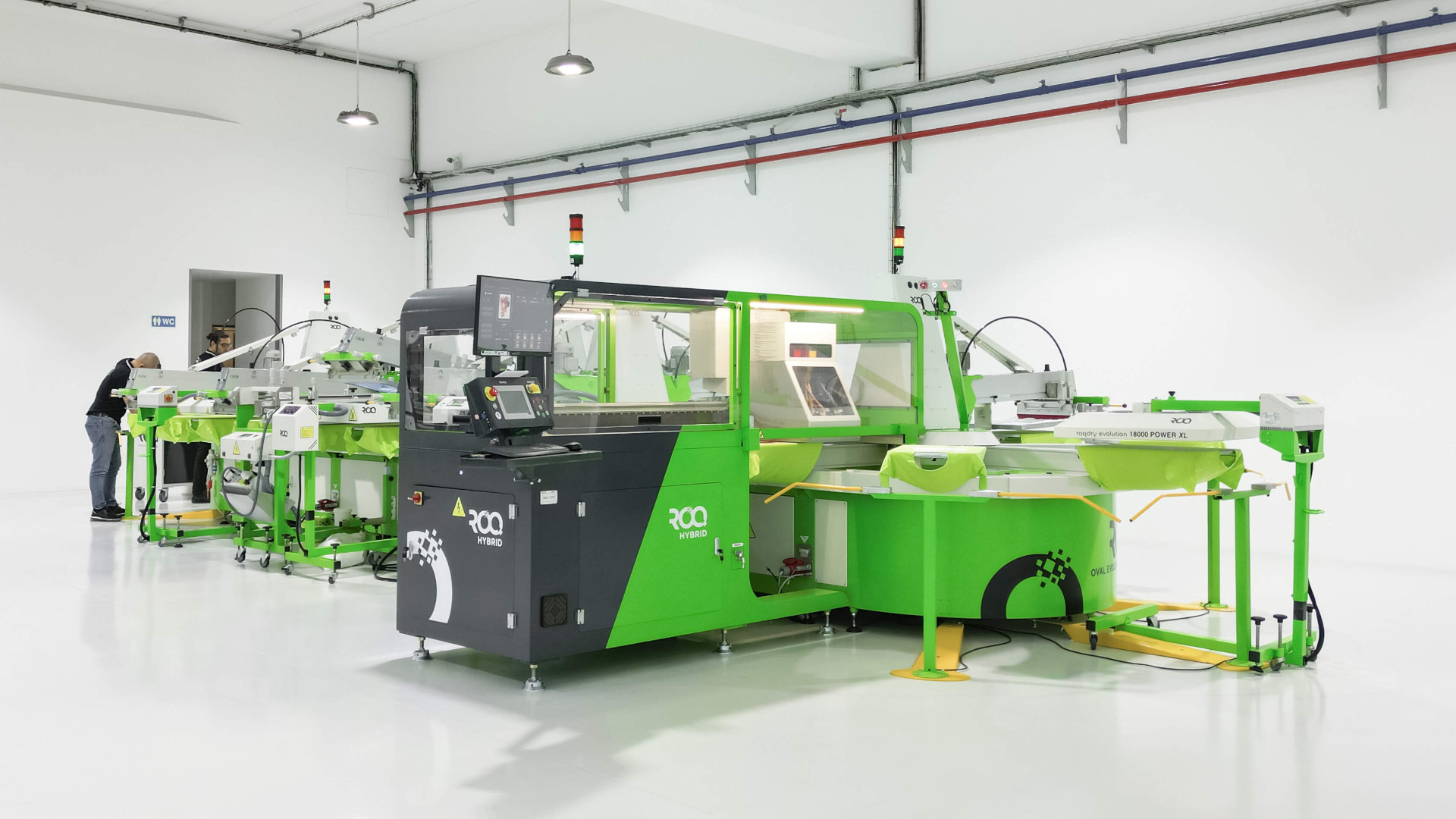

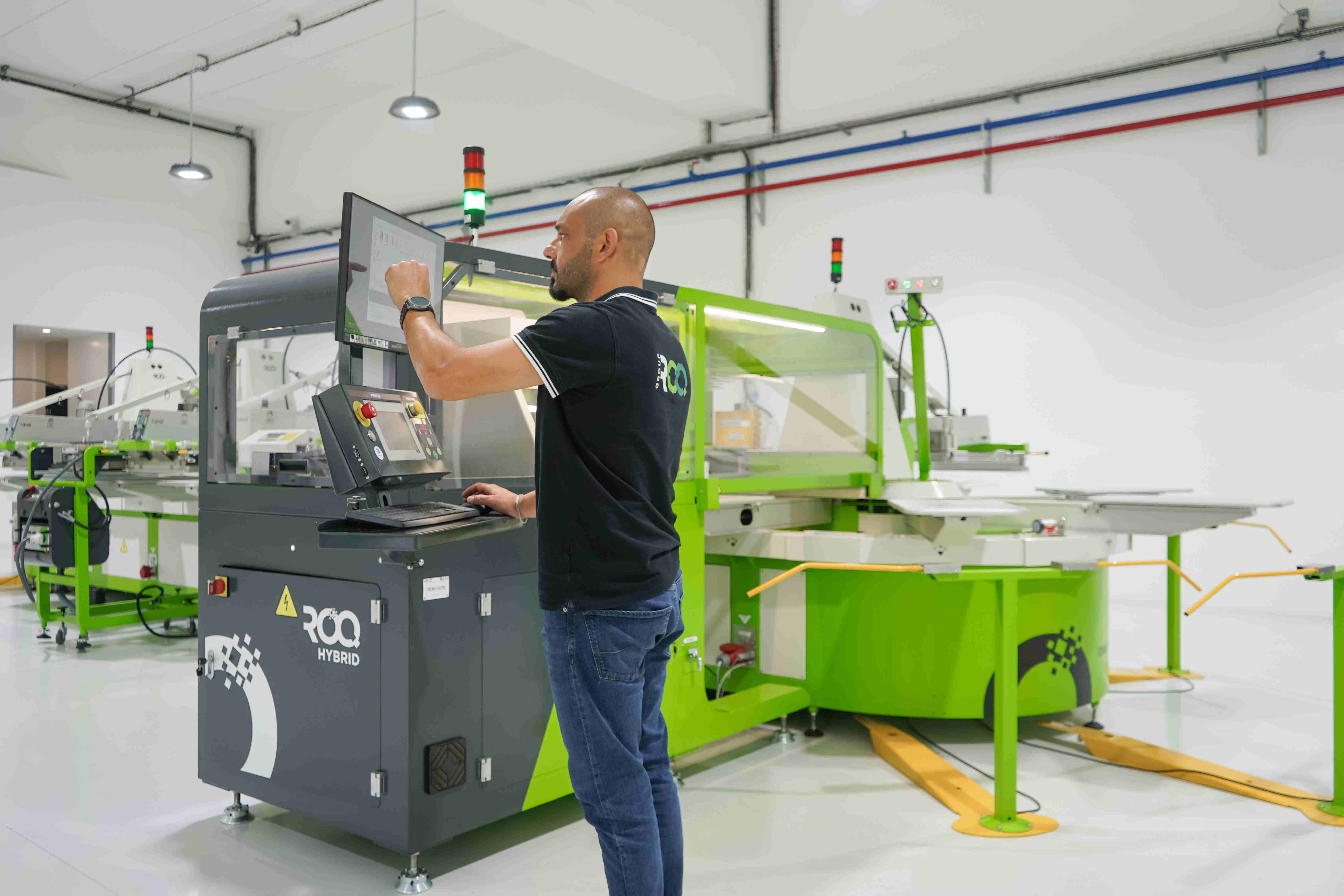

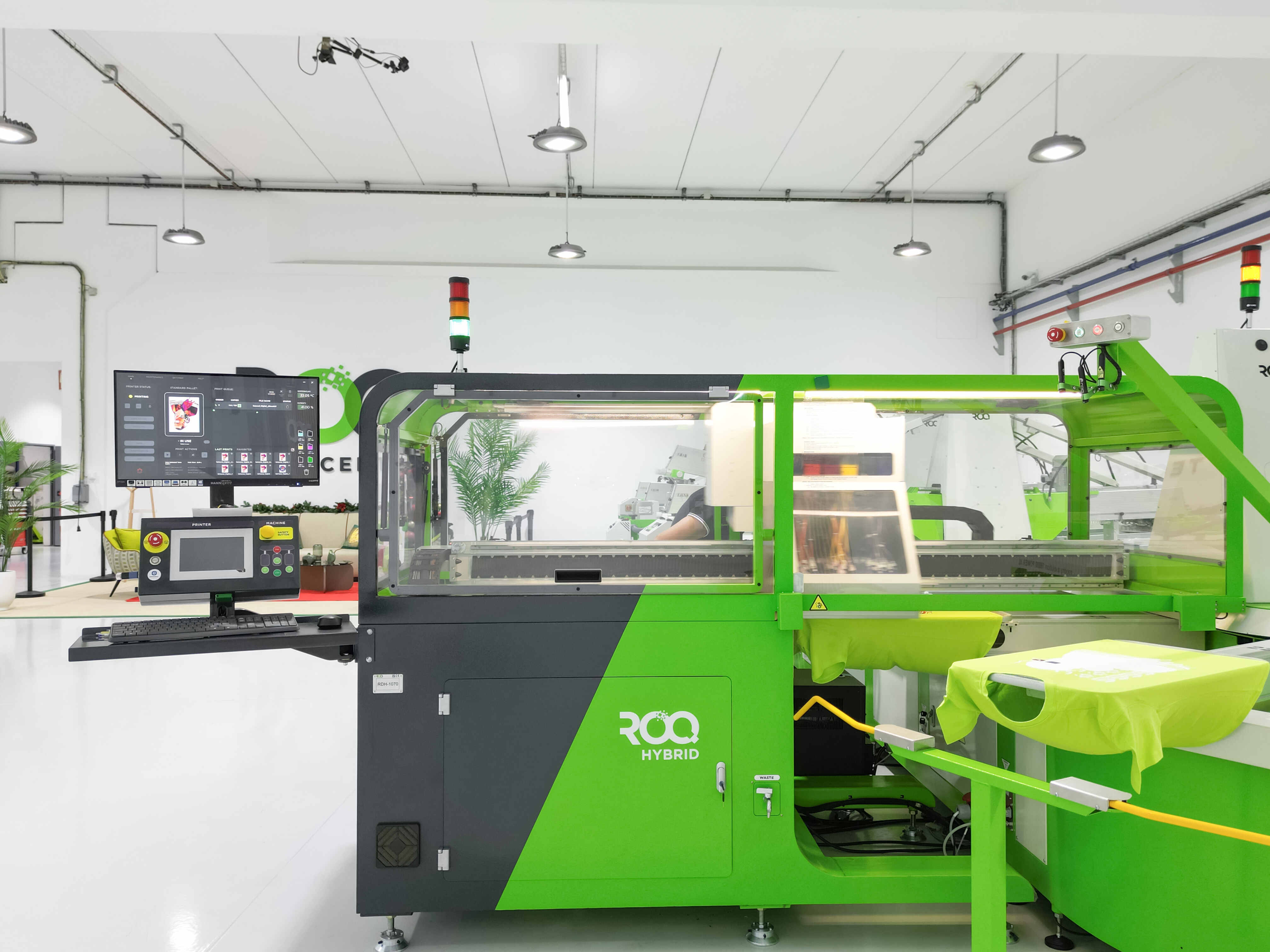

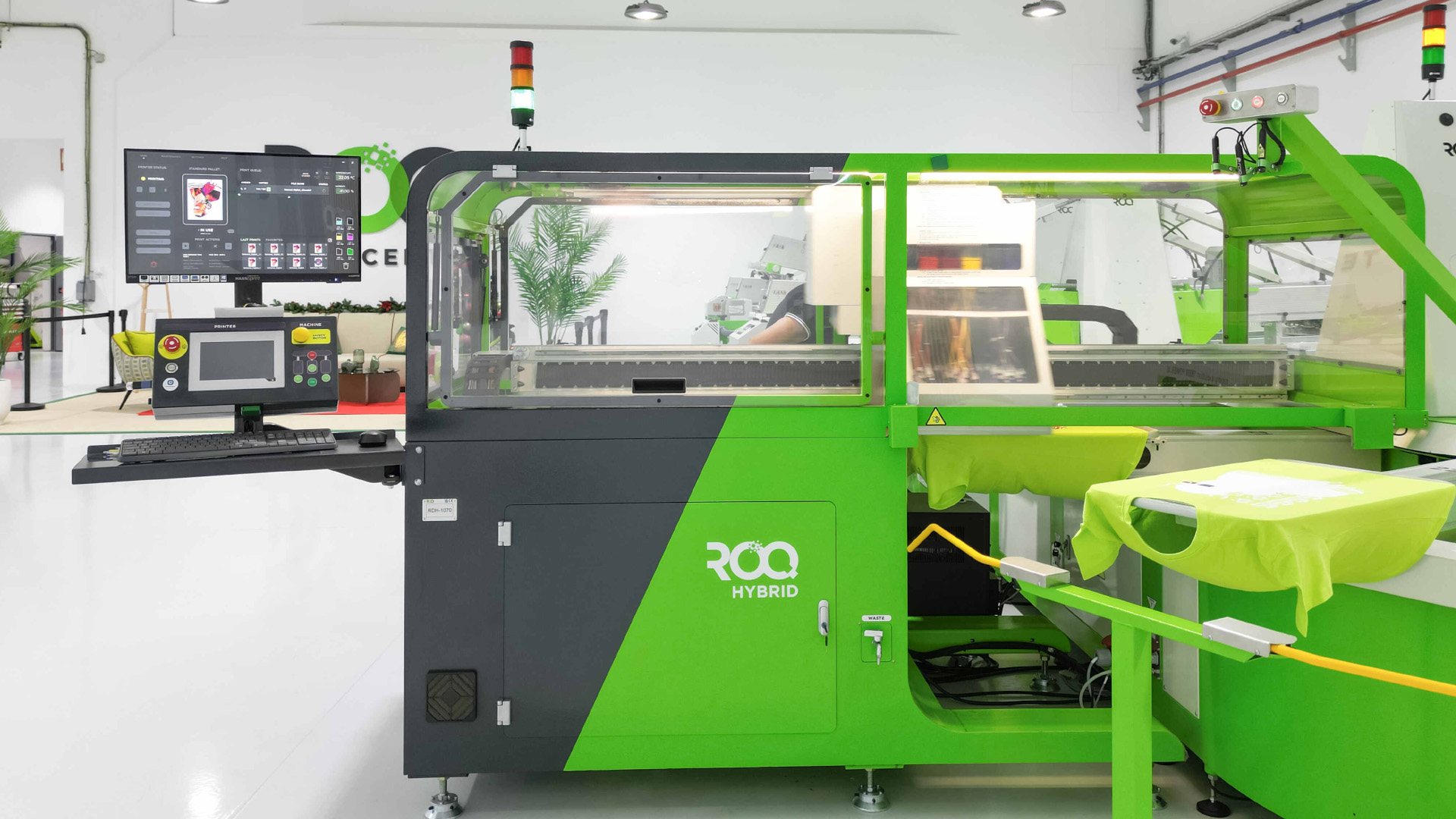

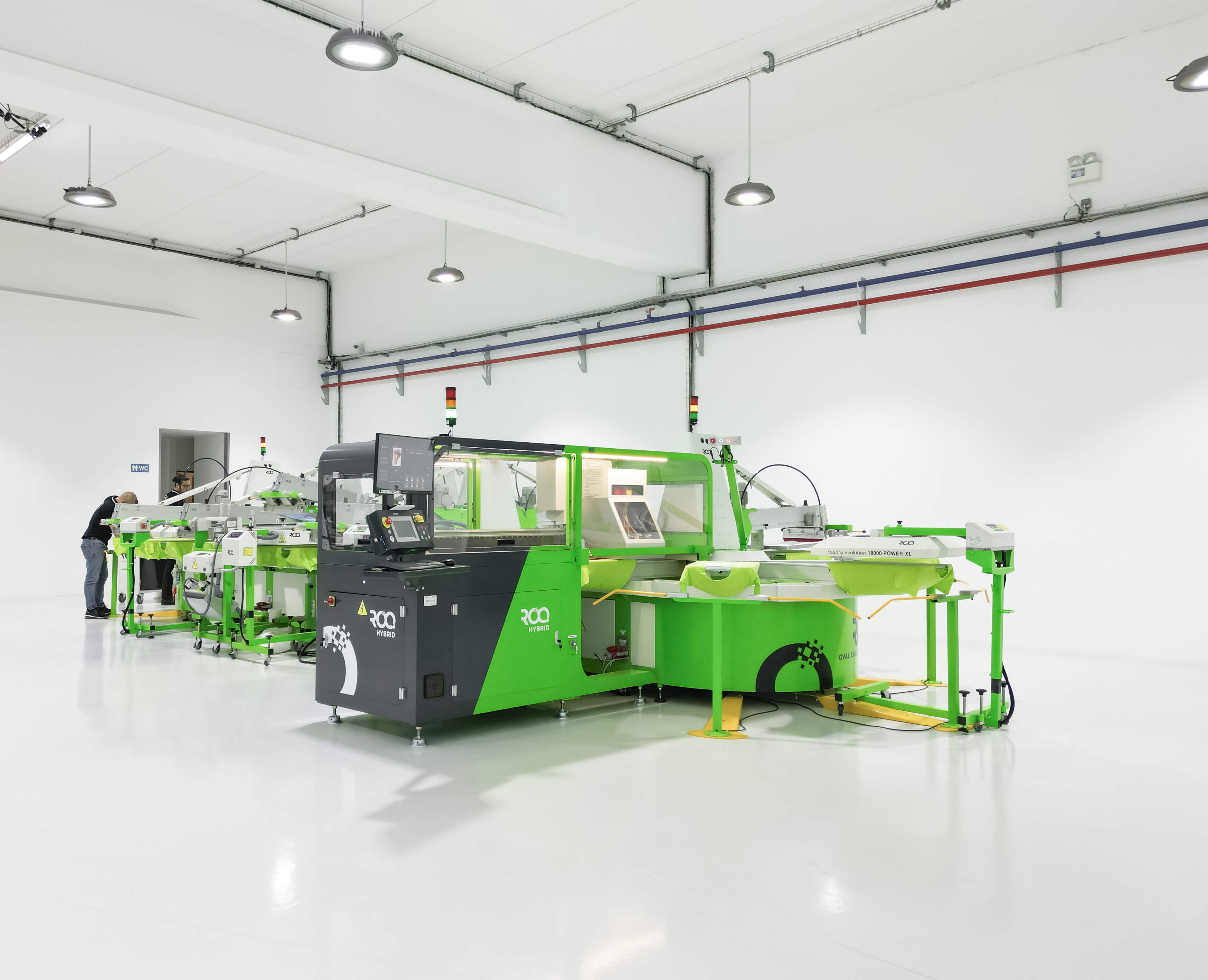

The ROQ Hybrid, which requires a screen-printing machine to operate, allows the traditionally faster screen method to handle the normally time-consuming tasks. This process leaves all the color to digital, which offers a wider color gamut and more resolution options that you simply can't find in screen printing.
This unique combination utilizes the best of both worlds and allows all kinds of combinations and methods such as flock, foil, glitter, crackle, high density, etc.
