ROQ HYBRID

The ROQ Hybrid is a fusion between screen-printing and digital printing, combining DTG with Screens.

Technical Specs

Max. Productivity 320 pieces/hour (depending on print size and number of passes)
Perfect synchronization with an automatic screen printing machine;
Intuitive to use

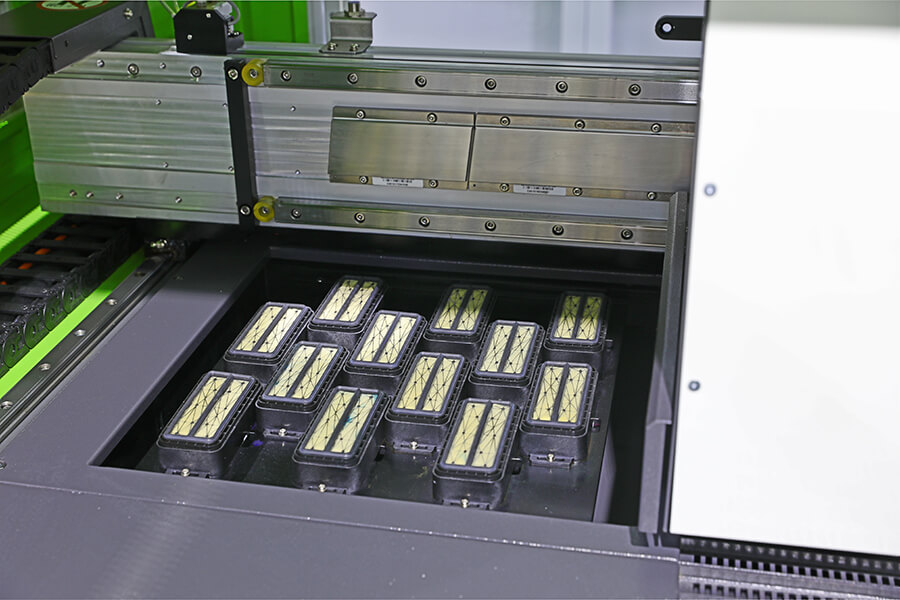

Industrial printheads with piezoelectric technology and built-in ink recirculation
CMYK or CMYKGR
Maximum resolution 635X2400 DPI
XL print area
Z Axis movement range: 20 mm
Z-axis adjustable to the height of the fabric to be printed
Uses water based pigmented ink with Eco Passport certification
Tailored RIP software – ROQ Studio powered by Neostampa

Description

The ROQ Hybrid is a fusion between screen-printing and digital printing, combining DTG with Screens. It allows for the speedy screen-printing method to deal with some of the more time-consuming processes, leaving all the colour in charge of digital that offers a larger colour gamut, better resolution options and outputs that you can't find in screen-printing. It also brings the best of both worlds making possible a combination of digital printing with special effects such as flock, foil, glitter, crackle, high density, discharge and more.

When asked about the main benefits of choosing a Hybrid, one of our clients said that by going for a hybrid solution, you open your business to a myriad of options that traditionally were just impossible to do and that, within the hybrid printing market, the wide-format our machine has and high speeds it's capable of doing, ultimately made him decide for yet another ROQ printing solution.

During our interview, he added a more in depth explanation:

“As the print method is digital, complex designs can be printed with ease -for example, photographic prints or very intricate designs which other print methods would find impossible to achieve. The beauty of the hybrid is it is able to print specifics which digital cannot, we can pick out a particular pantone or a part of the design and screen print or embellish, within the same print process, allowing for no limitations including neons, glitters, foils, and all sorts of embellishments within the print. Hybrid screen printing is not limited to just cotton, its versatility allows screen printers to digitally print on almost any fabric, including polyester and synthetic materials.” –  basicprints.co.uk

“Why choose between screen printing or digital when you can have both?”

With our ROQ Hybrid, your business will be able to operate within the web-to-print market with ease as it will be capable of dealing with several small orders at a time by making use of its fast set up times and ability to print any kind of complex artwork that might come up in your orders.

ROQ Hybrid

H04C04 H06C06 H08C04 H12C06 H12C04 H18C06
Printhead techonology Piezoeletric/FujiFilm Dimatix
Number of printheads 4 to 12 per station 12 to 18 per station
Ink set CMYK/CMYK+2
Advisable printing gap range (mm/inch) 3 - 4* / 0.11'' - 0.16''
Printing height range (mm/inch) 3 - 20 / 0.12'' - 0.78''*
Max.printing area (mm/inch) 400x700 /15.7''x27.6'' 500x700 /19.7''x27.6''
Max. productivity (pieces/h) 130** 320** 320 in 380x300 mm
Range of resolution (dpi)

508x200 dpi; 508x400 dpi; 508x600 dpi; 508x800 dpi; 508x1200 dpi; 508x1600 dpi; 508x2000 dpi; 508x2400 dpi

635x200 dpi; 635x400 dpi; 635x600 dpi; 635x800 dpi; 635x1200 dpi; 635x1600 dpi; 635x2000 dpi; 635x2400 dpi

Carriage Swath (mm/inch) 120 /4.72'' 240 /9.45'' 380 /15''
RIP Software ROQ Studio powered by Neostampa
Operating conditions 20º - 25ºC /68-77ºF, humidity 50-70% non-condesing
Power supply AC 100-240V, 50Hz, 60Hz, 3300W***

* the greater the distance between the surface to be printed and the printhead, the lower the definition.

** productivity for a job with A4 size, printed at a resolution of 508x800 dpi (4 pass), bidireccional at normal speed in a ECO circular machine.

*** the advertised power is only for the digital station without any other equipment.

ROQ HYBRID in action
