ROQDRY RUN

ROQ Dry RUN is a flash cure unit that answers to the most demanding jobs.
Technical Specs

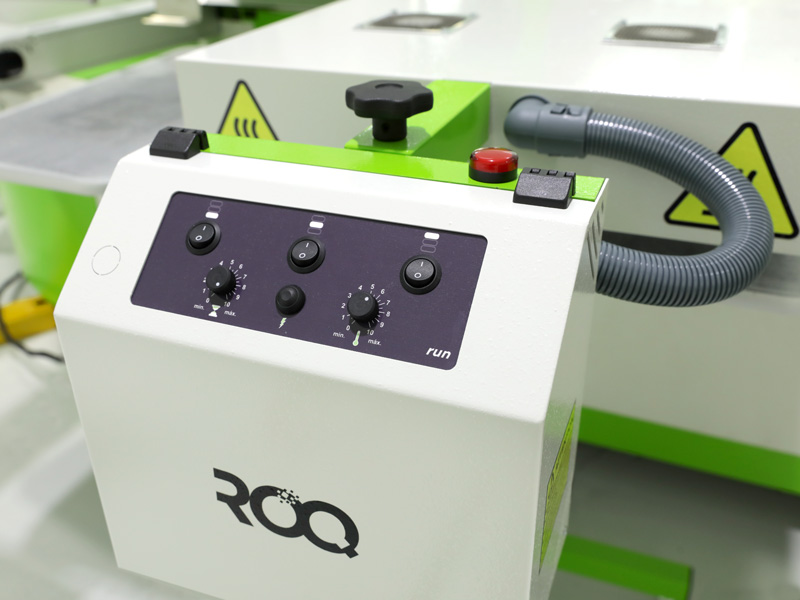

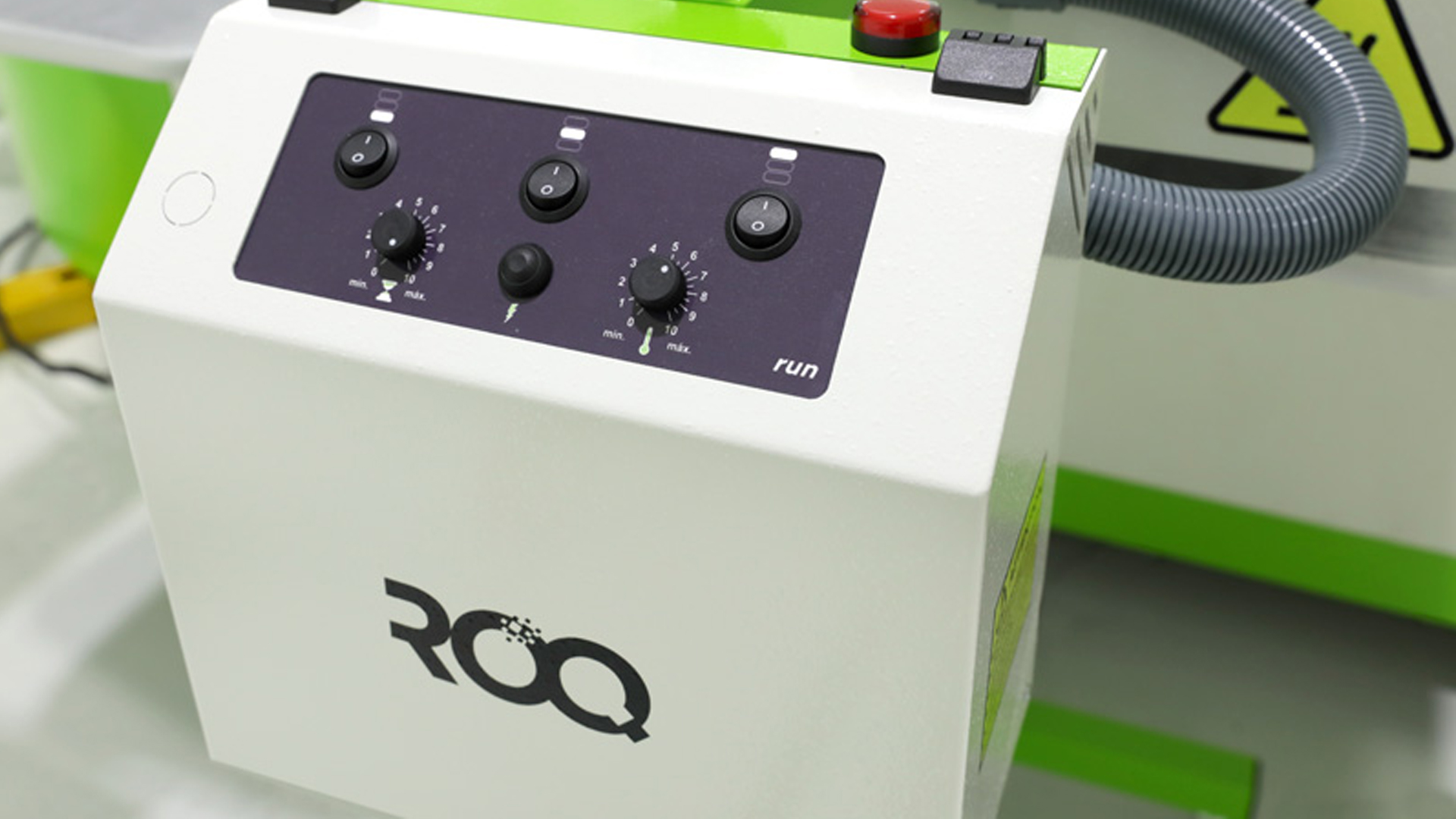

Analogic control panel;
3 selectable drying areas;
Controlable temperature;
Heat transmission by convection and radiation;
Suitable for larger drying areas;
Test function;
Several power options available;
Description

ROQ Dry RUN is a flash cure unit that answers to the most demanding jobs.

After exploring, experimenting, and evolving flash unit technology, ROQ decided to create the ROQ Dry RUN.

A powerful and versatile platform built and optimized for performance.

ROQDRY RUN

3000 S

9000 M

14400 XL

18000 XL+

20400 2XL

25500 3XL

25500 4XL

área de secagem (mm/pol)

200x200 /
7.9”x7.9”

400x500 / 16”x20”

500x700 / 20”x28”

600x800 / 24”x31”

700x1000 / 28”x39”

800x1100 / 31”x43”

900x1100 /

35”x43”

alimentação (VAC)

(1) (2) (3) (4)

(3) (4)

potência (kVA)

3

9

14.4

18

20.4

25.5

25.5

potência/área (W/cm2)

7.5

4.5

4.11

3.75

2.91

2.90

2.58

lâmpadas

6 x 500

9x1000W

12x1200W

15x1200W

24x850W

30x850W

30 x 850W

ficha (mínima recomendada)

(1) (2) (3) (4) - 32A

(1) (2) - 63A

(1) (2) (3) - 63 A

(1) (2) - 125A

(3) - 63 A

(3) - 125A
(4) - 63A

(3) (4) - 32A

(4) - 32A

(3)- 63 A

(4)- 32 A

(4)- 63A

(4)- 32 A

A comprimento total (mm/pés)

815 / 2.67’

920/3"

1140/3.74"

1240/4.06"

1520/4.97"

1630/5.35"

1630 / 5.35’

B altura total (mm/pés)

1220 / 4"

C largura total (mm/pés)

625 / 2.05’

625/2.05"

625/2.05"

715/2.35"

835/2.74"

935/3.07"

1020 / 3.35’

(1) 230 VAC
(2) 2x230 VAC
(3) 3x230 VAC
(4) 3x400 VAC
