ROQDRY EVOLUTION

The ROQ flash – ROQ Dry Evolution, also known as EVO, is a flash cure unit that is extremely versatile.
Technical Specs

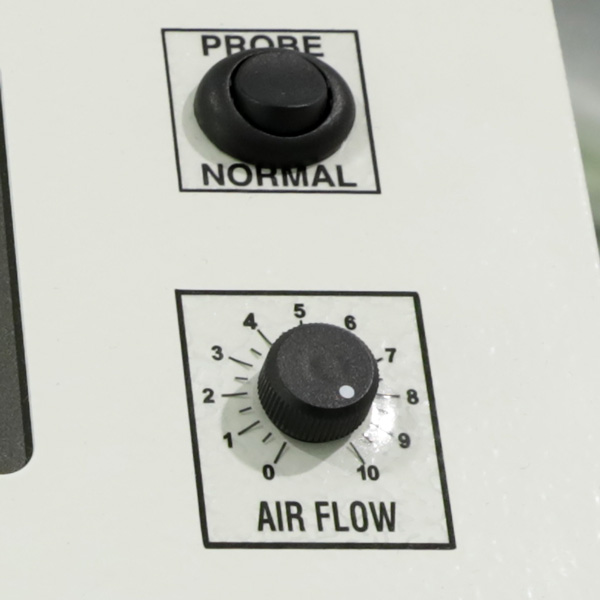

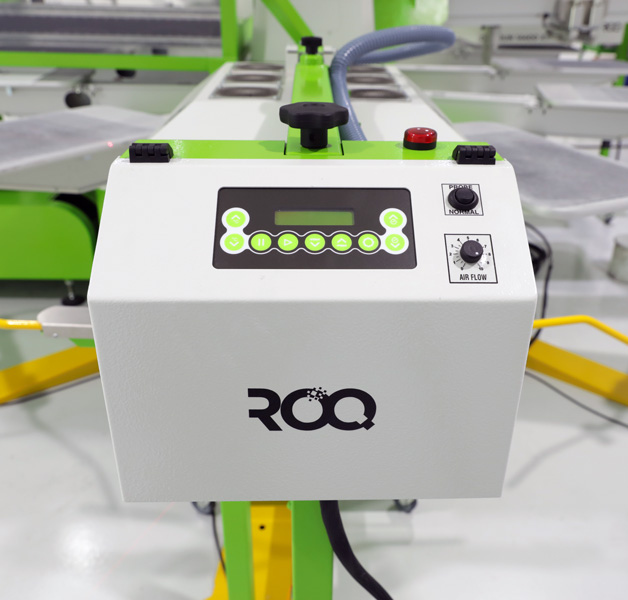

Digital control panel to regulate the time, the temperature and the area of drying;
Heat transmission by convection and radiation;
Suitable for larger drying areas.
Description

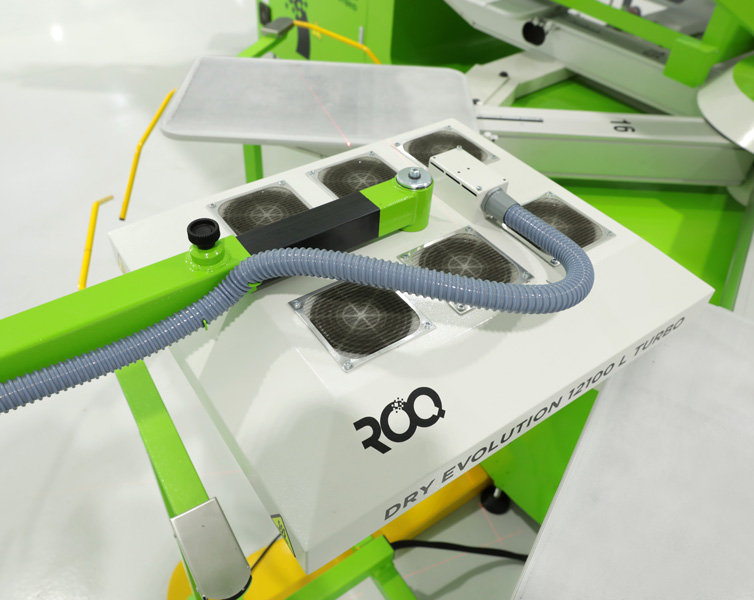

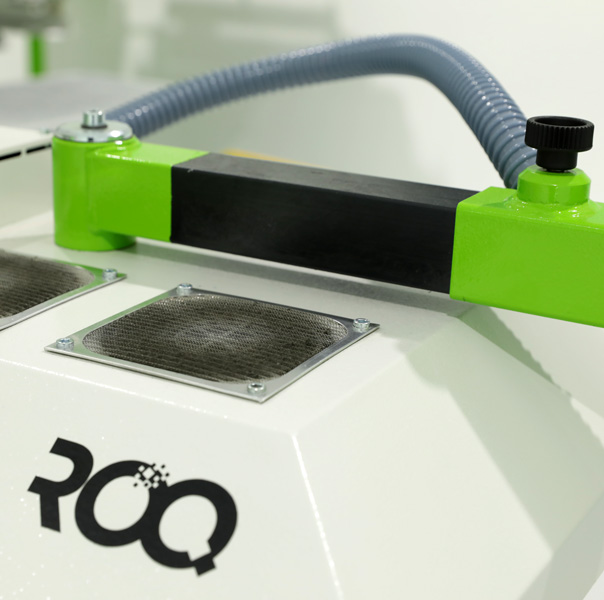

It was design with an extendable arm and a hood that rotates 90 degrees so that the EVO can adapt to any situation. The software allows for several EVO units to be turned on sequentially, this avoids energy spikes to your electrical structure.

ROQDRY EVOLUTION

12100 L

14400 XL

18000 XL+

20400 2XL

25500 3XL

25500 4XL

drying area (mm/inch)

450x550 / 17”x21”

500x700 / 20”x28”

600x800 / 24”x31”

700x1000 / 28”x39”

800x1100 / 31”x43”

900x1100 / 35”x43”

power supply (VAC)

(1) (2) (3) (4)

(3) (4)

max. consumption (kVA)

12.1

14.4

18

20.4

25.5

25.5

power/area (W/cm)

4.3

4.11

3.7

2.91

2.89

2.58

lamps

11x1100W

12x1200W

15x1200W

24x850W

30x850W

30x850W

plug (32A or 63A)

(1) (2) - 63A

(1)(2)- 125A

(3)- 63 A

(3)- 125 A

(3) (4) - 32A

(3)- 63 A

(4)- 32 A

(4)- 63A

(4)- 32 A

A total lenght (mm/feet)

1070/3.51"

1140/3.74"

1180/3.87"

1530/5.02"

1590/5.22"

1590/5.22"

B Total height (mm/feet)

1280/4.20"

1280/4.20" 1280/4.20" 1280/4.20" 1280/4.20" 1280/4.20"

C Total width (mm/feet)

625/2.05"

625/2.05"

715/2.35"

835/2.74"

935/3.07"

1020/3.35"

(1) 230 VAC
(2) 2x230 VAC
(3) 3x230 VAC

(4) 3x400 VAC
