ROQ IRON

ROQ Iron – Increasing the value of your prints
Technical Specs

Compatible with any ROQ automatic screen printing machine
Powered using the machine power connections
Temperature control
Max temperature 200ºC
Speed/pressure regulated by the print head
Press with 400mm width and 600mm

Description

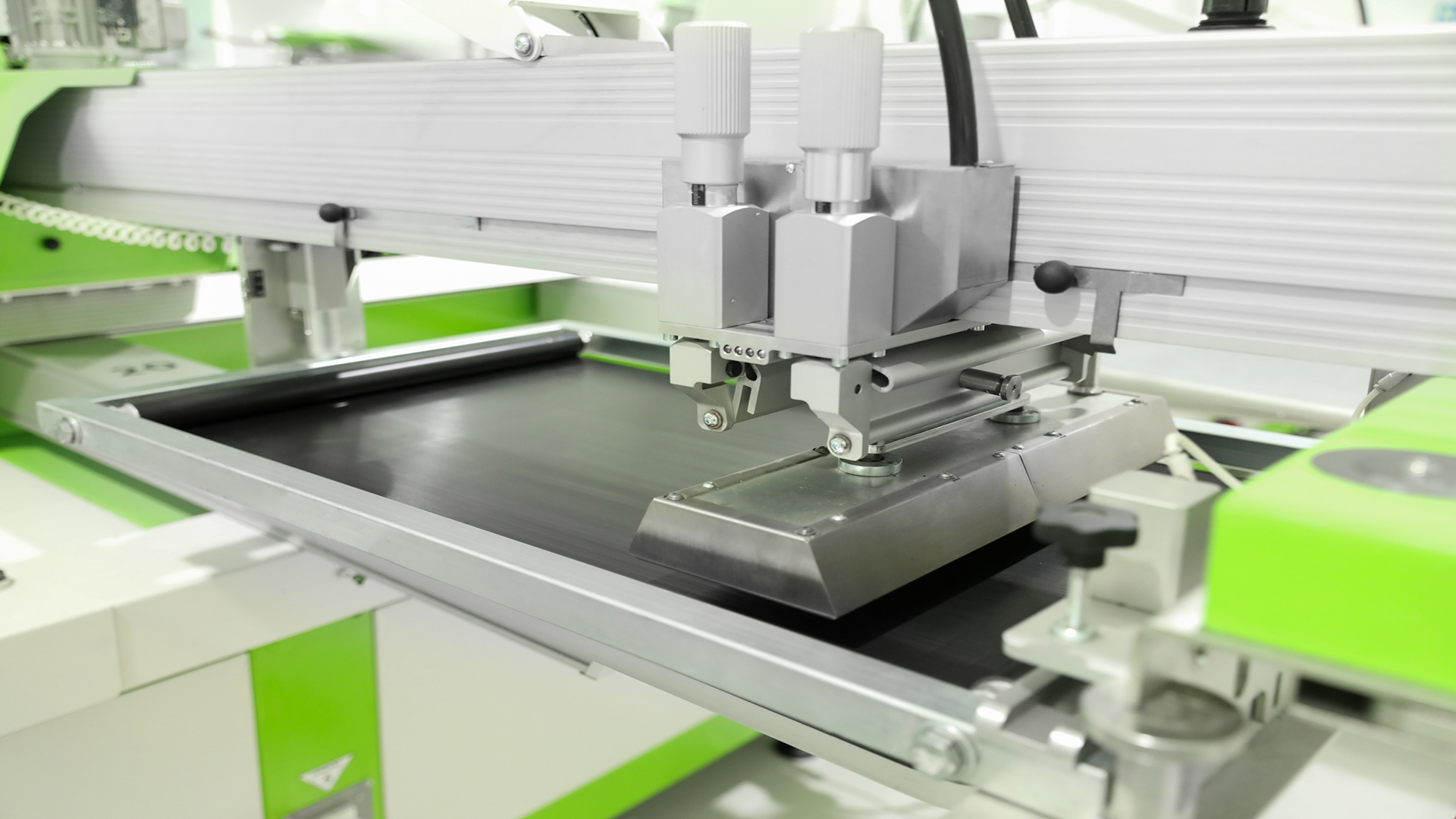

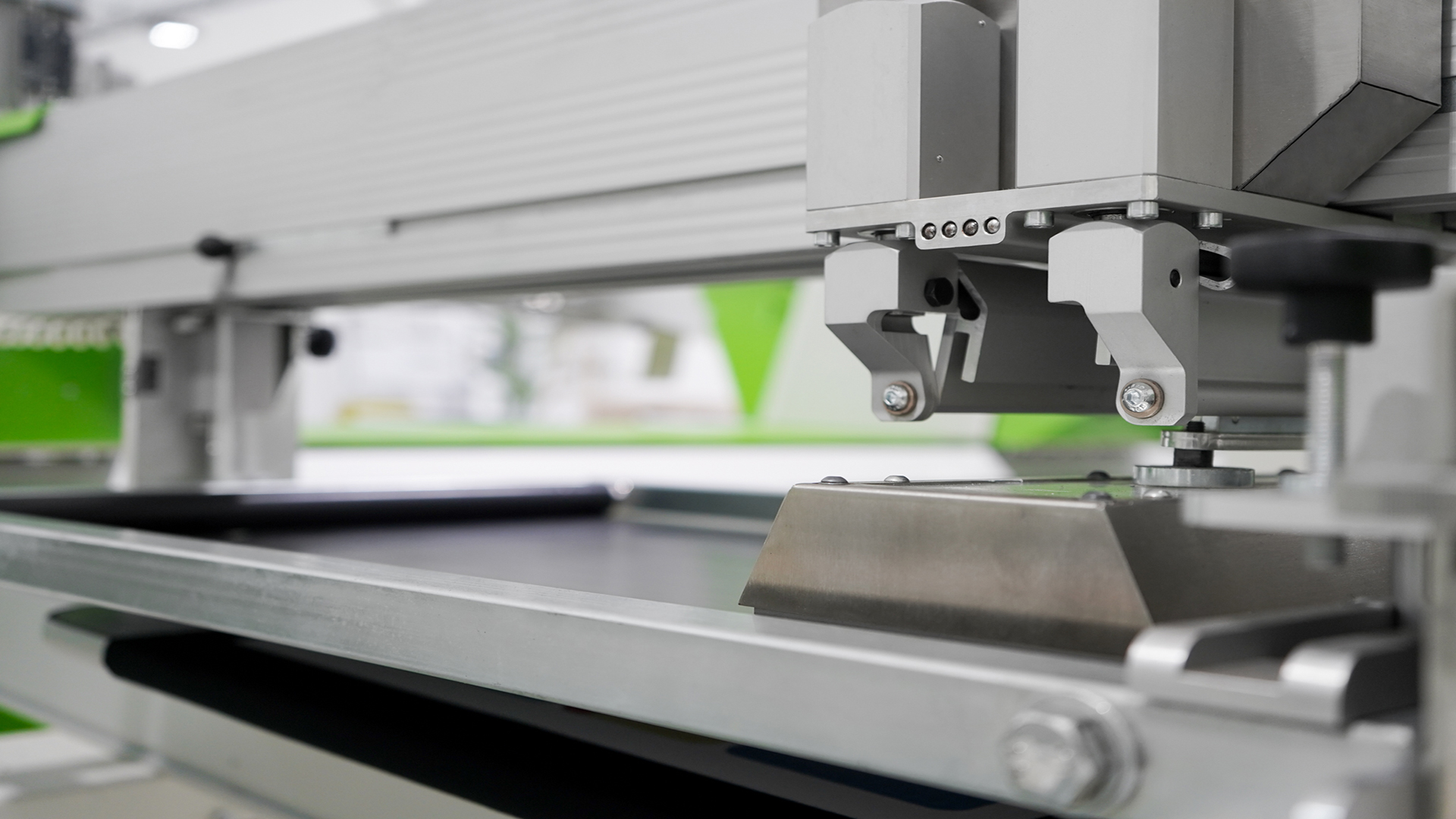

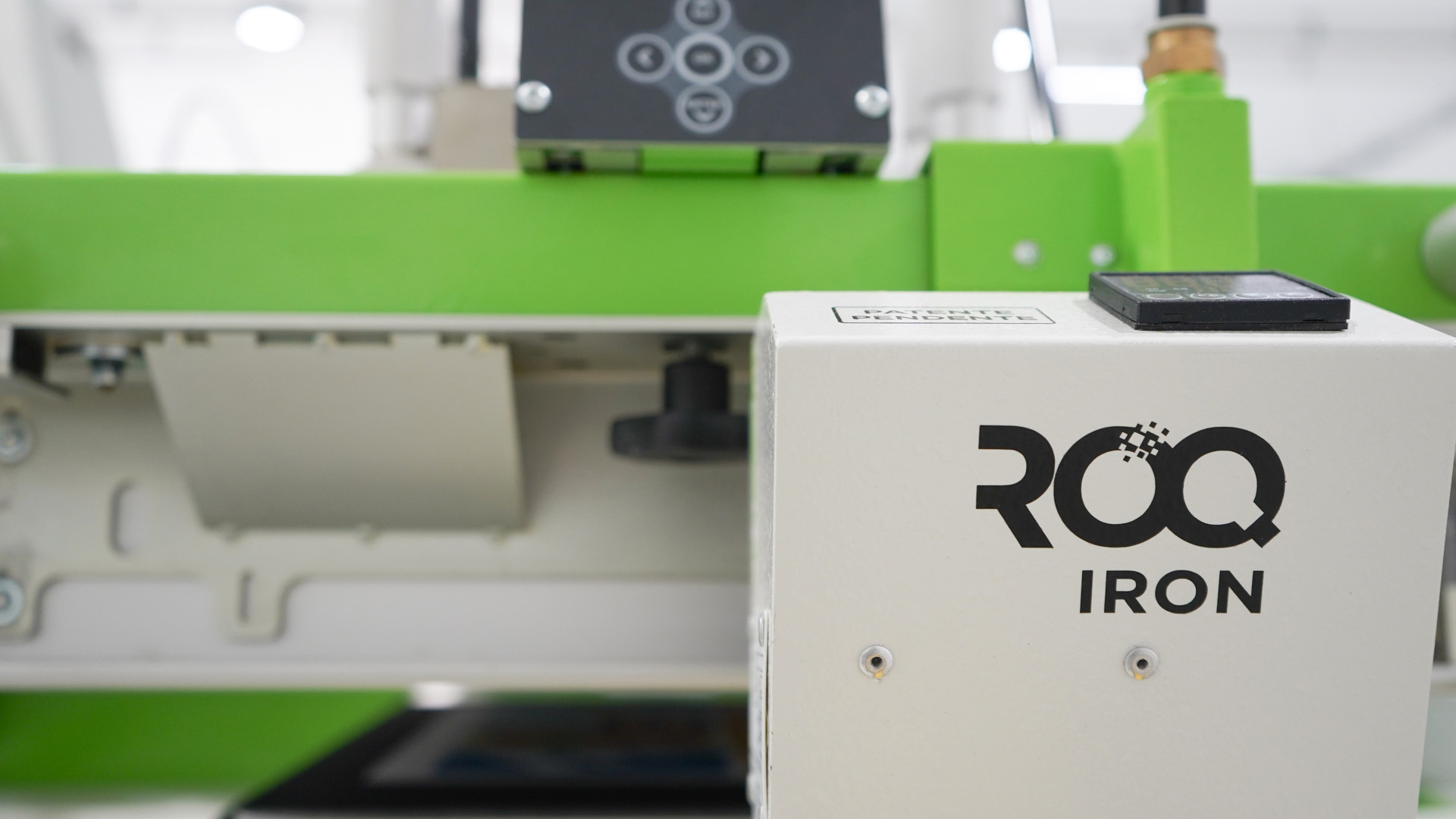

The ROQ Iron module is compatible with all automatic screen printing machines made by ROQ, whether carousel or oval machines.

The ROQ Iron not only enhances the value of your prints, it is easy to configure, works synchronously and fully automatically with your screen printing machine.

This screen printing accessory, using heat in conjunction with mechanical force, works the texture of the fabric, making it uniform. This leads to an improvement in the final quality of your print and increases the value of your work.

ROQ Iron has the ability to work with high quality in every printing shop.

ROQ IRON

M

XL

Iron (mm/pol)

400 / 16”

600 / 24”

Max. consumption (kVA)

2.2

3

Course (mm/pol)

550 / 21”

850 / 33”

Screen (mm/pol)

900 x 563 / 36” x 22”

1200 x 763 / 47” x 30”

Temperature (ºC)

200

200

Power supply (VAC)

230V+N, 2x230V
