ROQ FLOCK

ROQ Flock the flock machine of the XXI Century
ROQ has created the ROQ Flock a closed flocking station that applies flock using static electricity keeping your shop clean, with automatic application and the best quality.
Technical Specs

Compatible with ROQ YOU, ECO, Oval PRO and Oval EVOLUTION;
Closed system leading to minimum color contamination;
80kv electrostatic generator;

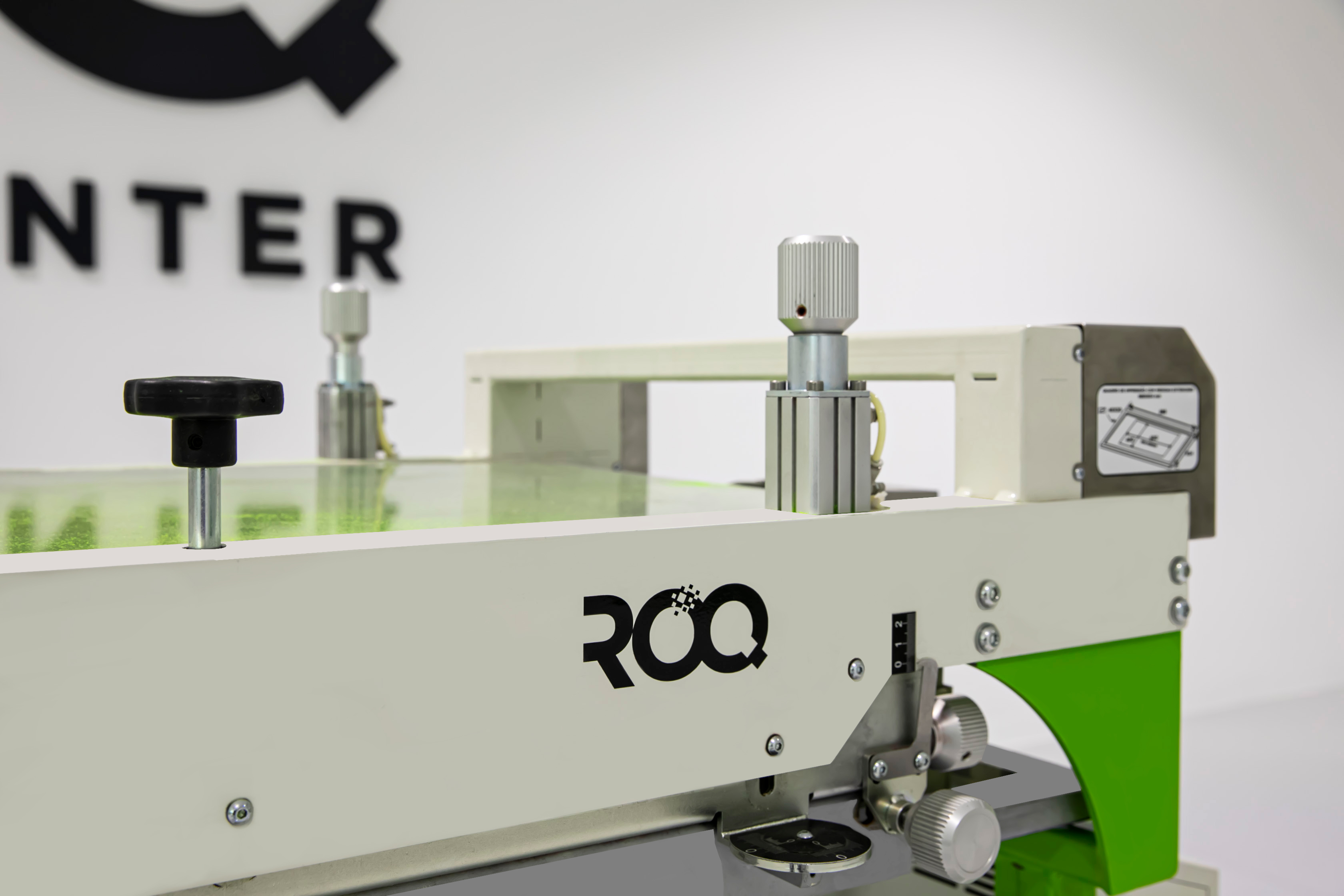

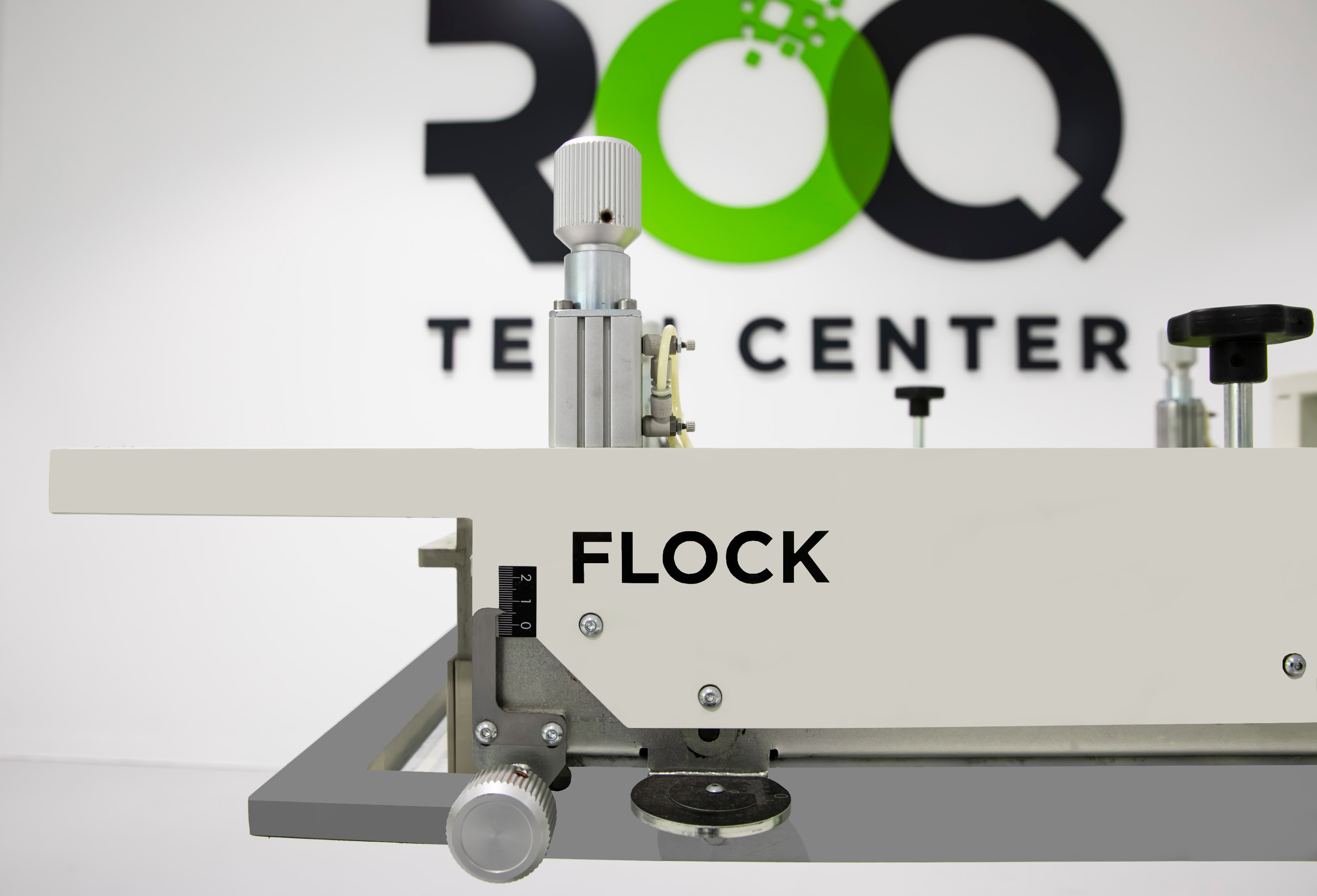

Micro registration screen system with vernier scale;
Maximum production of 600 pieces per hour.

Description

Flock is in the category of what in the screen printing world is called “special effects”. Special effects are some unusual technics applied during the screen printing process that gives the finished product a different look, feeling, and touch. This is a way of increasing dramatically the value of a piece. Some examples of these technics are glitter, the 3D, the foil, and in this specific case the flock.

To flock a piece of clothing is the process of depositing many small fiber particles (called flock) onto a surface. Flocking an article increases its value in terms of tactile sensation, aesthetics, color, and appearance.

The application of flock is done on an adhesive-coated textile surface. This is usually done by the application of a high-voltage electric field. The flock is given the negative charge whilst the substrate is earthed. This makes the flock material drop vertically onto the substrate attaching itself to the previously glued surface.

The majority of flocking done worldwide uses finely cut natural or synthetic fibers. A flocked finish imparts a decorative and/or functional characteristic to the surface.

The traditional method generates enormous amounts of waste. The print shops became the color of the flock being used. And it is also a material harsh to be inhaled. Well, that is until the ROQ Flock came to the market. This is a patented system, by ROQ, that applies Flock with flawless precision and accuracy.

It reduces contamination of color to a level of it becoming insignificant and it makes the Flock application a super clean process.

In the past, this could have been a complicated process. These days with the ROQflock it is just another screen in your ROQ screen printing machine. The ROQflock is synchronized with the central system of the screen printing machine and it runs without the need of an operator saving the labor cost. The operator of the machine just needs to make sure the ROQflock does not run out of flock.

This system is so versatile that we have done in fairs four-color process just in flock! And now you can too.

ROQ FLOCK

4060

4595

6085

Flock type (recommended)

polyamide

Flock’s length (mm) - thickness (inch)

0.5 - 1.5 (3.3 dtex)

High tension power supply (kV)

10-80

Flocking area (mm/inch)

400 x 600 / 16” x 24”

450 x 950 / 18” x 37”

600 x 850 / 24” x 33”

Maximum frame size (mm/inch)

604 x 988 / 24” x 39”

654 x 1338 / 26” x 53”

804 x 1238 / 32” x 49”

Rec. frame profile (mm/inch)

40 x 20 / 1.6” x 0.8”

40 x 20 / 1.6” x 0.8”

40 x 20 / 1.6” x 0.8”

Total length (mm/feet)

1300 / 4.25’

1350 / 5.4’

1550 / 5.1’

Total height (mm/feet)

1230 / 4’

1230 / 4’

1230 / 4’

Total width (mm/feet)

760 / 2.5’

810 / 2.6’

920 / 3’

Power supply (VAC)

230V+N, 2x230V

Max. consumption (kVA)

0.2
