ROQ CTS

Optimizing Your Setup Process
Technical Specs

Print head RICOH Gen 5
Resolution : 1270x1200 and 1270x2400
Available in 2 models, XL and 4XL
Clamp System compatible with ROQ's Machines (reduces setup times)
Eliminates the use of positive film
Improved setup times
ROI one to two years

Description

ROQ is bringing a new tool to your workshop in order to make your operation even more efficient and profitable than before.

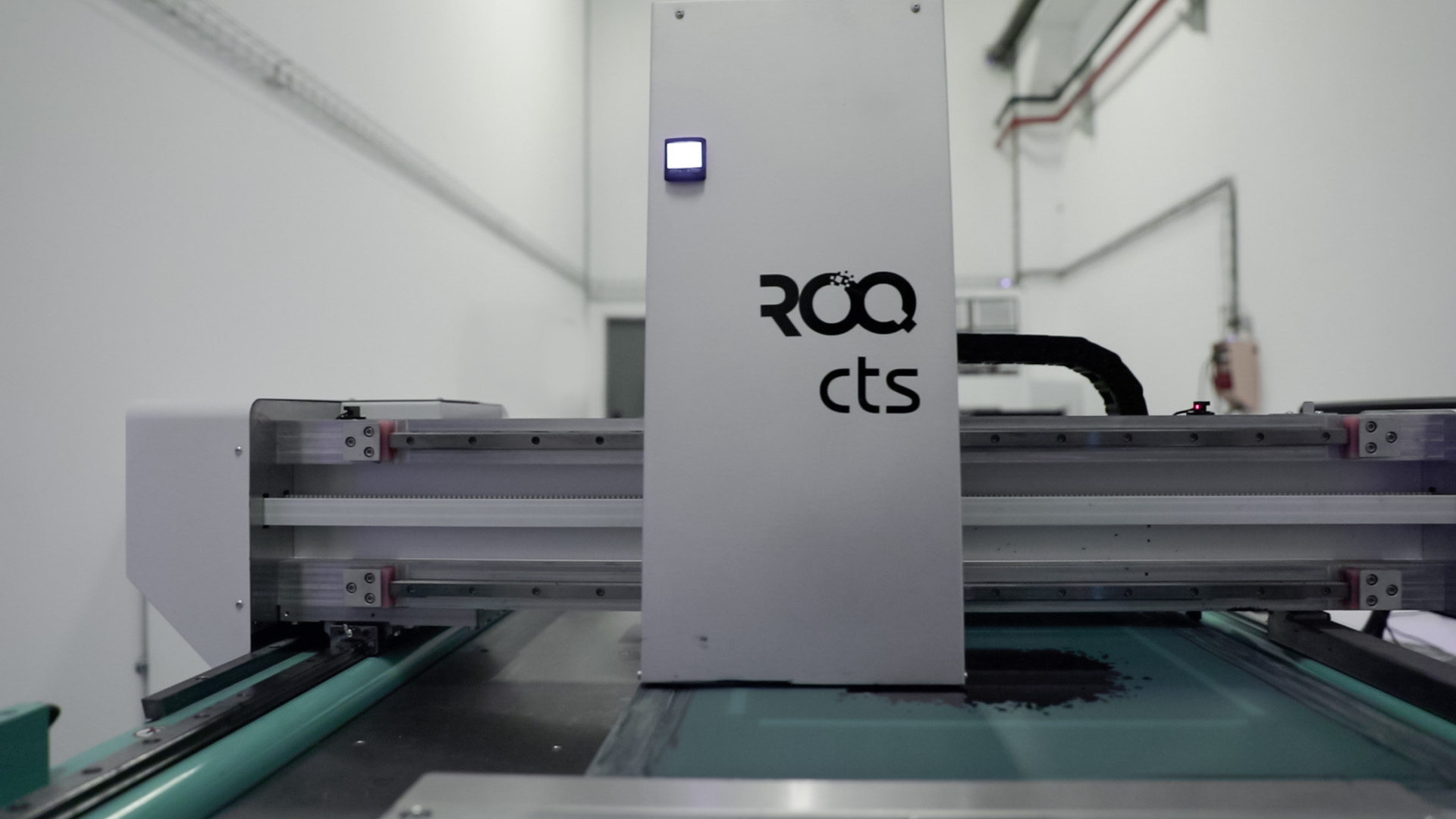

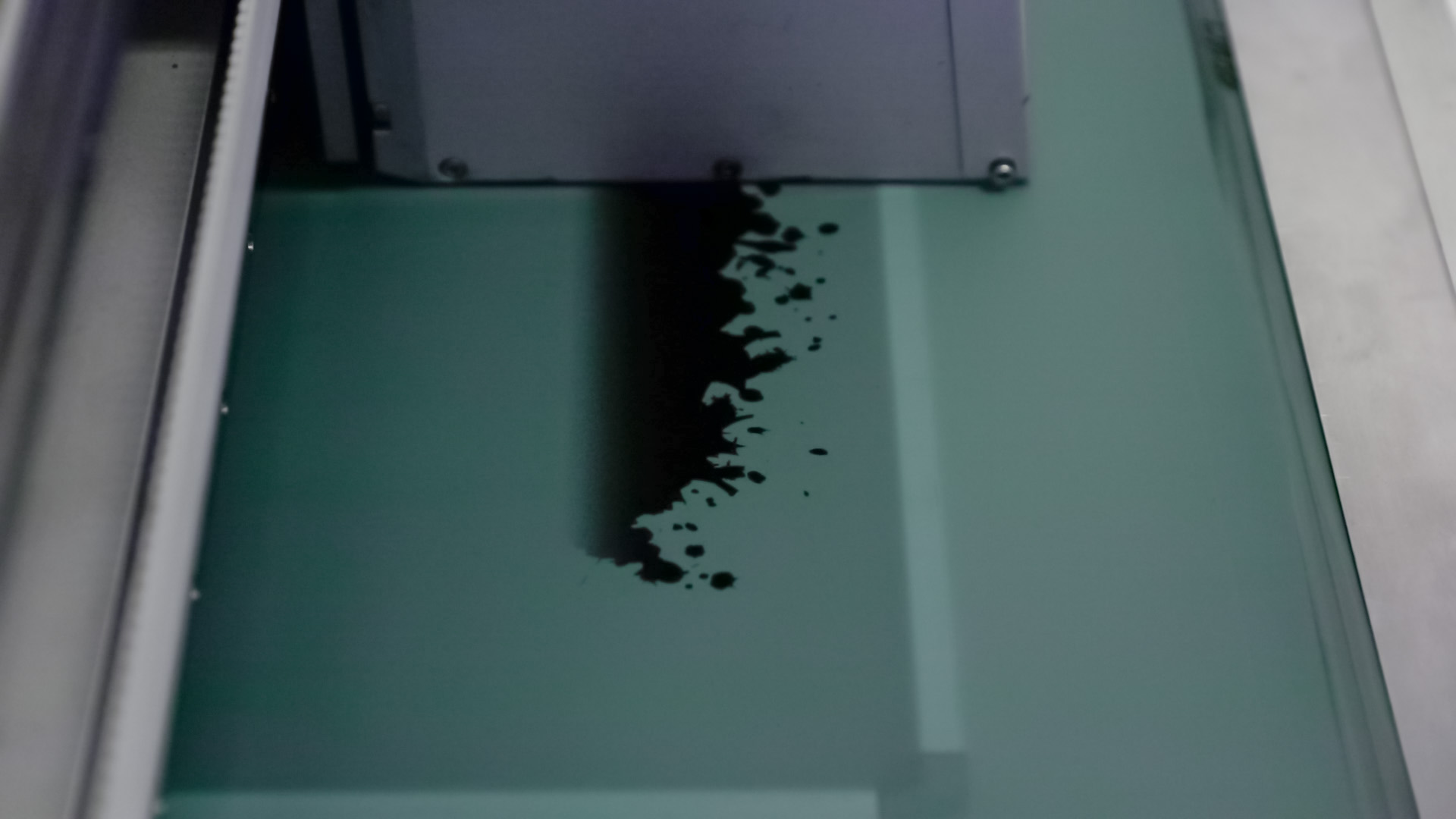

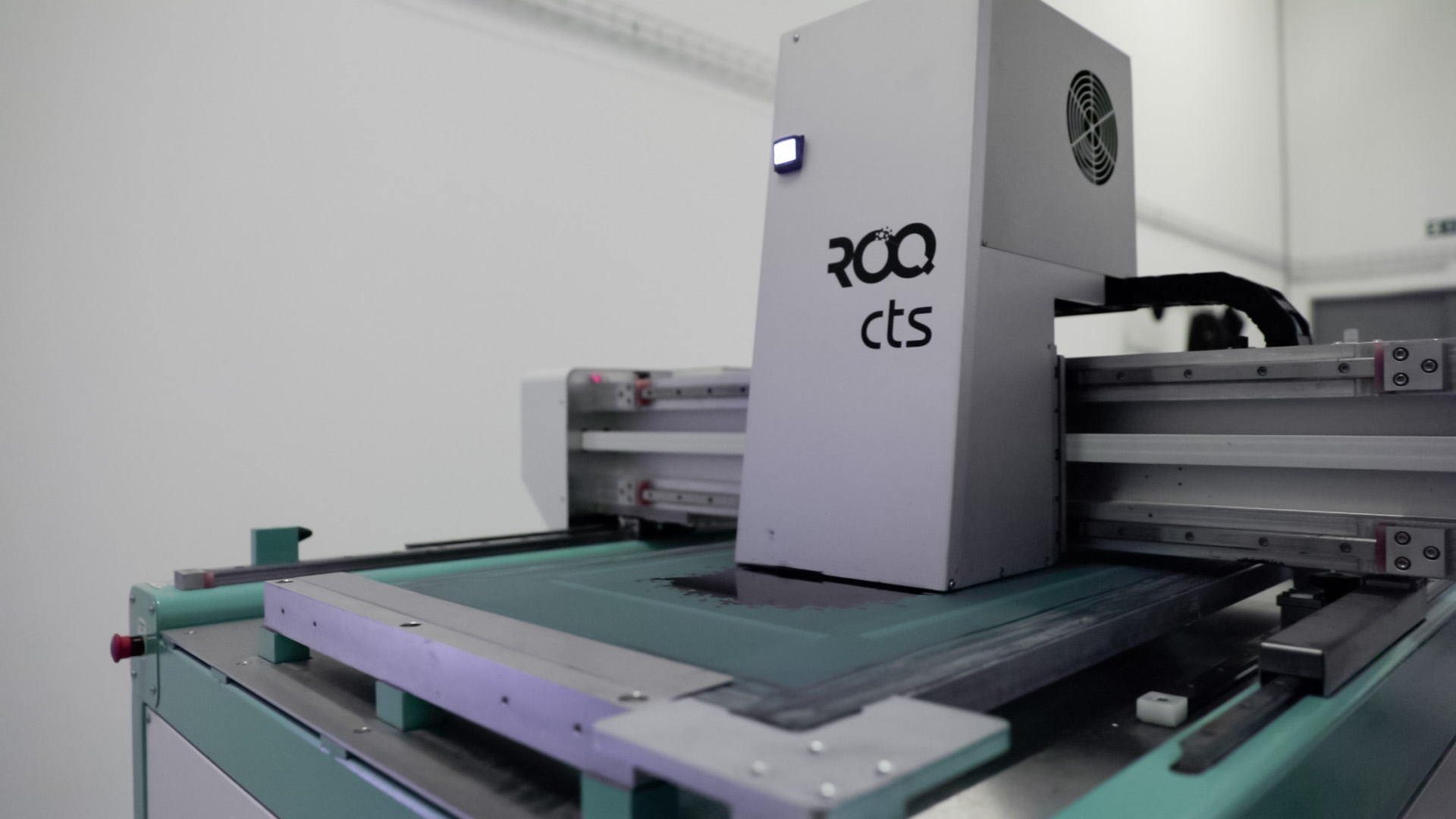

The ROQ CTS Ink is a specialized digital printer. Its function is to print screens for the screen printing process.

This machine was heavily researched by ROQ so that the end product is up to the highest quality standards. The print head was chosen with the goal of creating the highest quality product possible, the RICOH GEN5. As its main advantages, we point out the 7 Picoliter droplet size, industrial robustness, reliability, and quality.

The ROQ CTS Ink interprets the drawings from the files using the ROQ Studio powered by NeoStampa. The resolution that will be most commonly used is 1270×1200, however, the machine has the capability to boost its resolution up to an impressive 1270×2400.

The ROQ CTS Ink is available in two models, the XL model 660x1050mm or the 4XL model 1100x1600mm.

On top of the mentioned advantages, your team will save a ton of time during the setup of any screen-printing job.

By saving the positive film and all the associated costs of the traditional process, a medium size workshop will have the ROI between one up to two years.

ROQ CTS

XL

4XL

Maximum measure of the screen - mm (inch)

660 x 1050 (25.9” x 41.3”)

1100 x 1600 (43.3” x 63”)

Maximum print area - mm (inch)

500 x 700 (19.7” x 27.6”)

950 x 1250 (37.4” x 49.2”)

Maximum print resolution - dpi

1270 x 2400

1270 x 2400

Printhead resolution - dpi

600

600

Compressed air consumption - l/hour

20*

20*

Maximum consumption - kVa

2,5

2,5

Lenght - mm (inch)

1950 (76.8”)

2570 (101.1”)

Height - mm (inch)

1446 (57”)

1446 (57”)

Width - mm (inch)

1289 (50.7”)

1728,5 (68”)

Weight - kg

400

550

Power supply (VAC)

230V+N, 2x230V
